STEERING STEM
GS1000G 1981 (X) GENERAL EXPORT (E01)

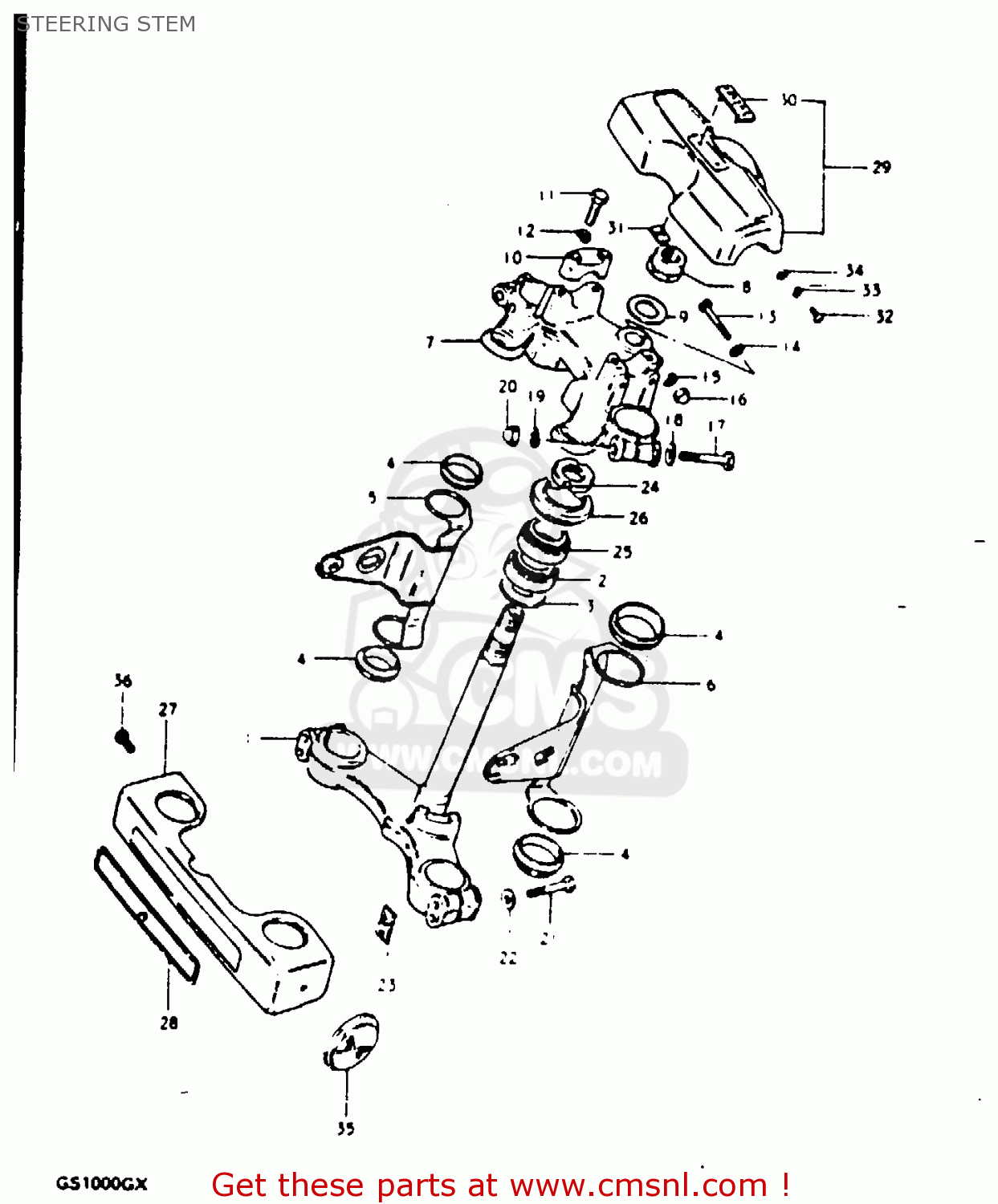

Steering stem diagram GS1000G 1981 (X) GENERAL EXPORT (E01)
STEERING STEM GS1000G 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5141049071
ref: 1
STEM,STEERING
€ 297.50
2
0926530005
ref: 2
BEARING
€ 49.50
3
0821130402
ref: 3
WASHER,THRUST
€ 4.00
4
5155349000
ref: 4
CUSHION,HEADLAMP BRACKET
€ 4.50
5
5153045100291
ref: 5
BLACK
BRACKET,HEADLAMP,RIGHT
€ 132.50
6
5154045100291
ref: 6
BLACK
BRACKET,HEADLAMP,LEFT
€ 61.00
7
5131149000291
ref: 7
BLACK
HEAD,STEERING STEM
€ 157.00
8
5135345000
ref: 8
NUT,FR FORK UPR BRACKET
€ 10.50
9
5135631700
ref: 9
WASHER
€ 9.50
10
5621129320291
ref: 10
BLACK
HOLDER,HANDLE(BLACK)
€ 12.00
11
0110708358
ref: 11
BOLT
€ 3.50
12
0832121088
ref: 12
LOCK WASHER
€ 2.00
13
0110708508
ref: 13
BOLT 8X50
€ 3.00
14
0832221088
ref: 14
WASHER
€ 2.00
15
0832121088
ref: 15
LOCK WASHER
€ 2.00
16
0831311088
ref: 16
NUT
€ 2.50
17
0110710558
ref: 17
BOLT 10X55
€ 3.50
18
0832221108
ref: 18
WASHER
€ 2.50
19
0832121108
ref: 19
LOCK WASHER
€ 2.00
20
0831311108
ref: 20
NUT, LOWER LH
€ 2.50
21
0110708558
ref: 21
BOLT 8X55
€ 3.00
22
0832221088
ref: 22
WASHER
€ 2.00
23
5145849000
ref: 23
NUT,FR FORK INNER TUBE
€ 5.00
24
5163128000
ref: 24
NUT,STEERING STEM(25X44X10)
€ 12.50
25
0926525008
ref: 25
TAPER,ROLLER BEARING
€ 48.50
26
5164349001
ref: 26
DUST SEAL,STEERING,UPPER
€ 7.50
27
5187145100
ref: 27
COVER,FRONT FORK
€ 44.00
28
6821145100
ref: 28
EMBLEM
€ 26.50
29
5617045100
ref: 29
PAD,HANDLEBAR
€ 29.50
30
6828145100
ref: 30
EMBLEM,HANDLE COVER PAD
€ 14.00
31
0914803002
ref: 31
NUT
€ 3.00
32
0211205108
ref: 32
SCREW
€ 2.00
33
0832121058
ref: 33
LOCK WASHER
€ 2.00
34
0832221058
ref: 34
WASHER
€ 2.50
35
3595049080
ref: 35
REFLEX REFLECTOR,RR
€ 17.50
36
NOTUSED
ref: 36
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
