REAR COMBINATION LAMP (E34)

GS1000G 1981 (X) GENERAL EXPORT (E01)

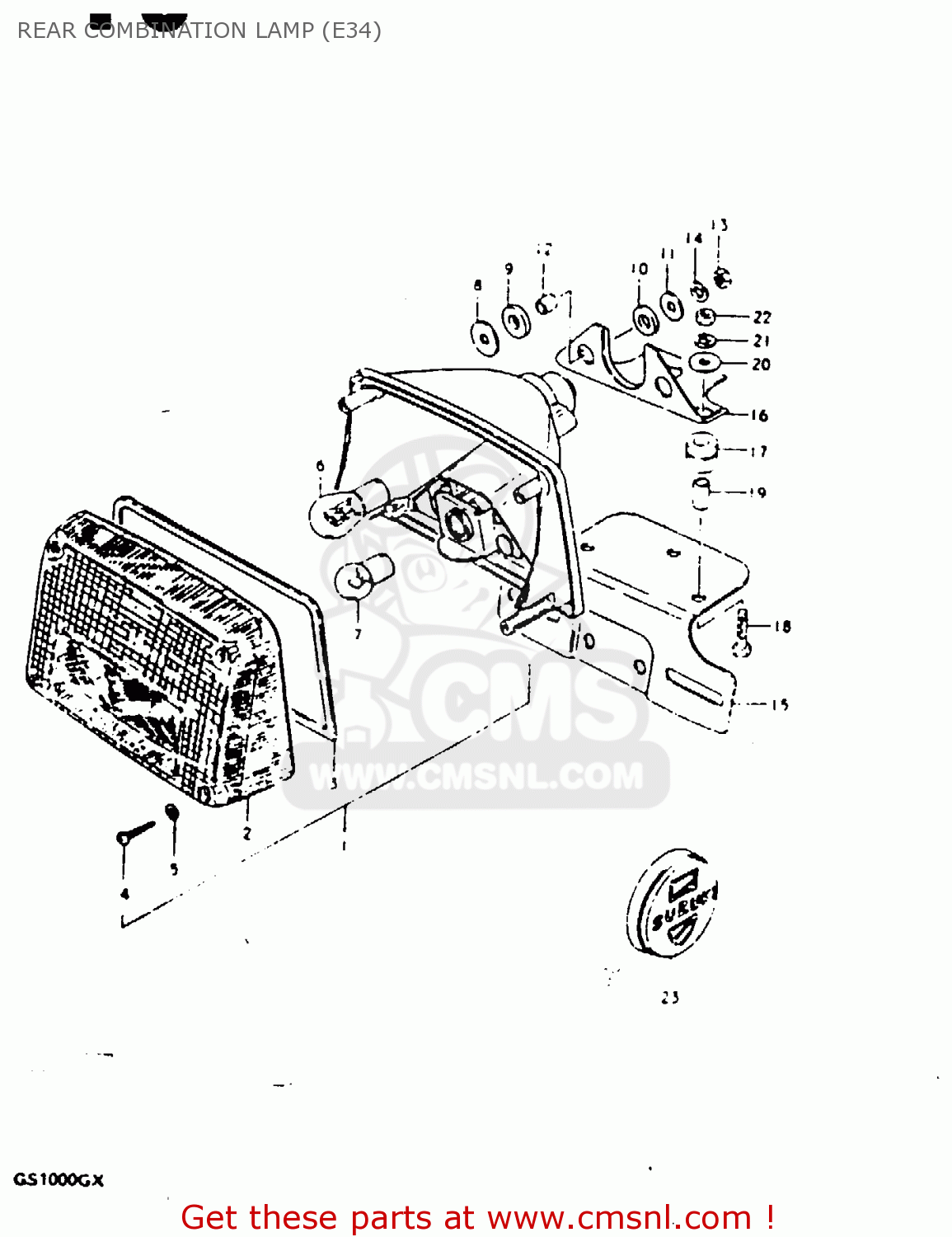

Rear combination lamp (e34) diagram GS1000G 1981 (X) GENERAL EXPORT (E01)

REAR COMBINATION LAMP (E34) GS1000G 1981 (X) GENERAL EXPORT (E01)

REAR COMBINATION LAMP (E34) GS1000G 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3571049062999
ref: 1

LAMP, REAR COMBINATION

€ 178.00

2

3571249062
ref: 2

LENS

€ 49.00

3

3571349030
ref: 3

GASKET (NAS)

€ 12.50

4

3562549030
ref: 4

BOLT

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112046
ref: 6
EXECUTED LOCALLY

BULB(12V21/5W)

€ 1.50

7

0947112059
ref: 7
EXECUTED LOCALLY

BULB

€ 4.00

8

0916006007
ref: 8

WASHER

€ 2.00

9

0932009004
ref: 9

CUSHION

€ 2.50

10

0932009003
ref: 10

CUSHION

€ 2.00

11

0916006012
ref: 11

WASHER(6,5X22X1.6)

€ 2.00

12

0918006038
ref: 12

SPACER(6.1X9X7.5)

€ 2.00

13

0831011068
ref: 13

NUT

€ 2.50

14

0832121068
ref: 14

LOCK WASHER

€ 2.50

15

3592749091
ref: 15

BRACKET, LICENCE PLATE

€ 13.00

16

3592849031
ref: 16

BRACKET,LICENSE PLATE

€ 6.50

17

3579449000
ref: 17

CUSHION, BRACKET

€ 18.00

18

0110706258
ref: 18

BOLT

€ 2.00

19

0918006087
ref: 19

SPACER (6.4X9X15.5)

€ 4.00

20

0916006007
ref: 20

WASHER

€ 2.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0831011068
ref: 22

NUT

€ 2.50

23

3599249000
ref: 23

EMBLEM, REAR SIDE

€ 14.00
