GEAR SHIFTING
GS1000G 1981 (X) GENERAL EXPORT (E01)

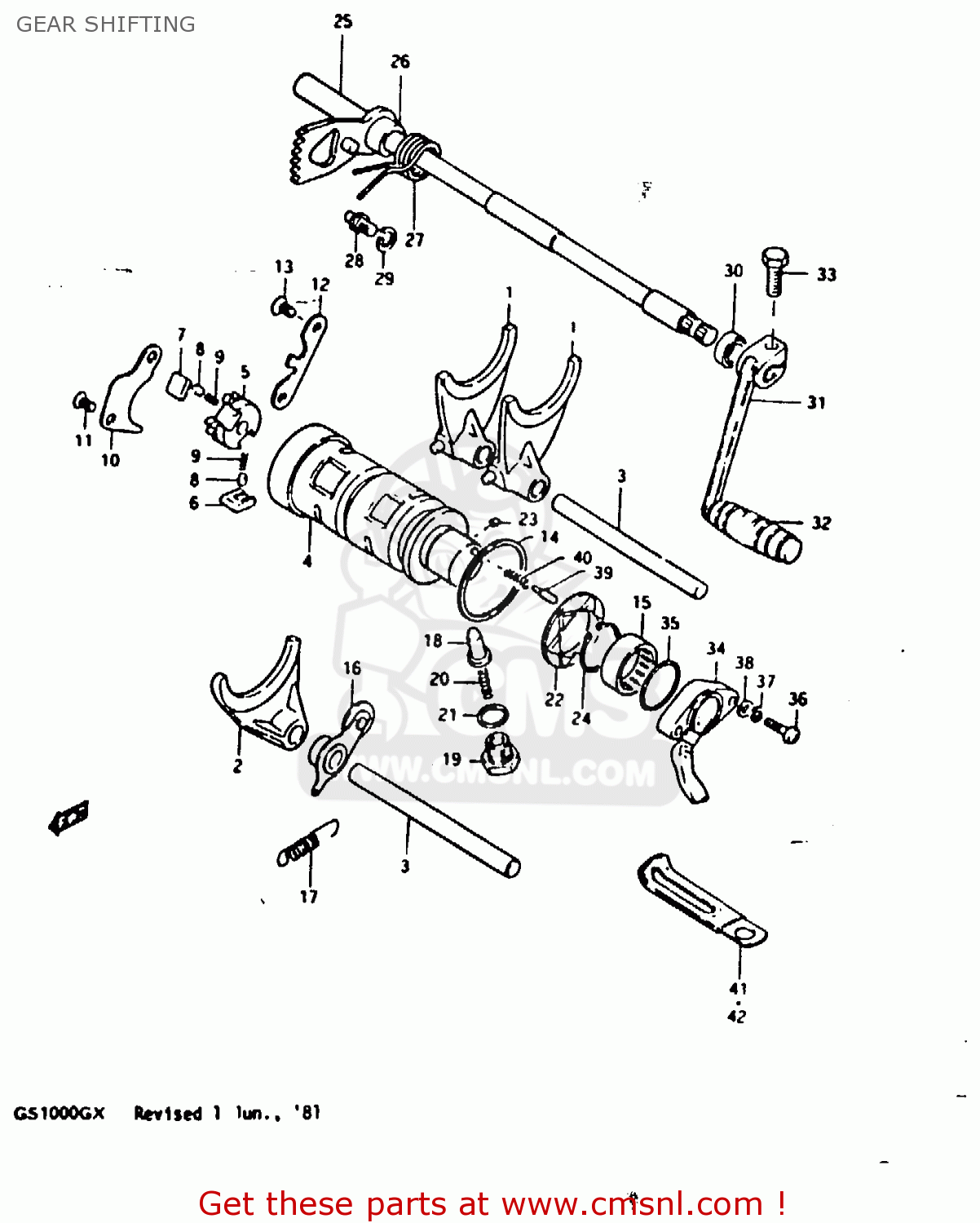

Gear shifting diagram GS1000G 1981 (X) GENERAL EXPORT (E01)
GEAR SHIFTING GS1000G 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
2521134000
ref: 1-1
4TH & 5TH, MODEL T
FORK,GEAR SHIFT NO.1
€ 54.50
1-2
2521149200
ref: 1-2
4TH & 5TH, MODEL X
FORK,GEAR SHIFT NO.1
€ 87.00
2
2523145100
ref: 2
3RD
FORK,GEAR SHIFT NO.3
€ 43.50
3
2541131000
ref: 3
SHAFT,GEAR SHIFT FORK
€ 14.50
4
2531045101
ref: 4
CAM,GEAR SHIFT
€ 209.00
5
2532211000
ref: 5
RETAINER,GEAR SHIFT CAM
€ 14.50
6
2532311000
ref: 6
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
€ 1.50
9
0944004003
ref: 9
SPRING
€ 1.50
10
2533111001
ref: 10
LIFTER,GEAR SHIFT PAWL
€ 2.50
11
0212206128
ref: 11
SCREW
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
€ 51.50
13
0212206128
ref: 13
SCREW
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
€ 2.50
15
0926325018
ref: 15
BEARING(25X32X12)
€ 17.50
16
2535045100
ref: 16
STOPPER,GEAR SHIFTING
€ 9.50
17
0944309006
ref: 17
SPRING
€ 2.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
20-1
0944006018
ref: 20-1
MODEL T
SPRING
€ 1.50
20-2
0944006020
ref: 20-2
MODEL X
SPRING
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
22-1
2538145000
ref: 22-1
MODEL T
PLATE,GEAR SHIFT CAM STOPPER
€ 14.00
22-2
2538145400
ref: 22-2
MODEL X
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
23
0621104063
ref: 23
PIN 4X6
€ 2.00
24
0833111258
ref: 24
CIRCLIP
€ 2.00
25
2551045100
ref: 25
TO 25510-45101 WITH
SHAFT,GEAR SHIFT
€ 51.50
26
0918012090
ref: 26
SPACER (12X20X12)
€ 9.00
27-1
0944426012
ref: 27-1
MODEL T
SPRING
€ 3.50
27-2
0944426017
ref: 27-2
MODEL X
SPRING
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0916208005
ref: 29
WASHER
€ 2.00
30
0928512002
ref: 30
OIL SEAL
€ 7.00
31
2560045100
ref: 31
LEVER ASSEMBLY,GEAR SHIFTING
€ 52.50
32
2565216500
ref: 32
RUBBER,GEAR SHIFT PEDAL
€ 4.00
33
0110708208
ref: 33
BOLT
€ 3.00
34
3772045100
ref: 34
TERMINAL BASE ASSY,GEAR SHIFT
€ 92.50
35
0928026003
ref: 35
O-RING (D:2.4 ID:26.2)
€ 2.50
36
0211205208
ref: 36
SCREW 5X20
€ 3.00
37
0832121058
ref: 37
LOCK WASHER
€ 2.00
38
0832221058
ref: 38
WASHER
€ 2.50
39
0920905011
ref: 39
PIN(5X15.5)
€ 2.00
40
0944004010
ref: 40
SPRING
€ 1.50
41
0940406401
ref: 41
CLAMP L:35
€ 2.50
42
0940408401
ref: 42
CLAMP
€ 3.50
