HEADLAMP (E17, E18, E21, E22, E25, E26, E34, E39)

GS1000G 1981 (X) GENERAL EXPORT (E01)

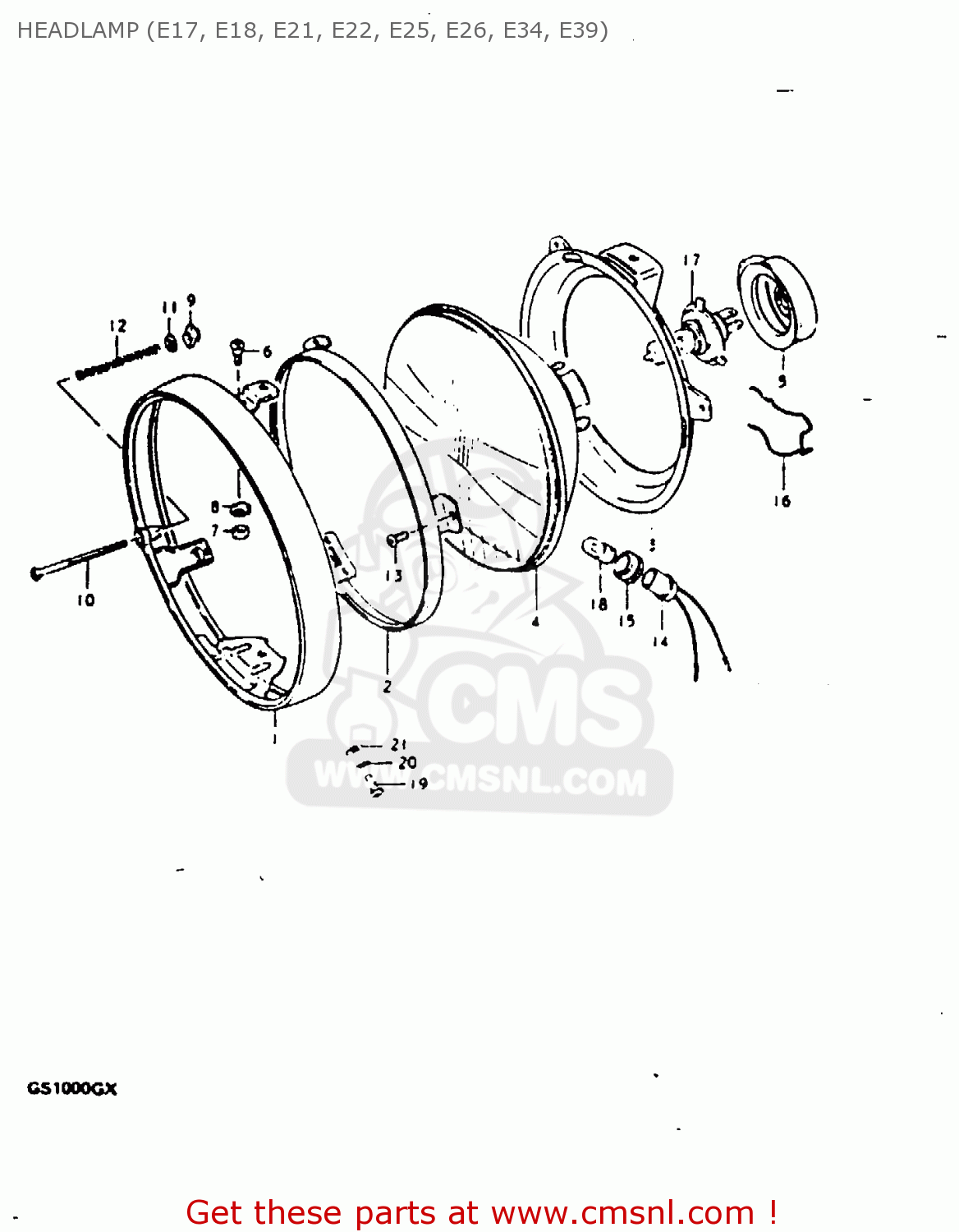

Headlamp (e17, e18, e21, e22, e25, e26, e34, e39) diagram GS1000G 1981 (X) GENERAL EXPORT (E01)

HEADLAMP (E17, E18, E21, E22, E25, E26, E34, E39) GS1000G 1981 (X) GENERAL EXPORT (E01)

HEADLAMP (E17, E18, E21, E22, E25, E26, E34, E39) GS1000G 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

3510049020999
ref: 0

HEADLAMP ASSY

€ 208.00

1

3511145600
ref: 1

RIM

€ 57.50

2

3512745600
ref: 2

RETAINER

€ 39.00

3

3513045600
ref: 3

RING,HEADLAMP UNIT

€ 35.00

4

3512149020
ref: 4

UNIT,HEAD LAMP

€ 136.00

5

3517349020
ref: 5

COVER,HEADLAMP SOCKET

€ 14.00

6

3513625611
ref: 6

SCREW

€ 4.00

7

3513525611
ref: 7

NUT,ADJUSTING

€ 2.50

8

3513345600
ref: 8

SPACER

€ 3.50

9

3513545600
ref: 9

NUT

€ 3.00

10

3515127630
ref: 10

SCREW,HEADLAMP ADJUST

€ 3.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3515445600
ref: 12

SPRING,HEADLAMP ADJUST

€ 3.50

13

0211203088
ref: 13

SCREW

€ 1.50

14

3611830691
ref: 14

SOCKET

€ 12.00

15

3611622630
ref: 15

JOINT,RUBBER

€ 5.00

16

3517249020
ref: 16

CLAMP,HEADLAMP SOCKET

€ 3.50

17

0947112060
ref: 17
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

18

0947112063
ref: 18
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

19

0912505022
ref: 19

SCREW

€ 3.50

20

0916205003
ref: 20

WASHER,LOCK

€ 2.00

21

0916906021
ref: 21

WASHER

€ 2.50
