CYLINDER

GS1000G 1981 (X) GENERAL EXPORT (E01)

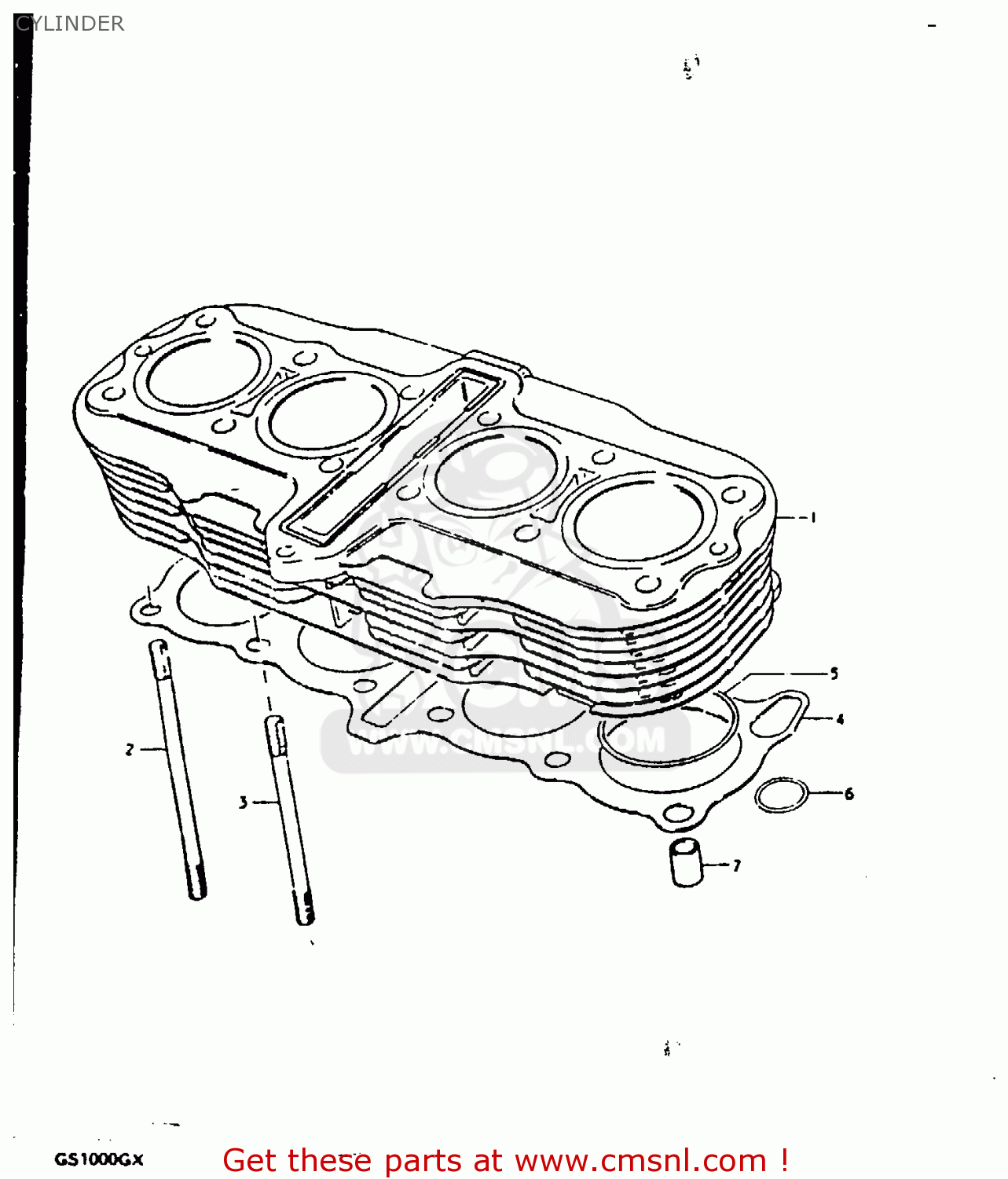

Cylinder diagram GS1000G 1981 (X) GENERAL EXPORT (E01)

CYLINDER GS1000G 1981 (X) GENERAL EXPORT (E01)

CYLINDER GS1000G 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1121049003
ref: 1
FROM 11210-49002

CYLINDER

€ 891.00

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3

STUD

€ 9.00

4

1124149010
ref: 4

GASKET,CYLINDER (MCA)

€ 56.50

5

0928074002
ref: 5

O RING(D:2,ID:74)

€ 6.00

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

7

0920613001
ref: 7

PIN

€ 2.50
