FRAME
GS1000G 1981 (X) GENERAL EXPORT (E01)

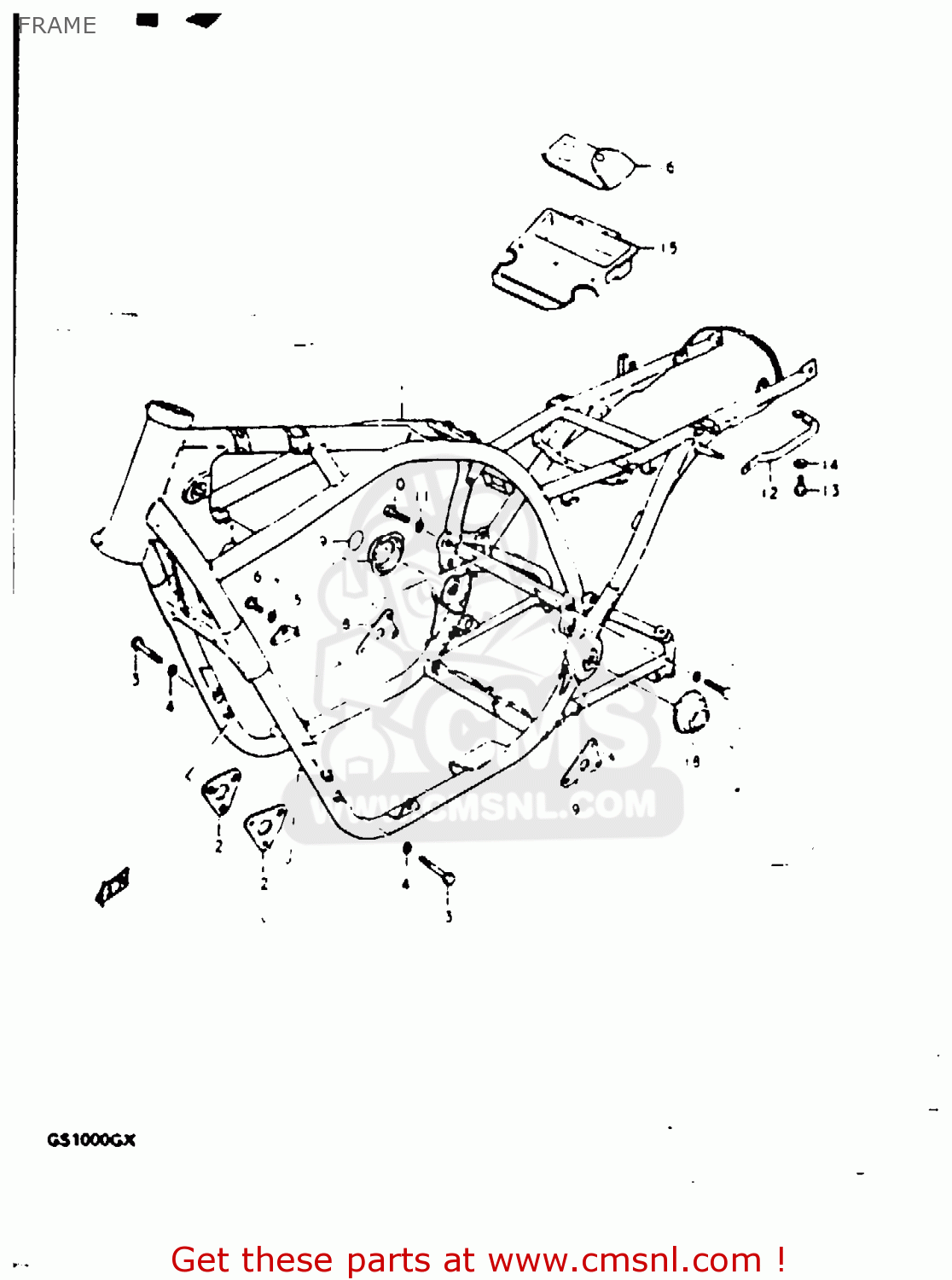

Frame diagram GS1000G 1981 (X) GENERAL EXPORT (E01)
FRAME GS1000G 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110045101019
ref: 1-1
FRAME
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
4191045100019
ref: 2
PLATE,ENGINE MOUNTING
€ 8.50
3
0110708658
ref: 3
BOLT
€ 3.00
4
0832121088
ref: 4
LOCK WASHER
€ 2.00
5
419945000019
ref: 5
PLATE, NO.2 (BLACK)
€ 0.00
6
0110708168
ref: 6
BOLT
€ 2.00
7
0832121088
ref: 7
LOCK WASHER
€ 2.00
8
4197045100019
ref: 8
PLATE,ENGINE MOUNTING
€ 0.00
9
4198045100019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708408
ref: 10
BOLT 8X40
€ 3.00
11
0832121088
ref: 11
LOCK WASHER
€ 2.00
12
4161049000
ref: 12
GRIP,FRAME
€ 38.50
13
0110708168
ref: 13
BOLT
€ 2.00
14
0832211088
ref: 14
WASHER
€ 2.00
15
4155145102
ref: 15
HOLDER,TOOL
€ 25.00
16
0980000199
ref: 16
*
TOOL SET
€ 43.00
17
4719145100
ref: 17
COVER,REAR SWING ARM PIVOT
€ 11.50
18-1
4729145100
ref: 18-1
MODEL T
COVER,REAR SWING ARM PIVOT
€ 13.50
18-2
4729145101
ref: 18-2
MODEL X
COVER,SWINGINGARM PIVOT,L
€ 13.50
19
6814345101
ref: 19
TAPE,REAR SWING ARM PIVOT
€ 3.50
