CYLINDER HEAD
GS1000G 1981 (X) GENERAL EXPORT (E01)

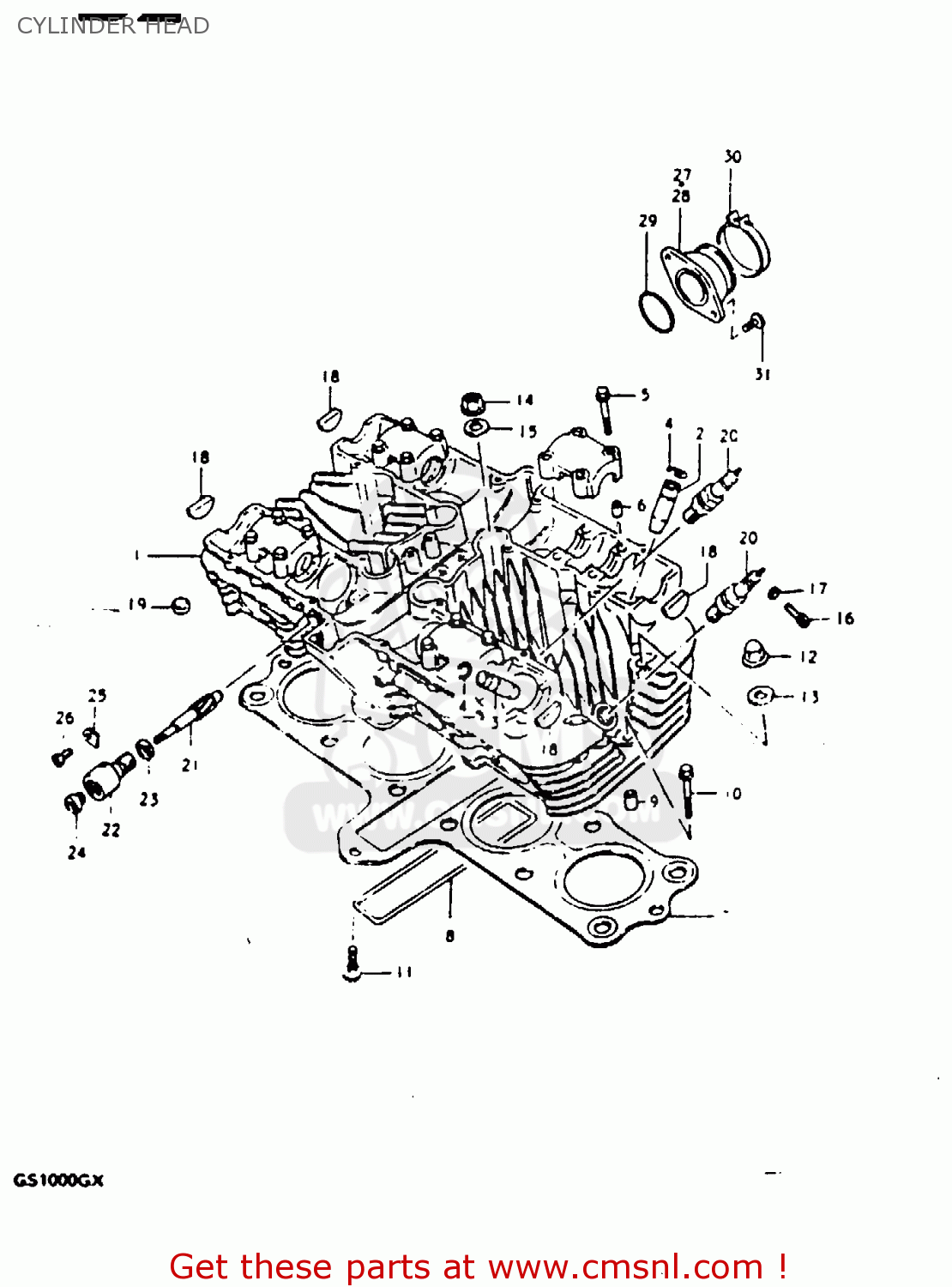

Cylinder head diagram GS1000G 1981 (X) GENERAL EXPORT (E01)
CYLINDER HEAD GS1000G 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1110049830
ref: 1
HEAD ASSEMBLY,CYLINDER
€ 1,231.50
2
1111545740
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111645740
ref: 3
GUIDE,EXHAUST VALVE
€ 27.00
4
0938110003
ref: 4
RING,SNAP
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7
1114149002
ref: 7
GASKET,CYLINDER HEAD (MCA)
€ 102.50
8
0928099003
ref: 8
O RING(D:3,ID:26X157)
€ 34.00
9
0421111189
ref: 9
PIN
€ 2.00
10
0151706458
ref: 10
BOLT,UNDER
€ 2.50
11
0151706308
ref: 11
BOLT
€ 2.00
12
0915910026
ref: 12
NUT
€ 6.00
13
0916810019
ref: 13
GASKET (NAS)
€ 3.50
14
0831616108
ref: 14
NUT
€ 2.00
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
€ 2.50
16
0910605006
ref: 16
BOLT
€ 2.00
17
0916805010
ref: 17
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
18
0924123002
ref: 18
PLUG
€ 8.50
19
1115245000
ref: 19
PAD
€ 3.50
20-1
0948200225
ref: 20-1
SPARK PLUG
€ 3.00
20-2
0948200196
ref: 20-2
SPARK PLUG W24ES-U
€ 3.50
21
2643145001
ref: 21
GEAR,TACHOMETER DRIVEN
€ 43.00
22
2644145000
ref: 22
SLEEVE,TACHOMETER DRIVE
€ 18.00
23
2645145000A
ref: 23
SEAL,TACHOMETER DRIVEN
€ 4.50
24
0928905002
ref: 24
SEAL,OIL(5X12X8)
€ 11.00
25
2644933000
ref: 25
PLATE,TACH DRIVE GEAR SLEEVE
€ 3.50
26
0912805101
ref: 26
SCREW(5X12)
€ 1.50
27
1311049100
ref: 27
PIPE,INTAKE,R
€ 42.00
28
1312049100
ref: 28
PIPE,INTAKE,L
€ 39.50
29
0928040003
ref: 29
O-RING (D:2.4 ID:39.7)
€ 3.50
30
0940254303
ref: 30
CLAMP
€ 4.00
31
0211206168
ref: 31
SCREW
€ 2.50
