AIR CLEANER (MODEL D)

GS1100E 1982 (Z) USA (E03)

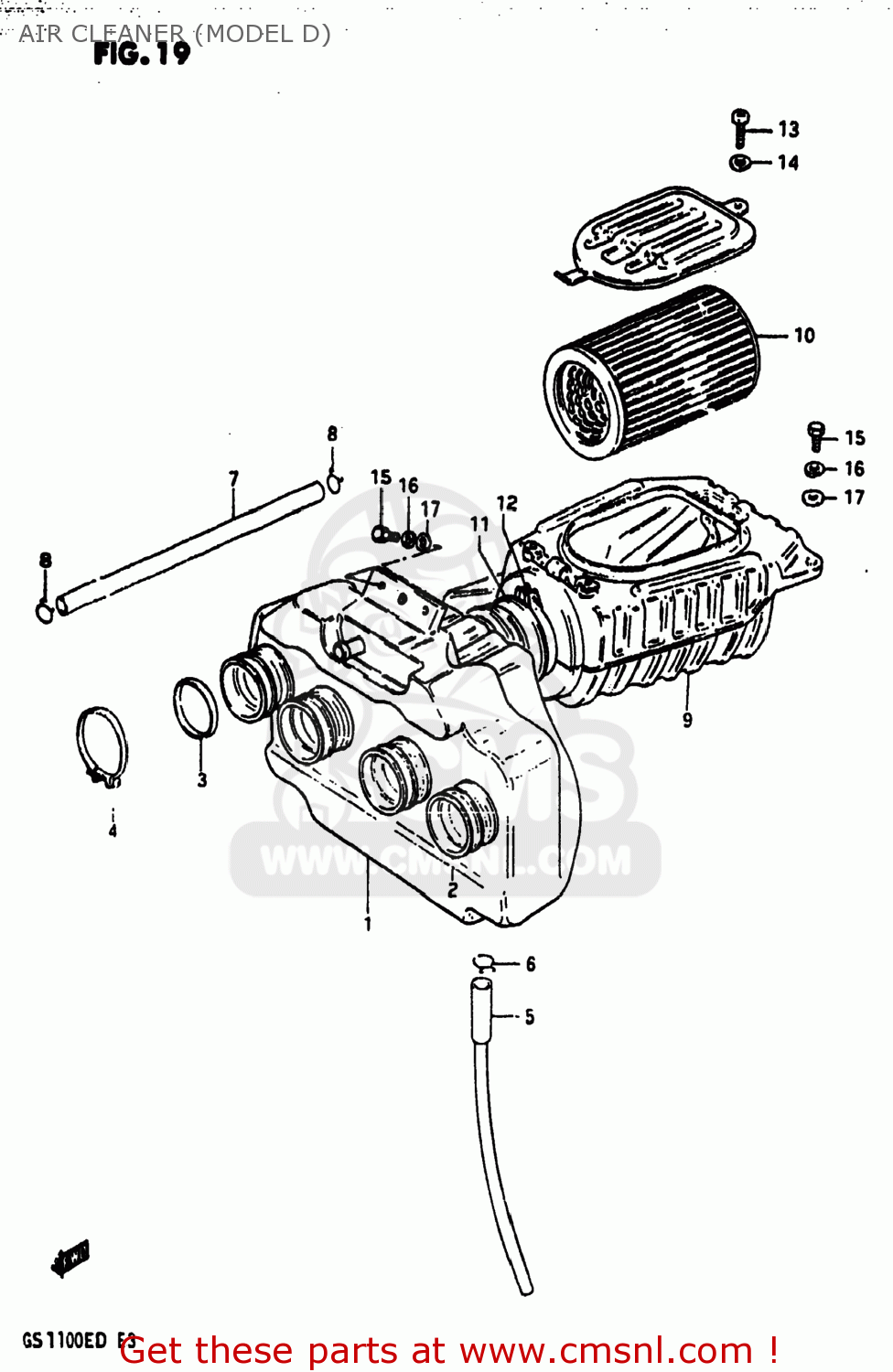

Air cleaner (model d) diagram GS1100E 1982 (Z) USA (E03)

AIR CLEANER (MODEL D) GS1100E 1982 (Z) USA (E03)

AIR CLEANER (MODEL D) GS1100E 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1371049330
ref: 1

CASE,AIR CHAMBER

€ 121.00

2

1388149020
ref: 2
13881-49021

TUBE,AIR CLEANER OUTLET

€ 16.00

3

1388547030
ref: 3

RING,CARBURETOR AIR INLET HOSE

€ 8.00

4

0940264306
ref: 4
09402-64203

CLAMP

€ 6.00

5

1387000010
ref: 5
13870-11458

DRAIN TUBE

€ 13.50

6

0940114301
ref: 6

CLIP

€ 2.00

7

0934311005
ref: 7
09352-11153-00B

HOSE

€ 30.00

8

0940114301
ref: 8

CLIP

€ 2.00

9

1370049860
ref: 9

CLEANER SET,RR AIR

€ 0.00

10

1378049310
ref: 10

FILTER ASSY

€ 29.50

11

1379549000
ref: 11

HOSE,AIR CLEANER

€ 34.50

12

1379649000
ref: 12

BAND

€ 6.00

13

0211205128
ref: 13
02112-05127

SCREW

€ 2.50

14

0832221058
ref: 14
08322-01057

WASHER

€ 2.50

15

0110706208
ref: 15
01500-06207

BOLT

€ 2.00

16

0832121068
ref: 16
08321-01067

LOCK WASHER

€ 2.50

17

0832221068
ref: 17
08322-01067

WASHER

€ 2.00
