SPEEDOMETER - TACHOMETER (GS1100EZ/ED)
GS1100E 1982 (Z) USA (E03)

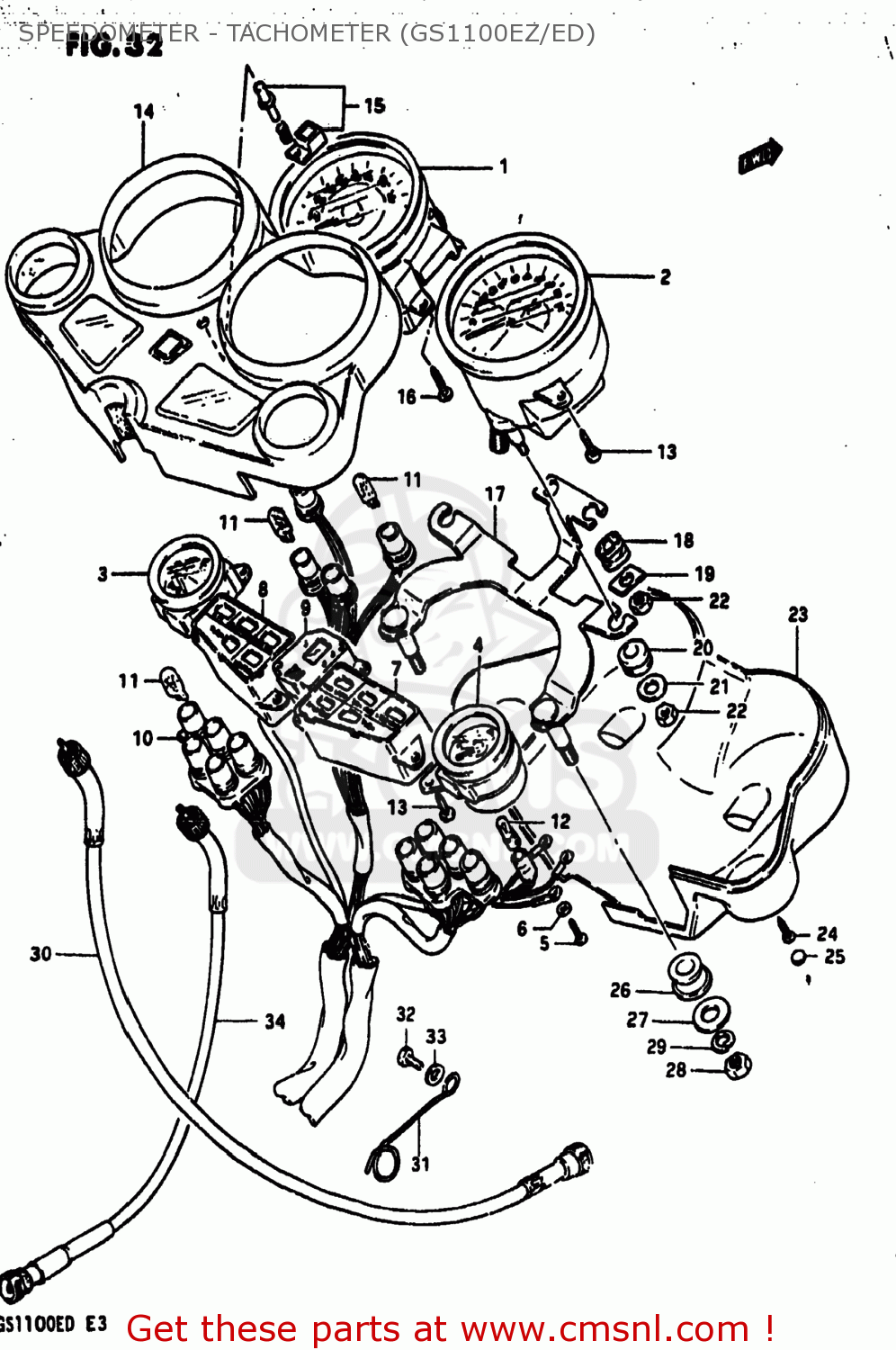

Speedometer - tachometer (gs1100ez/ed) diagram GS1100E 1982 (Z) USA (E03)
SPEEDOMETER - TACHOMETER (GS1100EZ/ED) GS1100E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411049510
ref: 1-1
34110-49511
SPEEDOMETER ASSEMBLY
€ 216.50
1-2
3411049511
ref: 1-2
METER,SPEEDOMETER/TACHOMETER
€ 216.50
2-1
3421049560
ref: 2-1
34210-49500
TACHOMETER
€ 333.50
2-2
3421049511
ref: 2-2
34210-49500
TACHOMETER
€ 333.50
3
3432045720
ref: 3
METER,FUEL
€ 81.50
4-1
3473045750
ref: 4-1
34730-45752
METER,OIL TEMPERATURE
€ 68.00
4-2
3473045751
ref: 4-2
34730-45752
METER,OIL TEMPERATURE
€ 68.00
5
0211203068
ref: 5
02112-0306B
SCREW
€ 2.00
6
0832221038
ref: 6
08322-01037
WASHER
€ 2.00
7
3633049500
ref: 7
CASE,PILOT LAMP
€ 34.50
8
3633049500
ref: 8
CASE,PILOT LAMP
€ 34.50
9
3645049500
ref: 9
INDICATOR ASSEMBLY,GEAR POSITION
€ 202.50
10
3417049500
ref: 10
SOCKET,COMBINATION METER
€ 109.50
11
0947112028
ref: 11
BULB(12V3.4W,T10)
€ 3.50
12
0947112023
ref: 12
BULB(12V2W,STANLEY,A1272J)
€ 8.50
13
0321104208
ref: 13
03211-04207
SCREW
€ 1.50
14
3415045720
ref: 14
HOOD,METER
€ 105.00
15
3412445720
ref: 15
KNOB,TRIP METER
€ 8.50
16
0321104168
ref: 16
03112-04163
SCREW
€ 1.50
17
3495045720
ref: 17
BRACKET,COMBINATION METER
€ 41.00
18
3499545720
ref: 18
CUSHION,METER
€ 3.00
19
3418245720
ref: 19
WASHER,METER
€ 3.50
20
3499645720
ref: 20
34189-32B00
CUSHION,METER
€ 5.00
21
3418130520
ref: 21
09160-05037
WASHER,METER
€ 1.50
22
0831022058
ref: 22
08310-00057
NUT
€ 2.50
23
3419345720
ref: 23
COVER,METER,UNDER
€ 62.00
24
0311104128
ref: 24
03111-0412A
SCREW
€ 1.50
25
3419845720
ref: 25
CAP,METER LOWER CASE
€ 3.50
26
3495631001
ref: 26
CUSHION,METER BRACKET
€ 4.50
27
0916008002
ref: 27
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
28
0831012088
ref: 28
08310-00087
NUT
€ 2.00
29
0832121088
ref: 29
08321-01087
LOCK WASHER
€ 2.00
30
3491045123
ref: 30
CABLE ASSY,SPEEDOMETER
€ 24.00
31
3493845100
ref: 31
CLAMP,SPEEDOMETER CABLE
€ 14.50
32
0110706168
ref: 32
01500-06167
BOLT, UPPER
€ 3.00
33
0832221068
ref: 33
08322-01067
WASHER
€ 2.00
34
3494044111
ref: 34
34940-05311
CABLE ASSEMBLY,TACHOMETER
€ 49.00
