CYLINDER

GS1100E 1982 (Z) USA (E03)

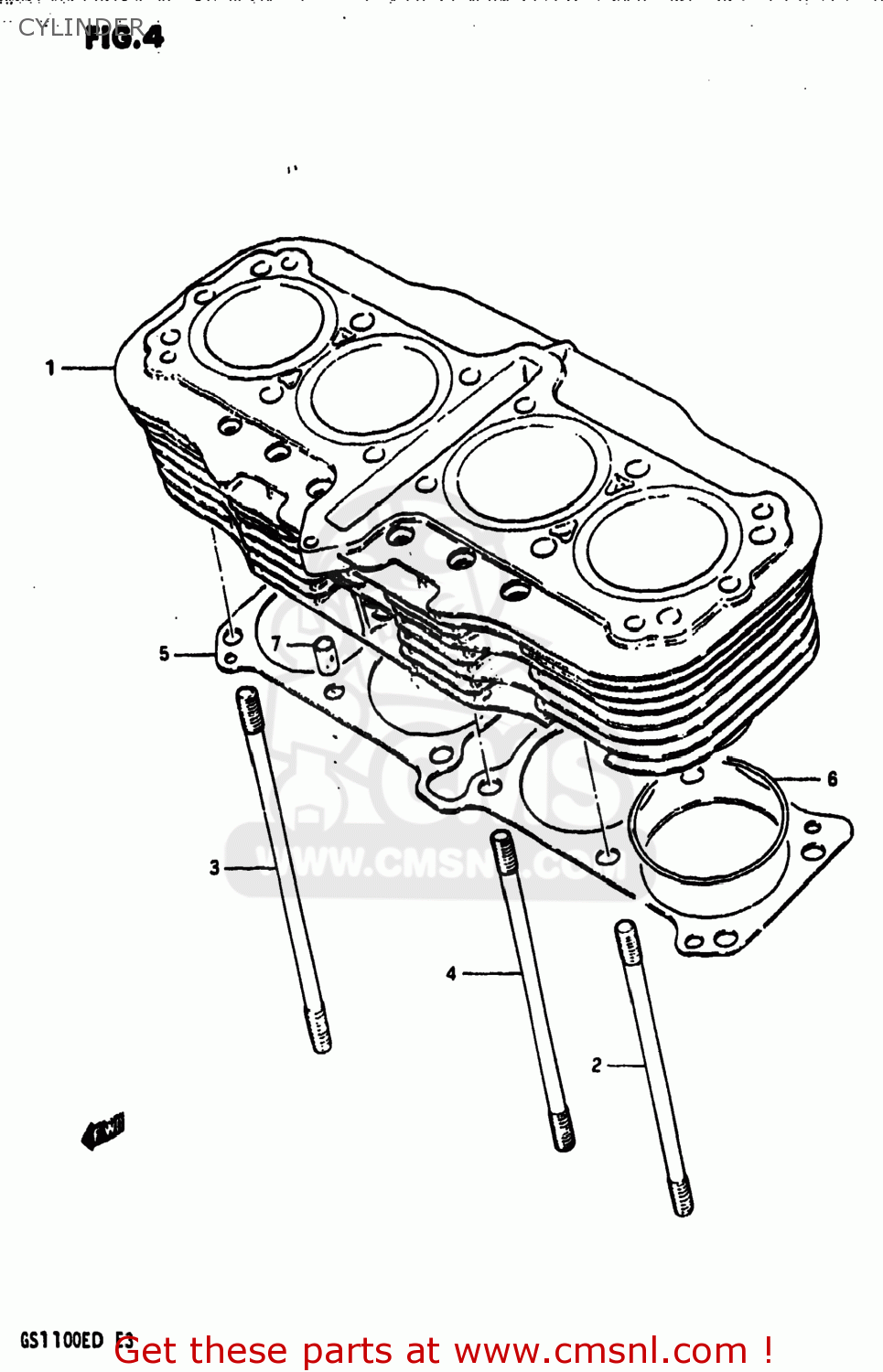

Cylinder diagram GS1100E 1982 (Z) USA (E03)

CYLINDER GS1100E 1982 (Z) USA (E03)
CYLINDER GS1100E 1982 (Z) USA (E03)
CYLINDER GS1100E 1982 (Z) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1121049220
ref: 1-1
CYLINDER
1121049220
€ 974.50
1-2
1121049230
ref: 1-2
CYLINDER
€ 945.00
2
0910810027
ref: 2
BOLT,STUD
0910810027
€ 12.00
3
0910810028
ref: 3
09108-10112
STUD
0910810028
€ 9.00
4
0910810030
ref: 4
BOLT,STUD
0910810030
€ 7.50
5
1124149200
ref: 5
11241-49200-H17
GASKET,CYLINDER (MCA)
1124149200
€ 39.00
6
0928074002
ref: 6
O RING(D:2,ID:74)
0928074002
€ 6.00
7
0920613006
ref: 7
09206-13017
PIN
0920613006
€ 9.00
