STARTING MOTOR (GS1100 ESD)

GS1100E 1982 (Z) USA (E03)

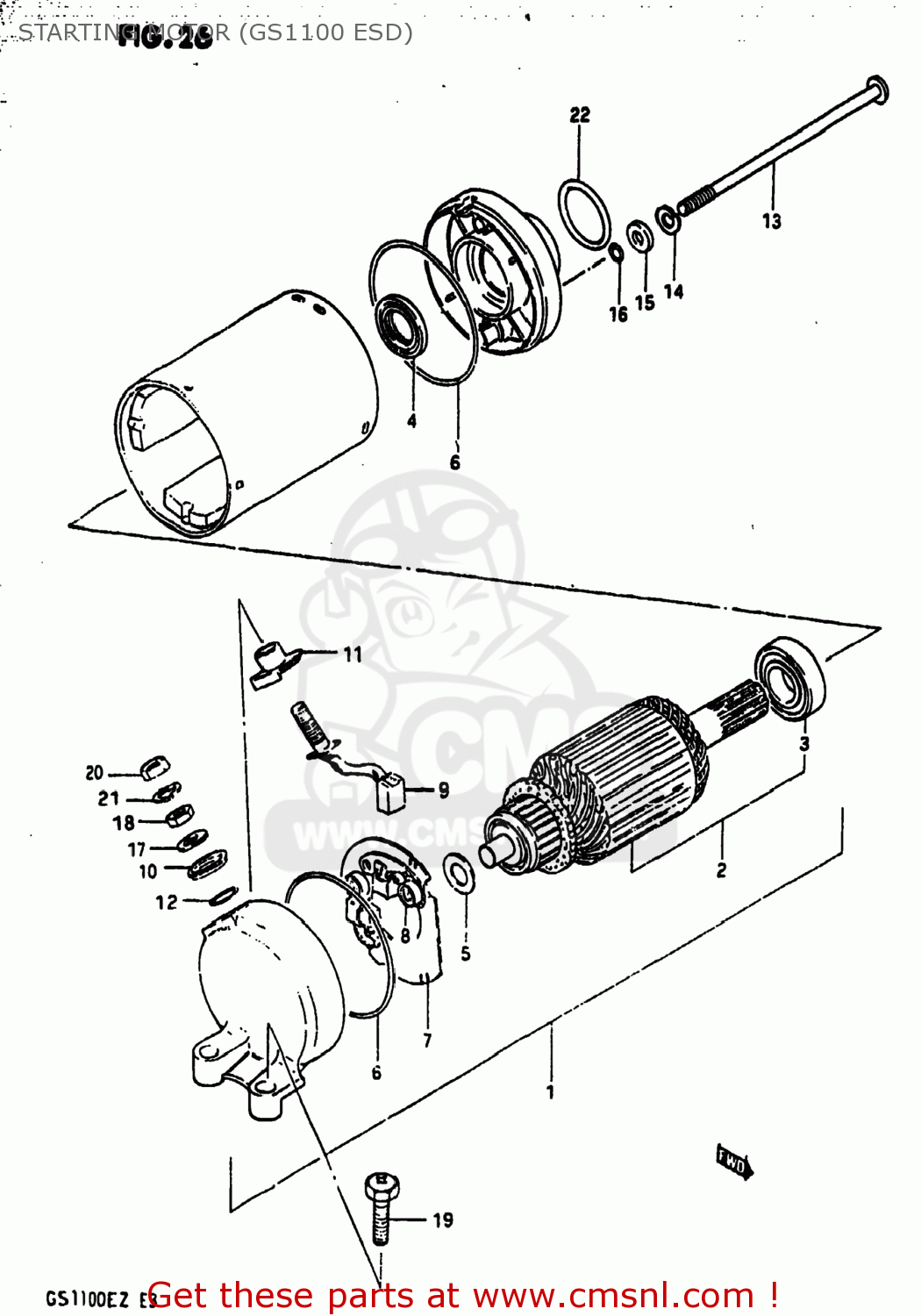

Starting motor (gs1100 esd) diagram GS1100E 1982 (Z) USA (E03)

STARTING MOTOR (GS1100 ESD) GS1100E 1982 (Z) USA (E03)
STARTING MOTOR (GS1100 ESD) GS1100E 1982 (Z) USA (E03)
STARTING MOTOR (GS1100 ESD) GS1100E 1982 (Z) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3110049500
ref: 1
31100-49500-H17
MOTOR ASSEMBLY,STARTING
€ 704.50
2
3131049500
ref: 2
31310-49501-H17
ARMATURE
€ 76.00
3
3115545010
ref: 3
31155-45C00
BEARING
€ 21.00
4
3115349210
ref: 4
SEAL,OIL
3115349210
€ 15.00
5
3136147010
ref: 5
31170-43400
SHIM,ARMATURE
€ 3.50
6
3126444110
ref: 6
O RING
3126444110
€ 8.00
7
3113244110
ref: 7
31132-27A01
HOLDER,BRUSH
€ 47.00
8
3113565010
ref: 8
SPRING
3113565010
€ 3.00
9
3113038300
ref: 9
BRUSH SUB ASSY,STARTING MOTOR
3113038300
€ 12.50
10
3117238300
ref: 10
BUSHING
3117238300
€ 4.00
11
3117138300
ref: 11
BUSH,B
3117138300
€ 5.50
12
3114338300
ref: 12
O RING
3114338300
€ 3.50
13
3128105300
ref: 13
31281-88C00
BOLT
€ 8.50
14
0832121058
ref: 14
08321-0105A
LOCK WASHER
0832121058
€ 2.00
15
3116138300
ref: 15
WASHER
3116138300
€ 2.50
16
3115638300
ref: 16
O RING
3115638300
€ 3.00
17
0832221068
ref: 17
08322-01067
WASHER
0832221068
€ 2.00
18
0831022068
ref: 18
08310-00067
NUT 6MM
€ 2.50
19
0912806024
ref: 19
09103-06212
SCREW (6X25)
0912806024
€ 2.50
20
0831022068
ref: 20
08310-00067
NUT 6MM
€ 2.50
21
0832121068
ref: 21
08321-01067
LOCK WASHER
0832121068
€ 2.50
22
0928024003
ref: 22
O RING(D:3,ID:24.5)
0928024003
€ 2.00
