LEFT HANDLE SWITCH
GS1100E 1982 (Z) USA (E03)

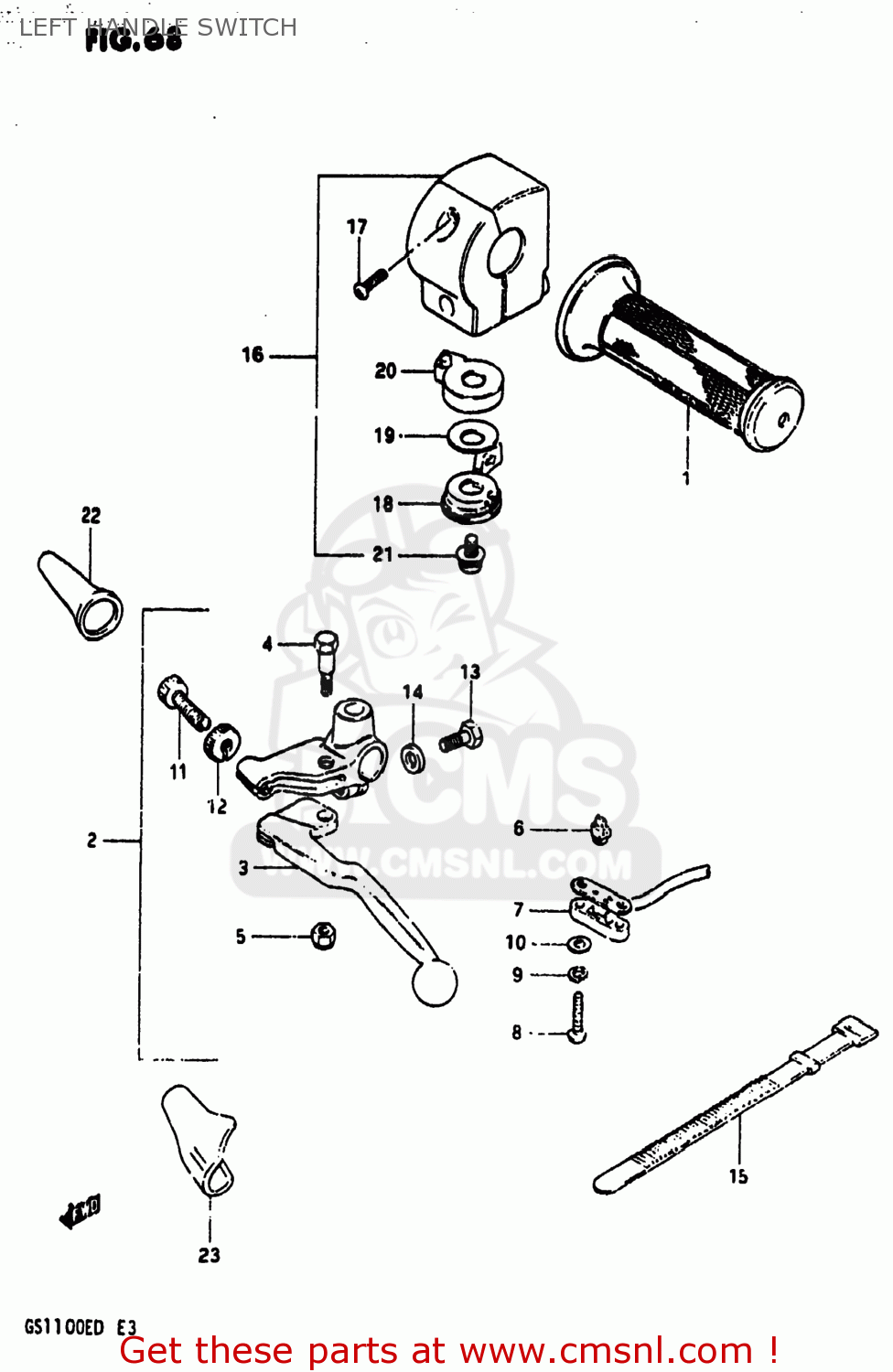

Left handle switch diagram GS1100E 1982 (Z) USA (E03)
LEFT HANDLE SWITCH GS1100E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5721145010
ref: 1-1
57211-49510
GRIP,LEFT
€ 26.50
1-2
5721149510
ref: 1-2
GRIP,L
€ 26.50
1-3
5721149500
ref: 1-3
GRIP,L
€ 9.00
2-1
5750049112
ref: 2-1
57500-49301
LEVER ASSEMBLY
€ 53.50
2-2
5750049131
ref: 2-2
LEVER ASSY,CLUTCH
€ 49.50
3
5762049111
ref: 3
LEVER,CLUTCH
€ 34.00
4-1
5743111011
ref: 4-1
57431-11013
BOLT,LEVER
€ 6.00
4-2
5743149120
ref: 4-2
57431-49110
BOLT,LEVER
€ 5.00
5
0831921068
ref: 5
08319-2106A
NUT 6MM
€ 2.00
6
5746518601
ref: 6
CONTACT,SWITCH
€ 4.50
7
5748133010
ref: 7
COVER,FR BK TERMINAL BASE
€ 19.50
8
5748449110
ref: 8
SCREW
€ 1.50
9
0832121038
ref: 9
09162-03001
LOCK WASHER
€ 1.50
10
0832221038
ref: 10
08322-01037
WASHER
€ 2.00
11-1
5744111010
ref: 11-1
ADJUSTER,CABLE
€ 8.00
11-2
5744144400
ref: 11-2
ADJUSTER,CABLE
€ 5.50
12-1
5744211010
ref: 12-1
NUT,CABLE ADJUSTER
€ 4.00
12-2
5744244400
ref: 12-2
57442-11010
NUT,CABLE ADJUSTER LOCK
€ 4.00
13-1
5745149100
ref: 13-1
BOLT,CLUTCH LEVER HOLDER
€ 3.00
13-2
5745149120
ref: 13-2
01204-06204
BOLT,CLUTCH LEVER HOLDER
€ 2.00
14
5758149120
ref: 14
08322-0106B
SPACER
€ 2.00
15
0940712402
ref: 15
CLAMP(L:120)
€ 3.00
16-1
3740049571
ref: 16-1
37400-45373
SWITCH ASSEMBLY,HANDLE,LEFT
€ 154.00
16-2
3740049572
ref: 16-2
37400-45373
SWITCH ASSEMBLY,HANDLE,LEFT
€ 154.00
17-1
0211205068
ref: 17-1
09125-05122
SCREW
€ 4.00
17-2
0211205168
ref: 17-2
02112-05167
SCREW
€ 2.50
18
5872127503
ref: 18
LEVER,STARTER
€ 8.00
19
5872203010
ref: 19
WASHER,ADJUSTER
€ 3.00
20-1
3757249440
ref: 20-1
37572-49441
BODY,CHOCK
€ 15.50
20-2
3757249441
ref: 20-2
BODY,STARTER LEVER
€ 15.50
21
3757449440
ref: 21
02112-7516A
SCREW,CHOKE LE
€ 2.50
22
5827331000
ref: 22
BOOT,CLUTCH CABLE
€ 2.50
23
5766131000
ref: 23
COVER,CLUTCH LEVER
€ 5.50
24
3731149000
ref: 24
BUTTON,STARTER
€ 4.50
25
3731249000
ref: 25
57382-47500
SPRING,STARTER BUTTON
€ 1.50
26
3731349000
ref: 26
CONTACT,STARTER BUTTON
€ 0.00
