REAR BREAK HOSE

GS1100E 1982 (Z) USA (E03)

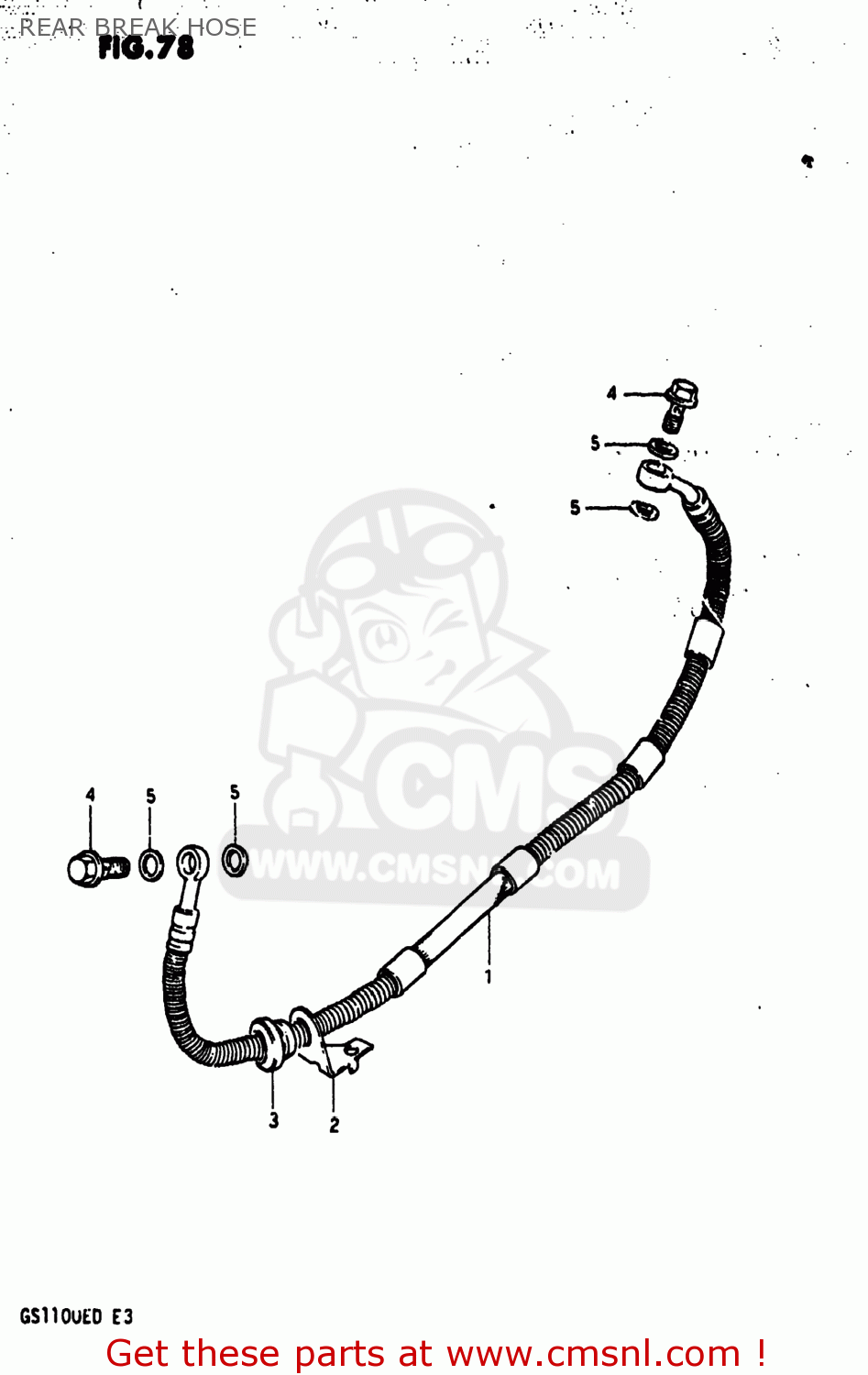

Rear break hose diagram GS1100E 1982 (Z) USA (E03)

REAR BREAK HOSE GS1100E 1982 (Z) USA (E03)
REAR BREAK HOSE GS1100E 1982 (Z) USA (E03)
REAR BREAK HOSE GS1100E 1982 (Z) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6948049302
ref: 1
69480-08C01
HOSE,REAR BRAKE
6948049302
€ 94.00
2
6924347000
ref: 2
GUIDE,BRAKE HOSE
6924347000
€ 5.50
3
5924436200
ref: 3
GROMMET,BRAKE HOSE GUIDE
5924436200
€ 4.00
4-1
0936010007
ref: 4-1
09360-10017
BOLT,UNION
0936010007
€ 6.50
4-2
0936010009
ref: 4-2
09360-10017
BOLT UNION
€ 6.50
5
0916110005
ref: 5
09161-10009
WASHER
0916110005
€ 2.00
