FRAME

GS1100E 1982 (Z) USA (E03)

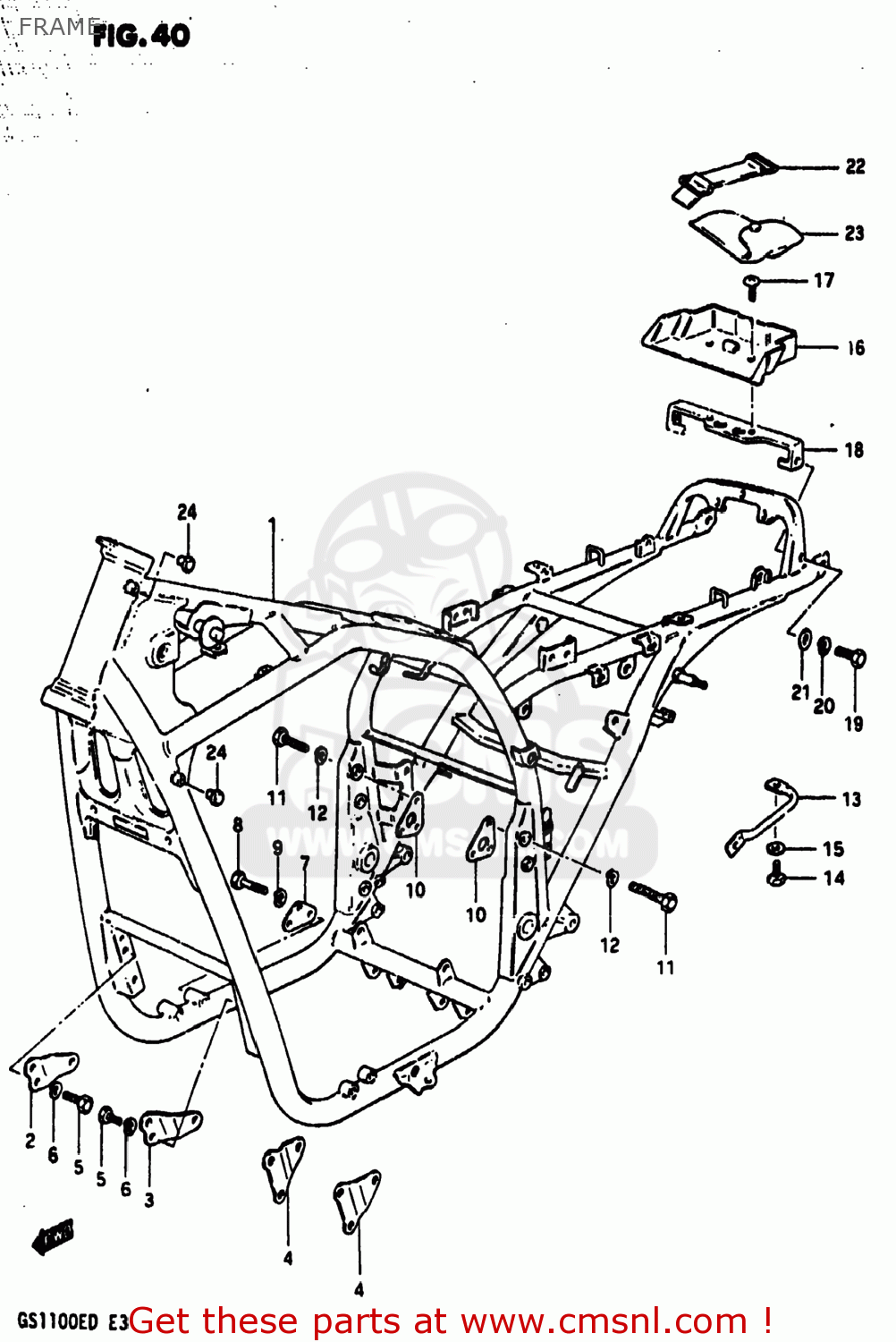

Frame diagram GS1100E 1982 (Z) USA (E03)

FRAME GS1100E 1982 (Z) USA (E03)
FRAME GS1100E 1982 (Z) USA (E03)
FRAME GS1100E 1982 (Z) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4110049500019
ref: 1-1
FRAME
€ 0.00
1-2
4110049501019
ref: 1-2
41100-49502-019
FRAME
€ 731.50
2
4191149500019
ref: 2
PLATE,ENGINE MOUNTING NO
€ 0.00
3
4192149500019
ref: 3
PLATE,ENGINE MOUNTING NO
€ 0.00
4
4191145950019
ref: 4
41911-45950-13L
PLATE,ENGINE MOUNTING
4191145950019
€ 12.50
5
0110708168
ref: 5
01500-0816B
BOLT
€ 2.00
6
0832121088
ref: 6
08321-01087
LOCK WASHER
0832121088
€ 2.00
7
4192149000019
ref: 7
41921-49000-13L
PLATE,ENGINE MOUNTING
€ 30.00
8
0110708168
ref: 8
01500-0816B
BOLT
€ 2.00
9
0832121088
ref: 9
08321-01087
LOCK WASHER
0832121088
€ 2.00
10
4194049000019
ref: 10
41940-49000-13L
PLATE,ENGINE MOUNTING
4194049000019
€ 60.00
11
0110708358
ref: 11
01500-0835B
BOLT
0110708358
€ 3.50
12
0832121088
ref: 12
08321-01087
LOCK WASHER
0832121088
€ 2.00
13
4161049500
ref: 13
GRIP,FRAME HANDLE
€ 26.50
14
0110708168
ref: 14
01500-0816B
BOLT
€ 2.00
15
0832211088
ref: 15
08322-01087
WASHER
0832211088
€ 2.00
16
4155149500
ref: 16
HOLDER,TOOL
€ 0.00
17
0214206108
ref: 17
02142-06107
SCREW
0214206108
€ 2.00
18
4744049501
ref: 18
PLATE,TOOL HOLDER
€ 43.00
19
0110706128
ref: 19
01500-06127
BOLT
0110706128
€ 2.00
20
0832121068
ref: 20
08321-01067
LOCK WASHER
0832121068
€ 2.50
21
0832221068
ref: 21
08322-01067
WASHER
0832221068
€ 2.00
22
0946200072
ref: 22
BAND
0946200072
€ 3.50
23
0980000240
ref: 23
09800-21011
TOOL ASSY
€ 50.00
24
0925006005
ref: 24
PLUG(OD:12)
0925006005
€ 2.00
