CYLINDER HEAD COVER (MODEL D)

GS1100E 1982 (Z) USA (E03)

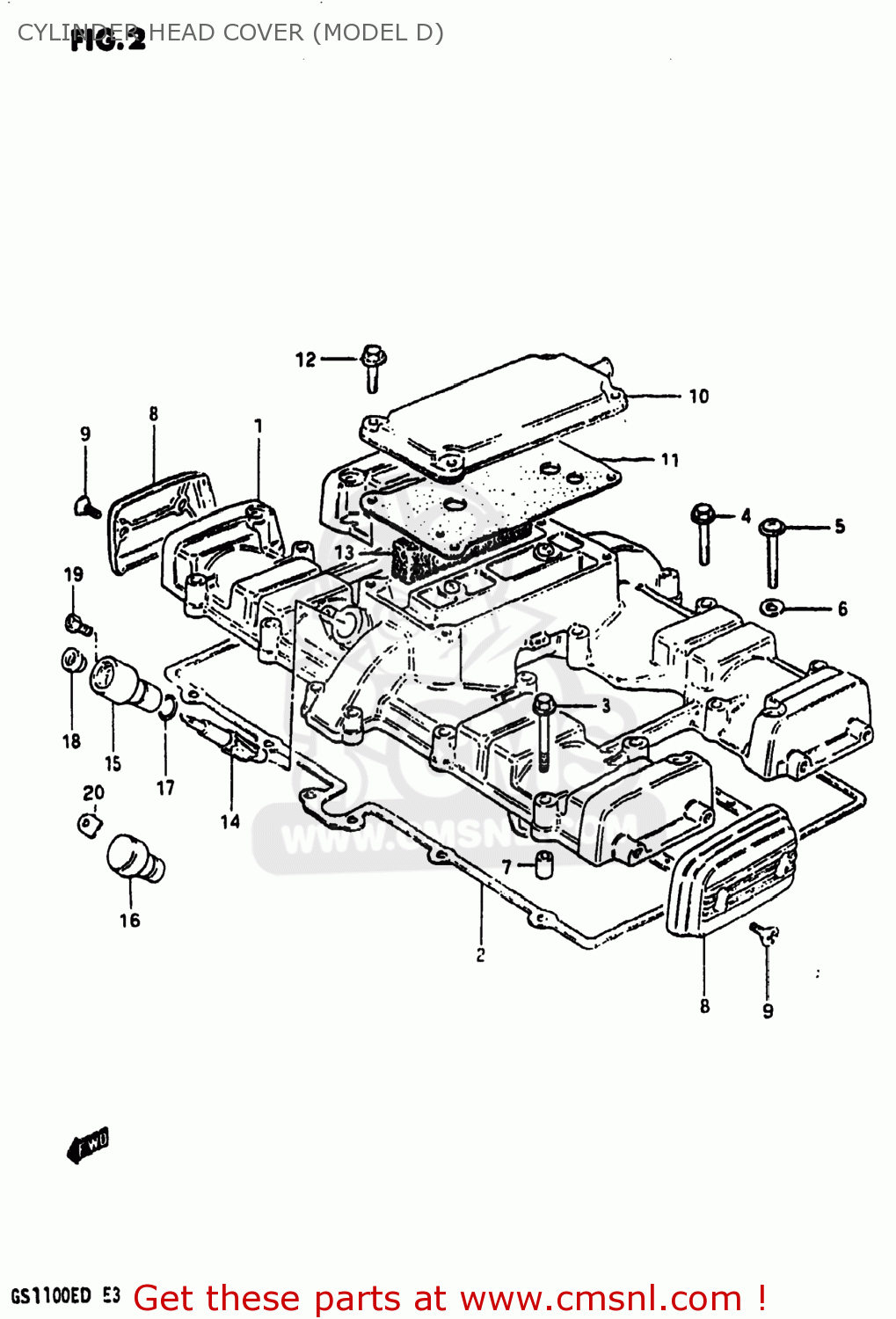

Cylinder head cover (model d) diagram GS1100E 1982 (Z) USA (E03)

CYLINDER HEAD COVER (MODEL D) GS1100E 1982 (Z) USA (E03)
CYLINDER HEAD COVER (MODEL D) GS1100E 1982 (Z) USA (E03)
CYLINDER HEAD COVER (MODEL D) GS1100E 1982 (Z) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1117145440
ref: 1
COVER,CYLINDER HEAD
1117145440
€ 213.00
2
1117349221
ref: 2
11173-49224-H17
GASKET,CYLINDER HEAD COVER
€ 47.00
3
0151706405
ref: 3
01550-0640A
BOLT (6X40)
€ 2.00
4
0151706355
ref: 4
01550-0635A
BOLT
€ 2.50
5
0215206405
ref: 5
02112-0640A
SCREW 6X40
€ 2.00
6
0916806009
ref: 6
09168-06023
GASKET (NAS)
0916806009
€ 2.00
7
0920608001
ref: 7
PIN(6.2X8X11)
0920608001
€ 2.00
8
1117449221
ref: 8
CAP,CYLINDER HEAD COVER
1117449221
€ 23.00
9
0912705015
ref: 9
SCREW(5X12)
0912705015
€ 2.00
10
1117645411
ref: 10
11176-45402
COVER,BREATHER
€ 24.50
11
1117749210
ref: 11
11177-49210-H17
GASKET (MCA)
1117749210
€ 40.00
12
0151706205
ref: 12
01550-0620A
BOLT
€ 2.50
13
1118649200
ref: 13
11186-49201
COVER,BREATHER
1118649200
€ 16.50
14
2643149200
ref: 14
26431-49201
GEAR,TACHOMETER DRIVEN
2643149200
€ 40.00
15
2644149000
ref: 15
SLEEVE,TACHOMETER DRIVE GEAR
2644149000
€ 18.00
16
2644245000
ref: 16
PLUG,TACH GEAR SLEEVE HOLE
2644245000
€ 15.50
17
2645145000A
ref: 17
SEAL,TACHOMETER DRIVEN
2645145000A
€ 4.50
18
0928905002
ref: 18
SEAL,OIL(5X12X8)
0928905002
€ 11.00
19
0912805101
ref: 19
SCREW(5X12)
0912805101
€ 1.50
20
2644933000
ref: 20
PLATE,TACH DRIVE GEAR SLEEVE
2644933000
€ 3.50
