FRAME COVER (GS1100ED)

GS1100E 1982 (Z) USA (E03)

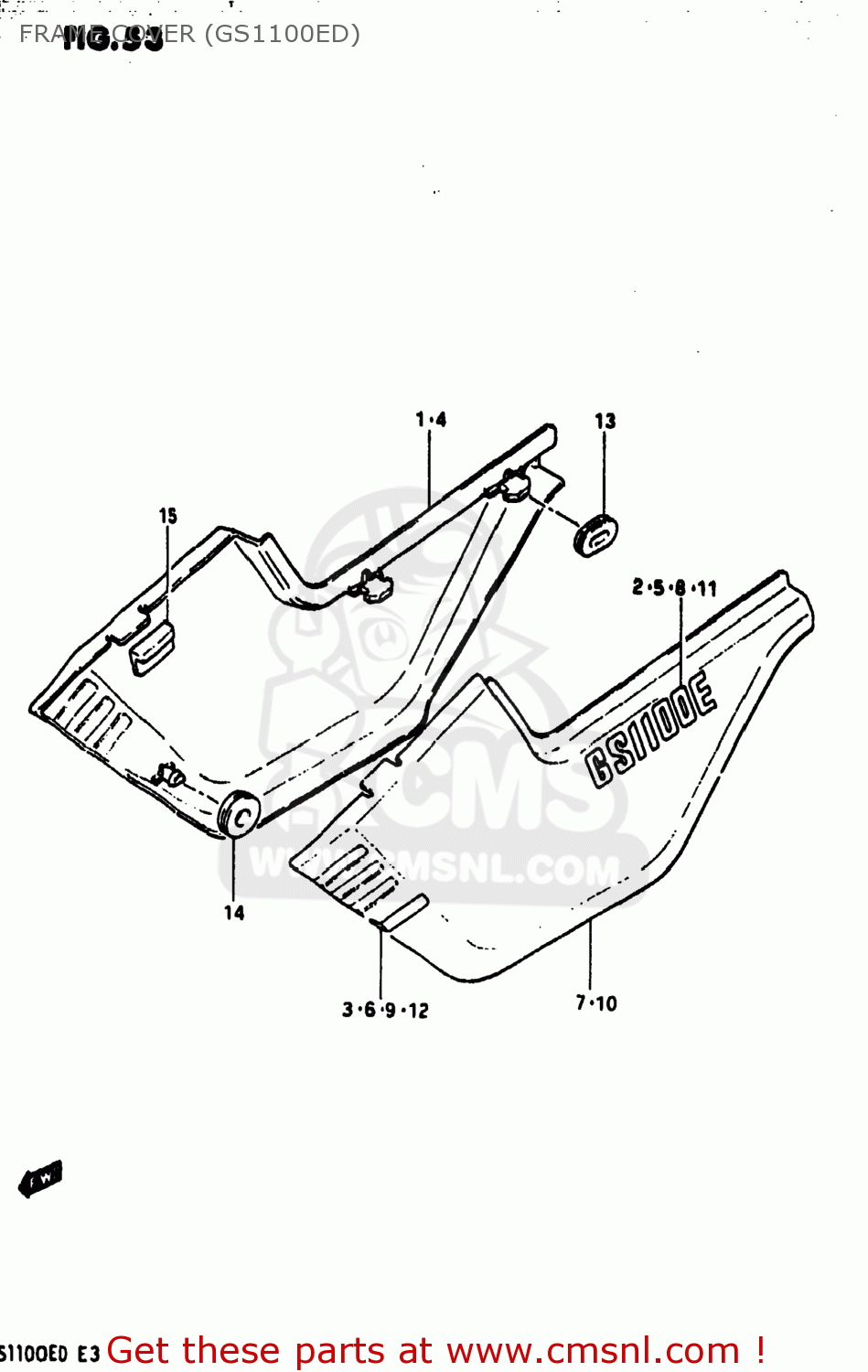

Frame cover (gs1100ed) diagram GS1100E 1982 (Z) USA (E03)

FRAME COVER (GS1100ED) GS1100E 1982 (Z) USA (E03)
FRAME COVER (GS1100ED) GS1100E 1982 (Z) USA (E03)
FRAME COVER (GS1100ED) GS1100E 1982 (Z) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
471104951017S
ref: 1
47111-49500
COVER,FRAME,RIGHT
€ 77.00
2
681314951060R
ref: 2
68131-49530-73H
EMBLEM
€ 9.50
3
6813449500
ref: 3
LABEL, DENT
€ 0.00
4
471104951017R
ref: 4
47111-49500
COVER,FRAME,RIGHT
€ 77.00
5
6813149510991
ref: 5
EMBLEM
6813149510991
€ 9.50
6
6813449500
ref: 6
LABEL, DENT
€ 0.00
7
472104951017S
ref: 7
47211-49500
COVER,FRAME,LEFT
€ 72.50
8
681314951060R
ref: 8
68131-49530-73H
EMBLEM
€ 9.50
9
6814449500
ref: 9
EMBLEM,FRAME COVER,CENTER
€ 3.00
10
472104951017R
ref: 10
47211-49500
COVER,FRAME,LEFT
€ 72.50
11
6813149510991
ref: 11
EMBLEM
6813149510991
€ 9.50
12
6814449500
ref: 12
EMBLEM,FRAME COVER,CENTER
€ 3.00
13
0932003005
ref: 13
09320-03004
CUSHION
0932003005
€ 2.00
14
0932008018
ref: 14
CUSHION
0932008018
€ 4.00
15
4711745000
ref: 15
CUSHION,FRAME COVER
4711745000
€ 1.50
