GEAR SHIFTING
GS1100E 1982 (Z) USA (E03)

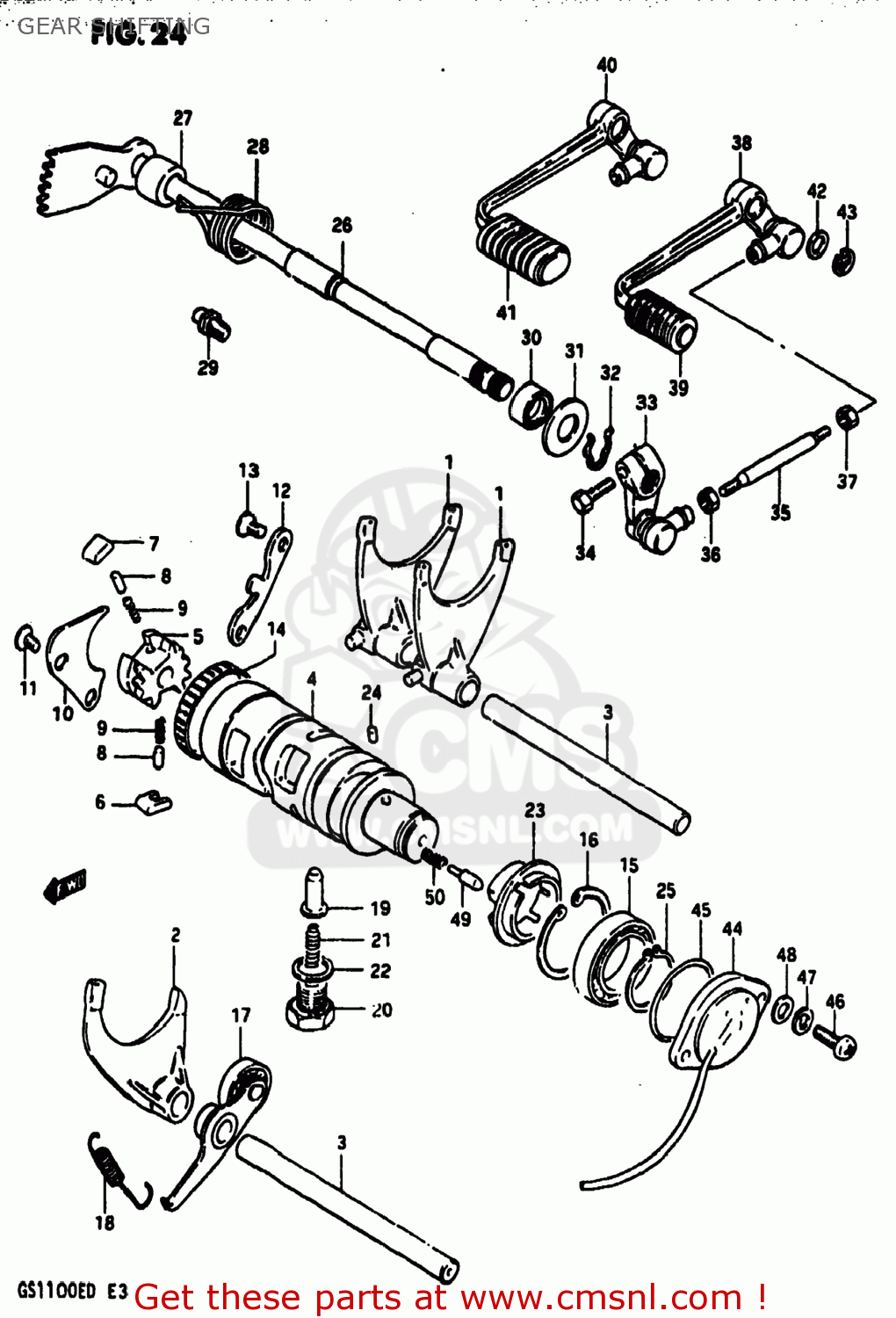

Gear shifting diagram GS1100E 1982 (Z) USA (E03)
GEAR SHIFTING GS1100E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521149200
ref: 1
FORK,GEAR SHIFT NO.1
€ 87.00
2
2523149201
ref: 2
FORK,GEAR SHIFT NO.2
€ 106.00
3
2541149200
ref: 3
25411-33301
SHAFT,GEAR SHIFT FORK
€ 13.00
4
2531049200
ref: 4
CAM,GEAR SHIFT
€ 161.50
5
2532211000
ref: 5
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
6
2532311000
ref: 6
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
€ 1.50
9
0944004003
ref: 9
SPRING
€ 1.50
10
2533149200
ref: 10
25331-49201
LIFTER,GEAR SHIFT PAWL
€ 43.50
11
0212206128
ref: 11
02122-06127
SCREW
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
€ 51.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
0926343001
ref: 14
BEARING(43X49X12)
€ 30.00
15
0811069050
ref: 15
08113-69050
BALL BEARING
€ 36.00
16
0833141428
ref: 16
08331-4142A
CIRCLIP,42MM
€ 1.50
17
2535049200
ref: 17
25350-49201
STOPPER,GEAR SHIFTING
€ 9.00
18
0944308019
ref: 18
SPRING
€ 2.50
19
2535130010
ref: 19
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
21
0944006020
ref: 21
SPRING
€ 14.00
22
0916814004
ref: 22
GASKET(14X19.2X2) (NAS)
€ 2.50
23
2538149200
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
€ 19.00
24
0621104063
ref: 24
04221-04069
PIN 4X6
€ 2.00
25
0833131258
ref: 25
08331-3125A
CIRCLIP,25MM
€ 2.00
26
2551045400
ref: 26
SHAFT,GEAR SHIFT
€ 88.00
27
0918012068
ref: 27
SPACER(12X20X15.3)
€ 3.00
28
0944426017
ref: 28
SPRING
€ 5.00
29
2567101000
ref: 29
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
30
0928512002
ref: 30
09285-12006
OIL SEAL
€ 7.00
31
0916012020
ref: 31
09160-12089
WASHER (12.5X27X1.6)
€ 2.00
32
0938412001
ref: 32
08331-3112A
SPRING,RETAINER
€ 2.00
33
2552047000
ref: 33
ARM,GEAR SHIFT LINK
€ 53.50
34
0110706208
ref: 34
01500-06207
BOLT
€ 2.00
35
2552533200
ref: 35
25525-12C10
ROD,GEAR SHIFT LINK
€ 6.00
36
0914006011
ref: 36
NUT
€ 1.50
37
0831011068
ref: 37
08310-00067
NUT
€ 2.50
38
2560049500
ref: 38
25600-49510
LEVER ASSEMBLY,GEAR SHIFTING
€ 51.50
39
2565249000
ref: 39
25652-20C00
RUBBER,GEAR SHIFT PEDAL
€ 8.00
40
2560049510
ref: 40
LEVER ASSEMBLY,GEAR SHIFTING
€ 51.50
41
2565249300
ref: 41
RUBBER,PEDAL
€ 5.50
42
0916012011
ref: 42
WASHER(12.5X20X1)
€ 1.50
43
0833131128
ref: 43
08331-3112A
CIRCLIP
€ 2.00
44
3772049210
ref: 44
37720-24A01
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 78.50
45
0928036001
ref: 45
O RING(D:2.4,ID:36.5)
€ 4.50
46
0211205128
ref: 46
02112-05127
SCREW
€ 2.50
47
0832121058
ref: 47
08321-0105A
LOCK WASHER
€ 2.00
48
0832221058
ref: 48
08322-01057
WASHER
€ 2.50
49
0920905011
ref: 49
PIN(5X15.5)
€ 2.00
50
0944004010
ref: 50
SPRING
€ 1.50
