STARTER CLUTCH
GS1100E 1982 (Z) USA (E03)

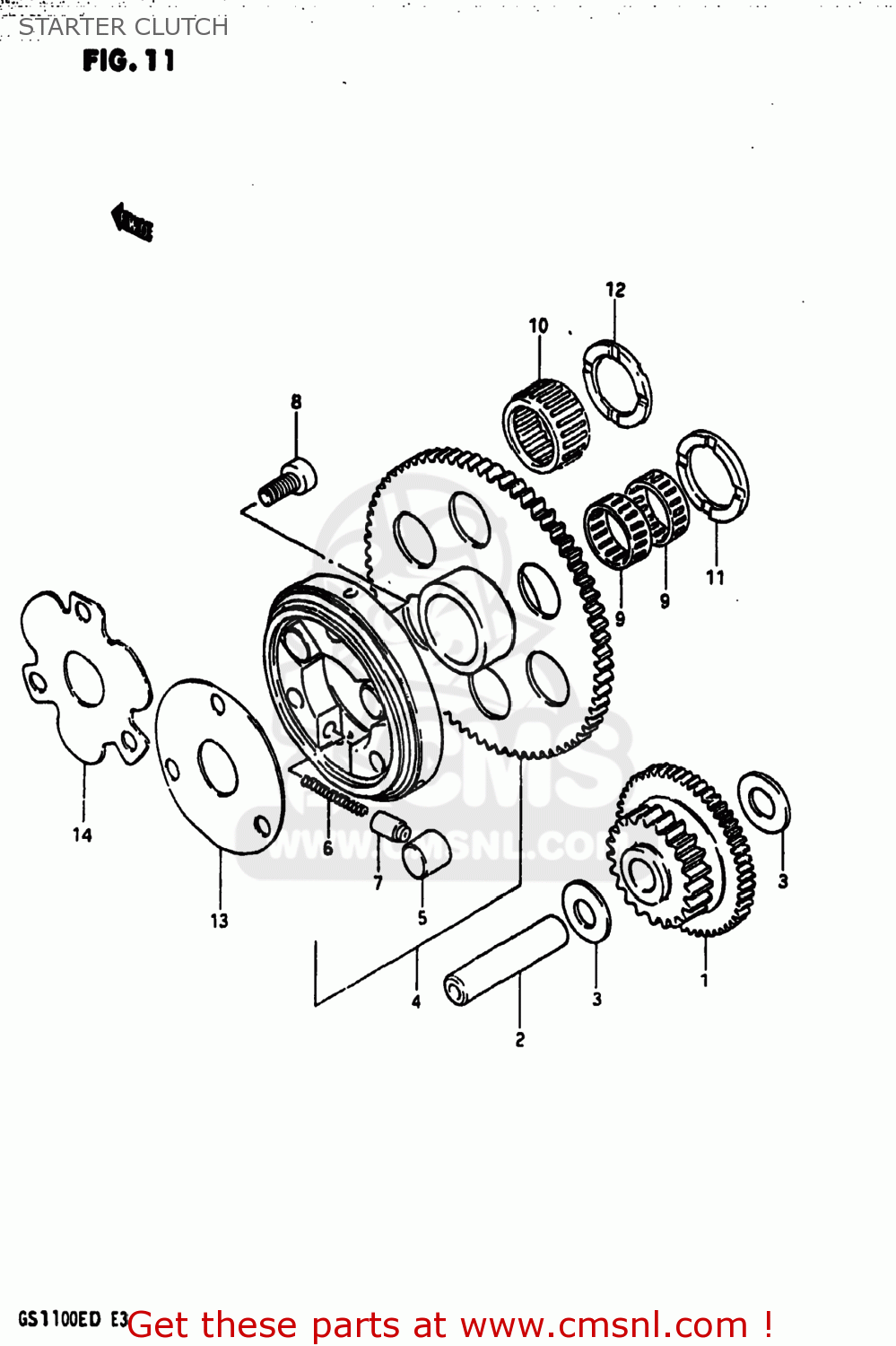

Starter clutch diagram GS1100E 1982 (Z) USA (E03)
STARTER CLUTCH GS1100E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261149202
ref: 1
GEAR,STARTER IDLE
€ 68.00
2
0920613003
ref: 2
PIN(7.4X13X56)
€ 9.00
3
0916013003
ref: 3
WASHER(13.3X25X0.85)
€ 2.50
4-1
1260049822
ref: 4-1
12600-49826
CLUTCH SET,STARTER
€ 309.00
4-2
1260049860
ref: 4-2
12600-49865
CLUTCH SET,STARTER
€ 287.00
5
0926115001
ref: 5
ROLLER(15X13)
€ 3.50
6
0944004015
ref: 6
SPRING
€ 2.50
7
1263331000
ref: 7
PIECE,PUSH
€ 9.00
8
0910608006
ref: 8
07130-0816A
BOLT
€ 3.00
9
0926325029
ref: 9
09263-25008
BEARING
€ 17.00
10
0926329005
ref: 10
BEARING(29X35X24)
€ 22.50
11
0916025019
ref: 11
WASHER(25X38X2.5)
€ 10.00
12
0916029010
ref: 12
WASHER(29X41X2.5)
€ 9.00
13
1264949200
ref: 13
SHIM,STARTER CLUTCH HUB
€ 11.00
14
1264949600
ref: 14
12649-49601
SHIM,STARTER CLUTCH HUB
€ 22.00
