CRANKCASE (MODEL Z)

GS1100G 1983 (D) GENERAL EXPORT (E01)

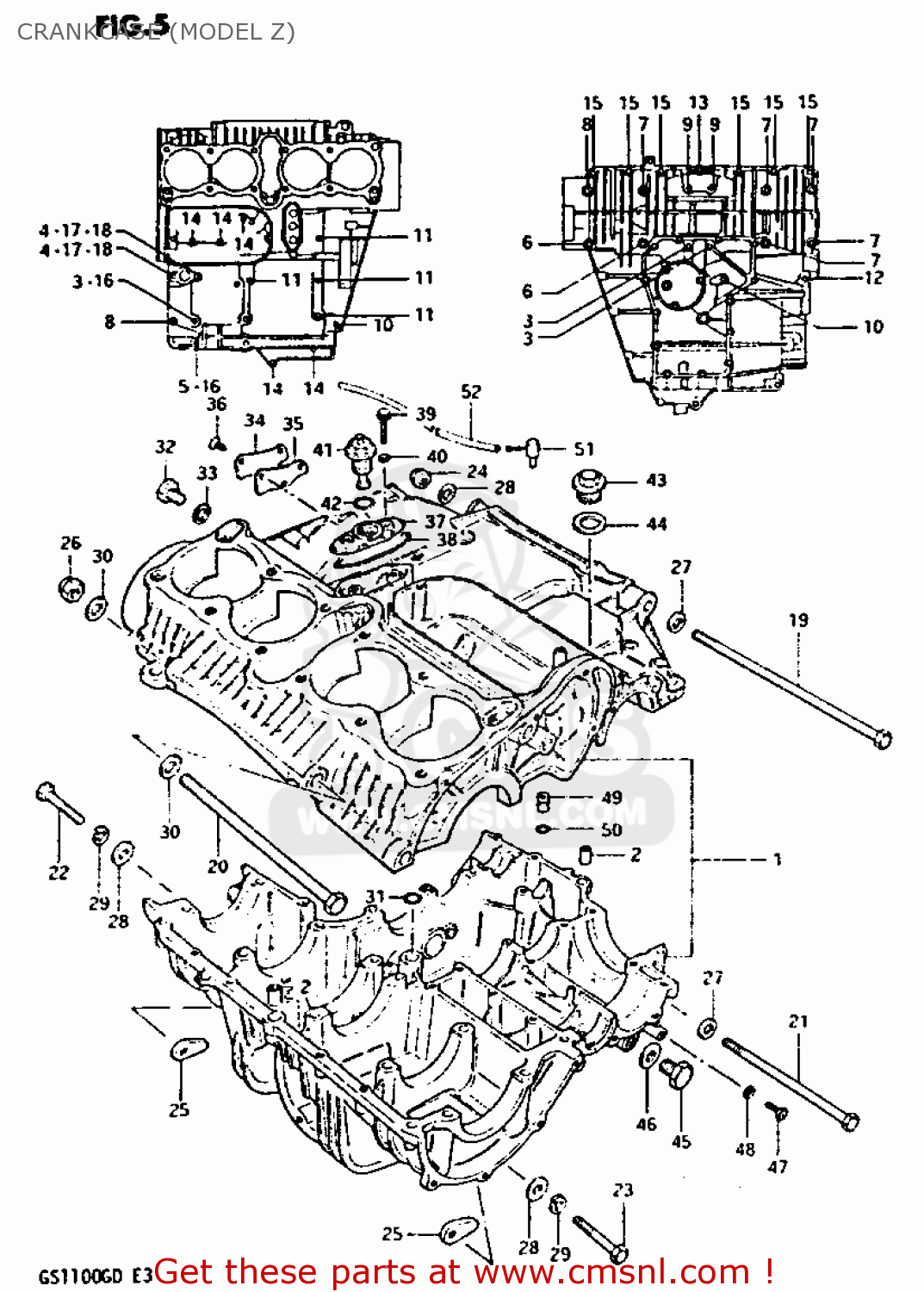

Crankcase (model z) diagram GS1100G 1983 (D) GENERAL EXPORT (E01)

CRANKCASE (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)
CRANKCASE (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)
CRANKCASE (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1130049843
ref: 1
CRANKCASE SET
€ 1,782.00
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0910308106
ref: 3
BOLT(8X125)
0910308106
€ 8.00
4
0910308046
ref: 4
BOLT
€ 0.00
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308070
ref: 6
BOLT(8X100)
0910308070
€ 5.00
7
0151708908
ref: 7
BOLT 8X90
€ 3.50
8
0151708658
ref: 8
BOLT 8X65
€ 3.00
9
0151708608
ref: 9
BOLT
€ 3.50
10
0151706907
ref: 10
BOLT (6X90)
€ 2.00
11
0151706758
ref: 11
BOLT (6X75)
€ 2.50
12
0151706557
ref: 12
BOLT
€ 2.50
13
0151706508
ref: 13
BOLT ,6X50
€ 2.00
14
0151706458
ref: 14
BOLT,UNDER
0151706458
€ 2.50
15
0151706358
ref: 15
BOLT 6X35
0151706358
€ 2.50
16
0831616088
ref: 16
NUT
0831616088
€ 2.50
17
0831311088
ref: 17
NUT
0831311088
€ 2.50
18
0916808008
ref: 18
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
19
0910010074
ref: 19
BOLT 10X270
0910010074
€ 15.50
20
6121139001
ref: 20
SHAFT,REAR SWING ARM
6121139001
€ 15.00
21
0910010078
ref: 21
BOLT(10X165)
0910010078
€ 10.50
22
0110710608
ref: 22
BOLT 10X60
€ 3.50
23
0110710508
ref: 23
BOLT (10X50)
€ 7.00
24
0915910011
ref: 24
NUT
0915910011
€ 3.00
25
0915910020
ref: 25
NUT
0915910020
€ 7.50
26
0831921128
ref: 26
NUT 12MM
0831921128
€ 4.00
27
0916010005
ref: 27
WASHER(10.5X20X3.2)
0916010005
€ 2.00
28
0832201107
ref: 28
WASHER
0832201107
€ 2.50
29
0832121107
ref: 29
WASHER,LOCK,10
0832121107
€ 2.00
30
0832211128
ref: 30
WASHER
0832211128
€ 2.00
31
0928013001
ref: 31
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
32
0924714026
ref: 32
PLUG(14X12)
0924714026
€ 3.50
33
0916814004
ref: 33
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
34
1139445000
ref: 34
CAP,OIL GALLERY
1139445000
€ 6.50
35
1149745000H17
ref: 35
GASKET,OIL GALLERY CAP (NAS)
1149745000H17
€ 13.00
36
0212206167
ref: 36
SCREW
0212206167
€ 2.00
37
1644545000
ref: 37
HOUSING,OIL PRESSURE SWITCH
1644545000
€ 28.00
38
1644845000
ref: 38
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
39
0151706257
ref: 39
BOLT 6X25
€ 2.50
40
0916806023
ref: 40
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
41
3782045060
ref: 41
SWITCH ASSEMBLY
3782045060
€ 30.00
42
0928019001
ref: 42
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
43
0924720002
ref: 43
PLUG
0924720002
€ 4.50
44
0916820004
ref: 44
GASKET
€ 1.50
45
0924714019
ref: 45
PLUG
€ 5.50
46
0916814004
ref: 46
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
47
0912806004
ref: 47
SCREW(6X10)
0912806004
€ 1.50
48
0916806023
ref: 48
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
49
0936405005
ref: 49
UNION
0936405005
€ 3.00
50
0928003003
ref: 50
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
51
2482145100
ref: 51
BPLUG,BEVEL GEAR BREATHER
2482145100
€ 7.00
52
0934302009
ref: 52
HOSE
€ 12.00
