STAND
GS1100G 1983 (D) GENERAL EXPORT (E01)

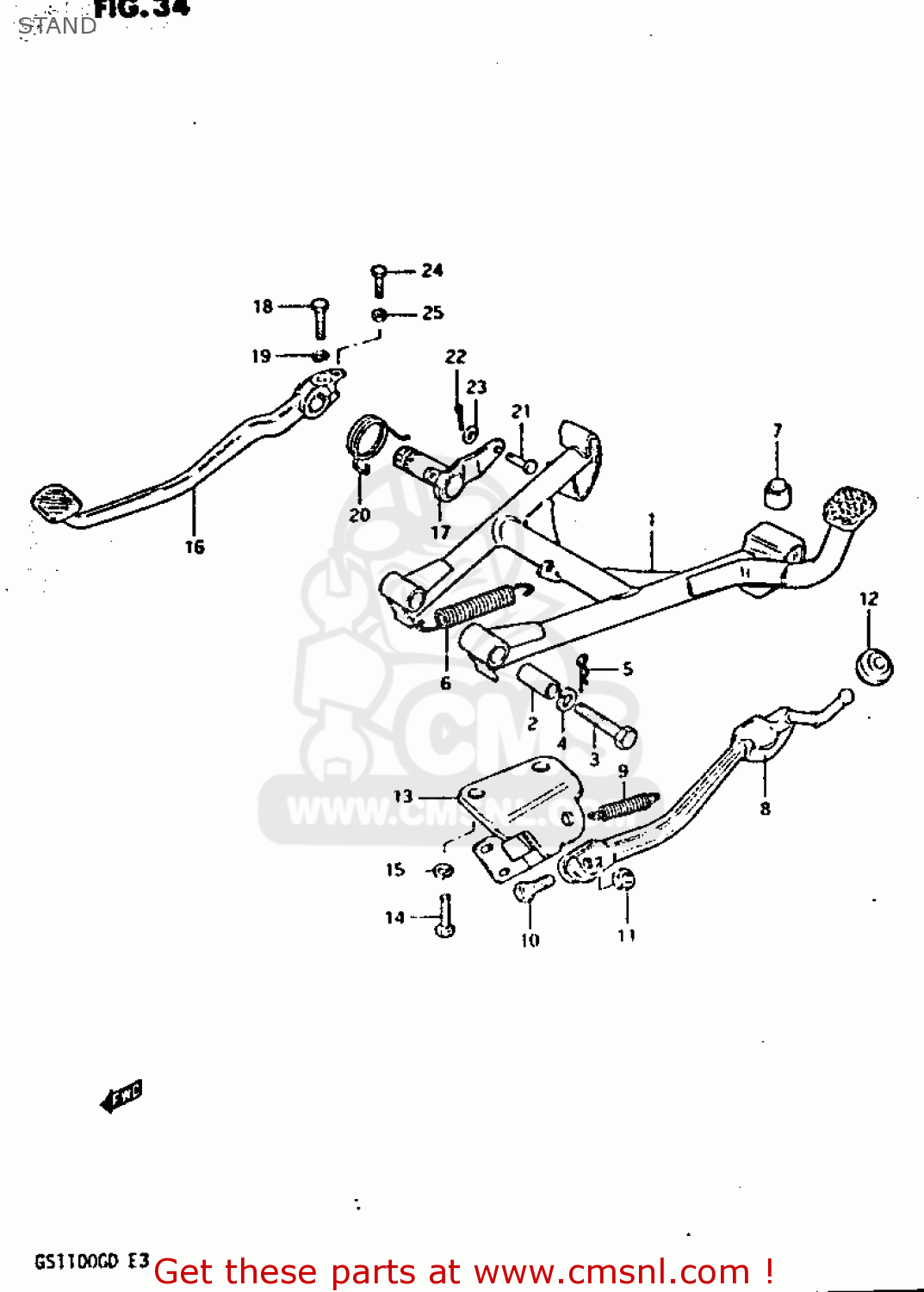

Stand diagram GS1100G 1983 (D) GENERAL EXPORT (E01)
STAND GS1100G 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4210049401
ref: 1
STAND,CENTER
€ 76.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
€ 3.00
3
0910110030
ref: 3
BOLT(10X65)
€ 5.50
4
0832121107
ref: 4
WASHER,LOCK,10
€ 2.00
5
0938510001
ref: 5
CLIP
€ 1.50
6
0944320002
ref: 6
SPRING
€ 9.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8-1
4231049251
ref: 8-1
MODEL Z
STAND,PROP
€ 72.50
8-2
4231049251
ref: 8-2
MODEL D
STAND,PROP
€ 72.50
9
0944317008
ref: 9
SPRING
€ 11.50
10
0910010067
ref: 10
BOLT(10X30)
€ 3.50
11
0831022107
ref: 11
NUT
€ 2.50
12
0932007001
ref: 12
CUSHION
€ 4.00
13-1
4233049251
ref: 13-1
MODEL Z
BRACKET,SIDE STAND
€ 0.00
13-2
4233049251
ref: 13-2
MODEL D
BRACKET,SIDE STAND
€ 0.00
14
0910010007
ref: 14
BOLT
€ 4.50
15
0832121107
ref: 15
WASHER,LOCK,10
€ 2.00
16-1
4311045351
ref: 16-1
MODEL Z
PEDAL,BRAKE
€ 23.00
16-2
4311049450
ref: 16-2
MODEL D
PEDAL,BRAKE
€ 76.50
17
4312045350
ref: 17
ARM,BRAKE PEDAL ROD
€ 30.50
18-1
0110708307
ref: 18-1
MODEL Z
BOLT
€ 2.50
18-2
0110708258
ref: 18-2
MODEL D
BOLT
€ 2.50
19
0832121088
ref: 19
LOCK WASHER
€ 2.00
20
0944837017
ref: 20
SPRING
€ 4.00
21
0920006029
ref: 21
PIN
€ 1.50
22
0411120158
ref: 22
PIN
€ 1.50
23
0832201067
ref: 23
WASHER
€ 2.00
24
0150006207
ref: 24
BOLT
€ 2.00
25
0831000067
ref: 25
NUT
€ 2.50
