GS1100G 1983 (D) GENERAL EXPORT (E01)

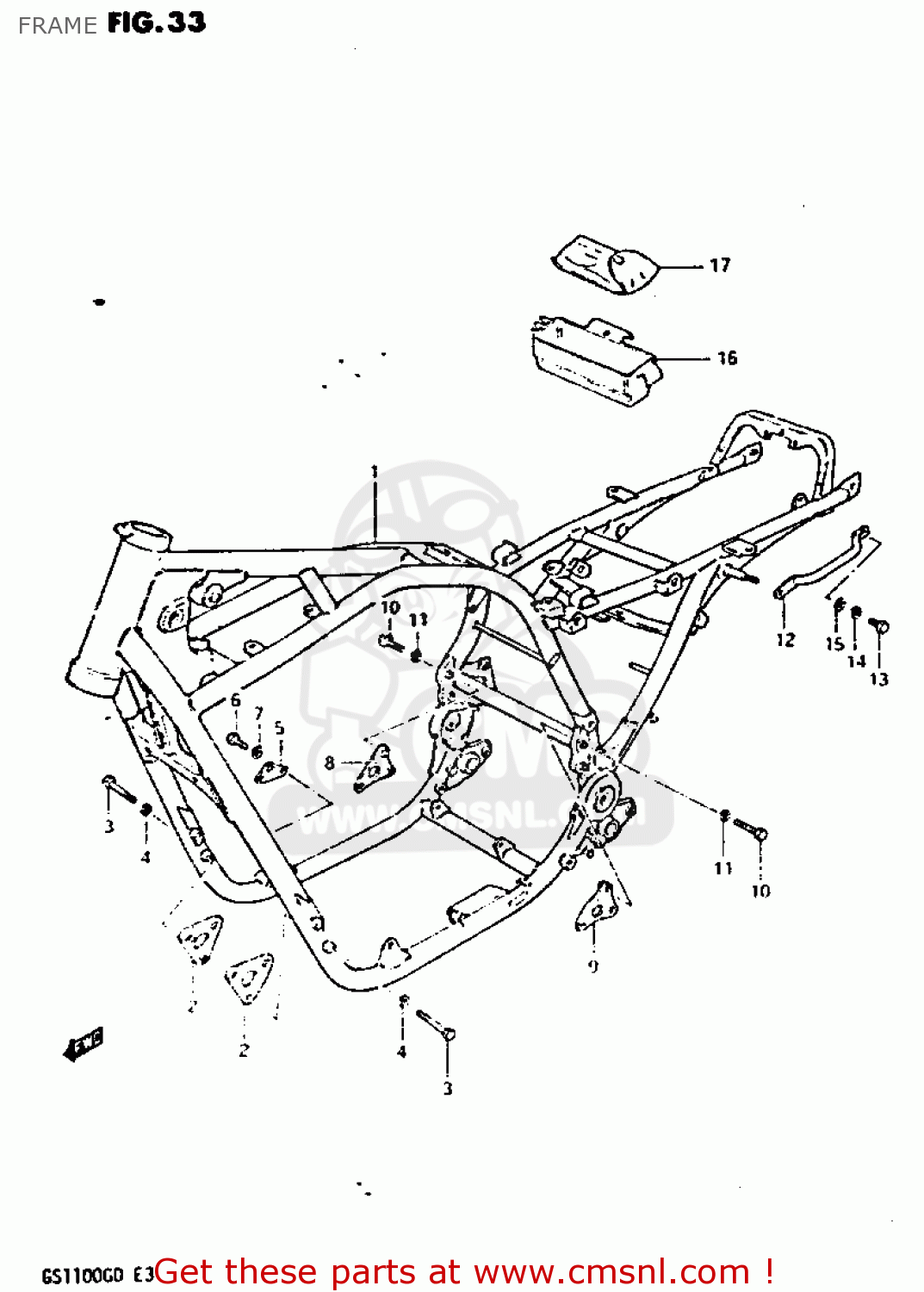

Frame diagram GS1100G 1983 (D) GENERAL EXPORT (E01)
FRAME GS1100G 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110049401019
ref: 1-1
MODEL Z
FRAME
€ 1,399.50
1-2
4110049401019
ref: 1-2
MODEL D
FRAME
€ 1,399.50
2
4191045101019
ref: 2
PLATE,ENGINE MOUNTING
€ 8.50
3
0110708658
ref: 3
BOLT
€ 3.00
4
0832121088
ref: 4
LOCK WASHER
€ 2.00
5
4199345000019
ref: 5
PLATE,ENGINE MOUNTING
€ 5.50
6
0110708168
ref: 6
BOLT
€ 2.00
7
0832121088
ref: 7
LOCK WASHER
€ 2.00
8
4197045100019
ref: 8
PLATE,ENGINE MOUNTING
€ 0.00
9
4198045350019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708408
ref: 10
BOLT 8X40
€ 3.00
11
0832121088
ref: 11
LOCK WASHER
€ 2.00
12-1
4161149401
ref: 12-1
MODEL Z
GRIP,FRAME HANDLE
€ 26.50
12-2
4161149401
ref: 12-2
MODEL D
GRIP,FRAME HANDLE
€ 26.50
13
0110708168
ref: 13
BOLT
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
€ 2.00
15
0832211088
ref: 15
WASHER
€ 2.00
16
4155145110
ref: 16
HOLDER,TOOL
€ 29.00
17
0980000251
ref: 17
TOOL SET
€ 43.00
