FRONT FORK (MODEL Z)

GS1100G 1983 (D) GENERAL EXPORT (E01)

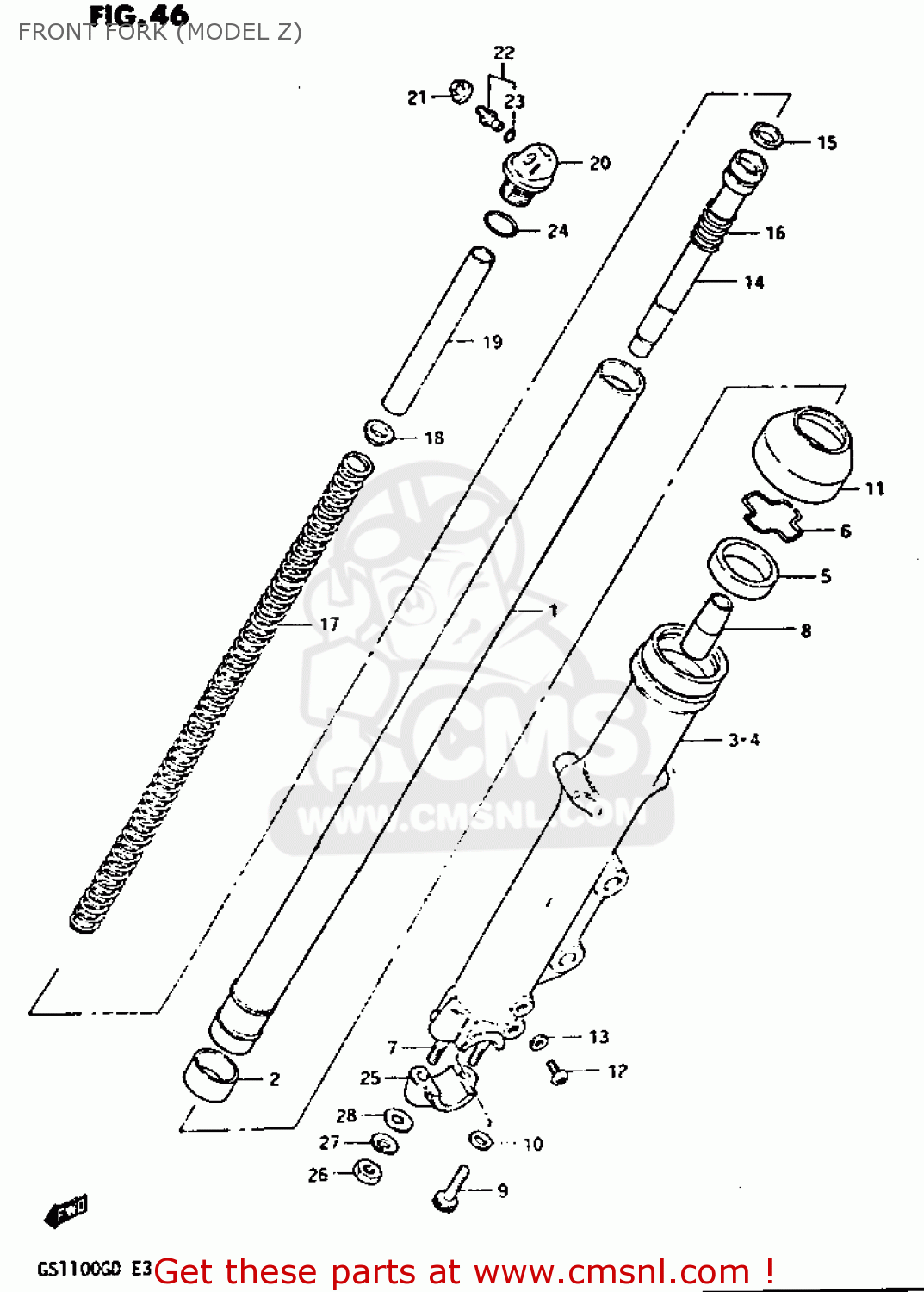

Front fork (model z) diagram GS1100G 1983 (D) GENERAL EXPORT (E01)

FRONT FORK (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)
FRONT FORK (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)
FRONT FORK (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
5110349400
ref: 0
DAMPER ASSEMBLY,RIGHT
€ 0.00
0
5110449400
ref: 0
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5111049400
ref: 1
TUBE,FORK,INNER
€ 0.00
2
5112149200
ref: 2
PISTON
5112149200
€ 18.00
3
5113049400
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 218.00
4
5114049400
ref: 4
TUBE,FORK,LEFT,OUTER
€ 239.50
5
5115349001
ref: 5
OIL SEAL,FRONT FORK
5115349001
€ 16.50
6
5115640301
ref: 6
RING,STOPPER
5115640301
€ 4.50
7
0910808142
ref: 7
BOLT,STUD
0910808142
€ 3.00
8
5119549071
ref: 8
PIECE,OIL LOCK
€ 12.00
9
5114716510
ref: 9
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
10
5114841310
ref: 10
GASKET (NAS)
5114841310
€ 2.50
11
5117349002
ref: 11
SEAL,DUST
5117349002
€ 13.00
12
0211204087
ref: 12
SCREW
0211204087
€ 1.50
13
5118303010
ref: 13
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
14
5114649000
ref: 14
CYLINDER,FRONT FORK
€ 78.00
15
5119649000
ref: 15
RING,PISTON
5119649000
€ 9.00
16
5117749000
ref: 16
SPRING,REBOUND
5117749000
€ 7.50
17
5117149000
ref: 17
SPRING,FRONT FORK
€ 42.00
18
5117238010
ref: 18
GUIDE,FRONT FORK SPRING C
5117238010
€ 9.50
19
5117645100
ref: 19
SPACER,SPRING
€ 0.00
20
5135141211
ref: 20
CAP
5135141211
€ 41.00
21
5129449000
ref: 21
CAP,VALVE
5129449000
€ 22.50
22
5129349001
ref: 22
VALVE
5129349001
€ 18.00
23
5111741211
ref: 23
O RING
5111741211
€ 6.50
24
5111716310
ref: 24
O RING
5111716310
€ 4.50
25
5113249000
ref: 25
HOLDER,AXLE
5113249000
€ 30.00
26
0914008005
ref: 26
NUT (8MM)
0914008005
€ 1.50
27
0832121088
ref: 27
LOCK WASHER
0832121088
€ 2.00
28
0832221088
ref: 28
WASHER
0832221088
€ 2.00
