HANDLEBAR
GS1100G 1983 (D) GENERAL EXPORT (E01)

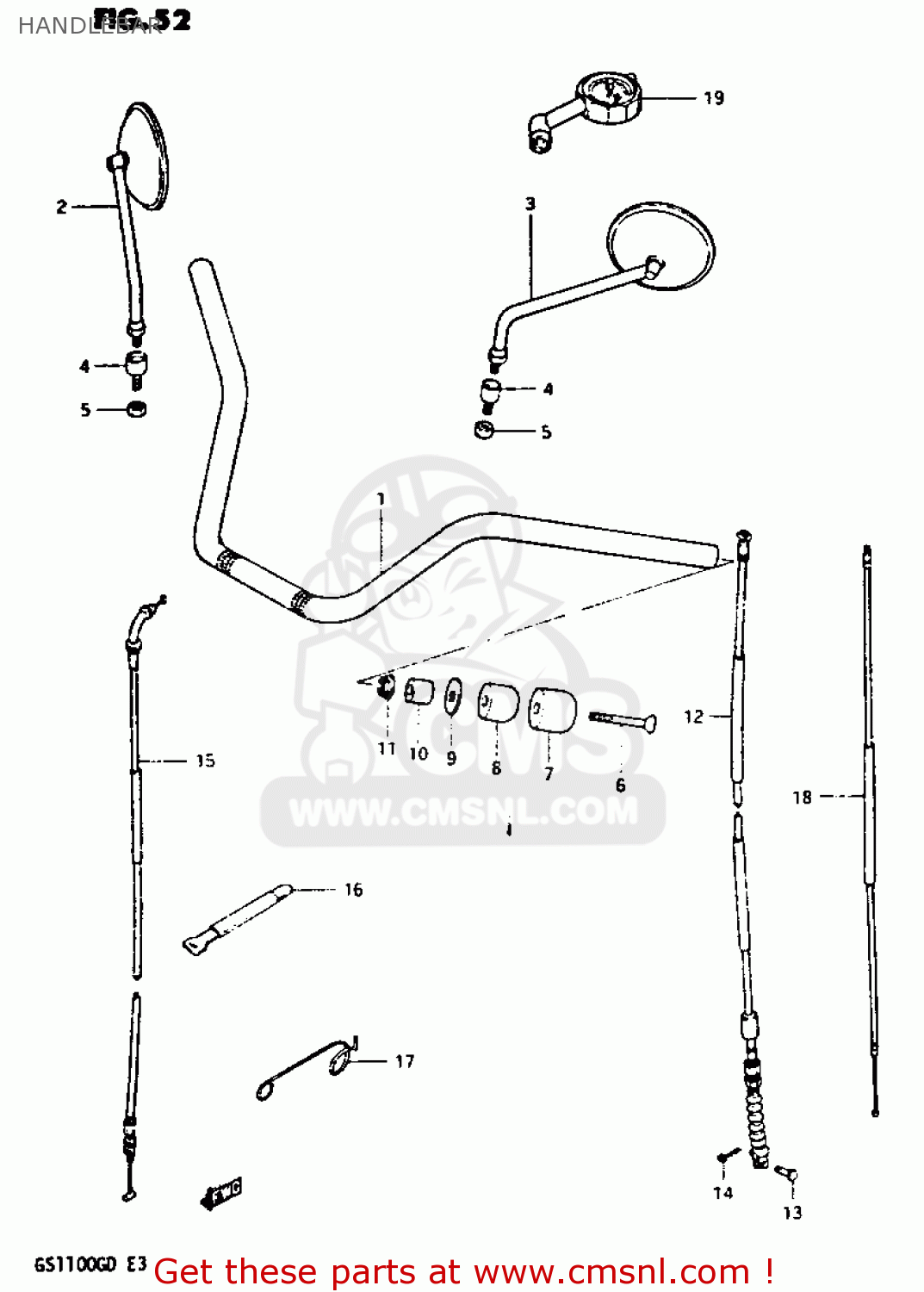

Handlebar diagram GS1100G 1983 (D) GENERAL EXPORT (E01)
HANDLEBAR GS1100G 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5611149430
ref: 1
HANDLEBAR
€ 55.50
2
5650045101
ref: 2
MIRROR ASSEMBLY,RIGHT
€ 59.50
3
5660045101
ref: 3
MIRROR ASSEMBLY,LEFT
€ 209.00
4
5670031001
ref: 4
CUSHION,REAR VIEW MIRROR
€ 18.00
5
0831022107
ref: 5
NUT
€ 2.50
6
0213206657
ref: 6
SCREW
€ 2.00
7
5627449400
ref: 7
CAP,BALANCER
€ 83.00
8
5627149420
ref: 8
BALANCER,HANDLE
€ 19.50
9
5627534400
ref: 9
SPACER,BALANCER
€ 2.50
10
5627244500
ref: 10
EXPANDER,HANDLE BALANCER
€ 3.00
11
0915906024
ref: 11
NUT
€ 2.00
12
5820049400
ref: 12
CABLE ASSY,CLUTCH
€ 39.00
13
0920006011
ref: 13
PIN(L:15)
€ 2.50
14
0411120158
ref: 14
PIN
€ 1.50
15
5830044201
ref: 15
CABLE ASSY,THROTTLE NO.1
€ 33.50
16
0940300069
ref: 16
CLAMP
€ 8.50
17
5862645101
ref: 17
GUIDE,CLUTCH CABLE
€ 4.50
18-1
5841047X00
ref: 18-1
MODEL Z
CABLE,STARTER
€ 14.00
18-2
5841047X00
ref: 18-2
MODEL D
CABLE,STARTER
€ 14.00
19
9620041330
ref: 19
GAUGE ASSY,AIR PRESSURE
€ 77.50
