REAR FENDER

GS1100G 1983 (D) GENERAL EXPORT (E01)

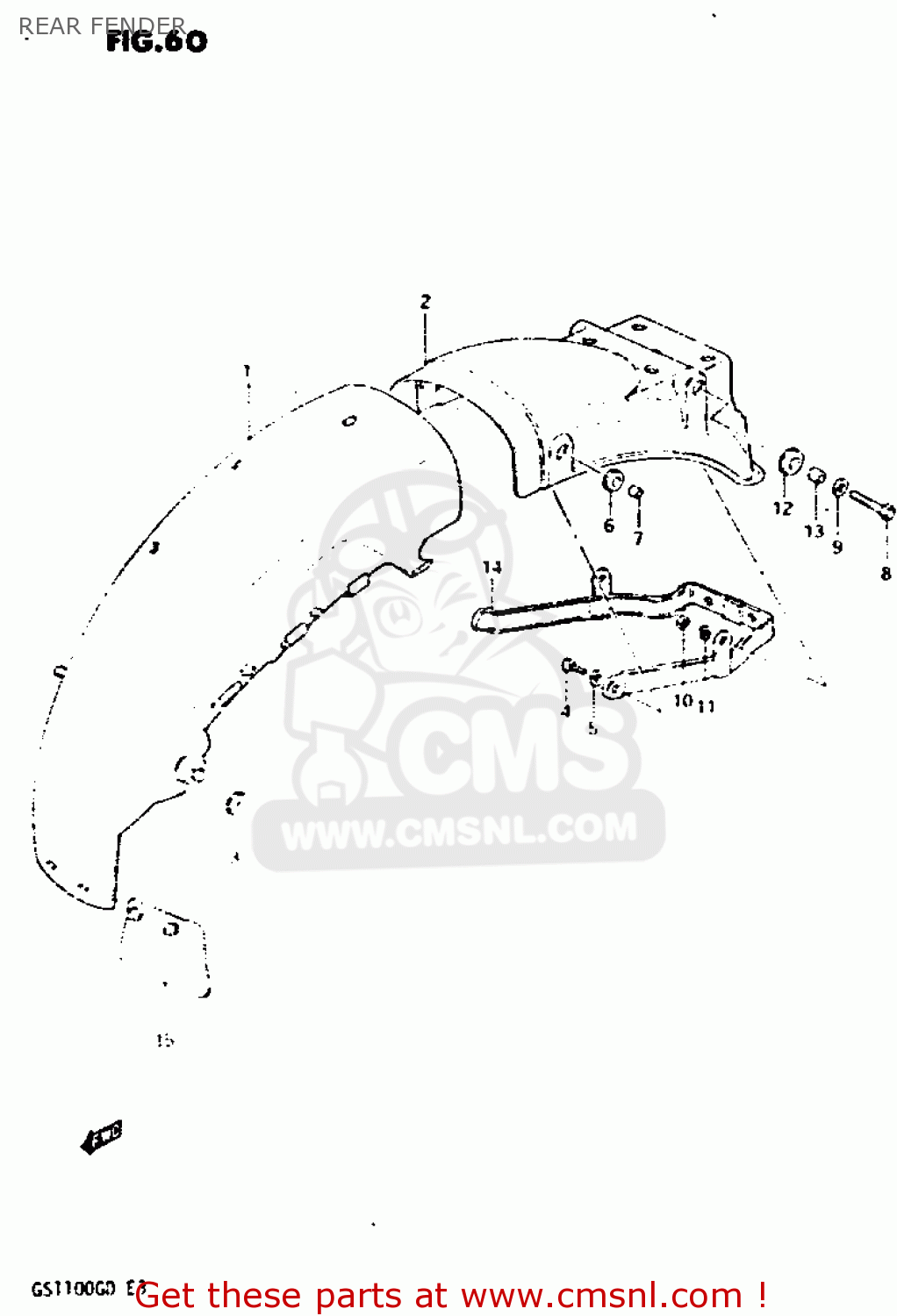

Rear fender diagram GS1100G 1983 (D) GENERAL EXPORT (E01)

REAR FENDER GS1100G 1983 (D) GENERAL EXPORT (E01)

REAR FENDER GS1100G 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

6311249004
ref: 1

BODY,RR FENDER FR

€ 82.50

2-1

6311349420291
ref: 2-1
MODEL Z

FENDER,REAR

€ 85.00

2-2

6311349420291
ref: 2-2
MODEL D

FENDER,REAR

€ 85.00

3

0932008013
ref: 3

CUSHION

€ 4.00

4

0150006167
ref: 4

BOLT

€ 3.00

5

0832101067
ref: 5

WASHER,LOCK

€ 2.50

6

0932008021
ref: 6

CUSHION

€ 4.00

7

0918006038
ref: 7

SPACER(6.1X9X7.5)

€ 2.00

8

0110708307
ref: 8

BOLT

€ 2.50

9

0832211088
ref: 9

WASHER

€ 2.00

10

0831012088
ref: 10

NUT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

0932012011
ref: 12

CUSHION

€ 3.00

13

0918008021
ref: 13

SPACER (8.2X12X7.5)

€ 3.00

14

6312049400
ref: 14

REINFORCEMENT,REAR FENDER

€ 30.50

15

6341131900
ref: 15

GUIDE,RR FENDER MUD

€ 8.00
