REAR COMBINATION LAMP

GS1100G 1983 (D) GENERAL EXPORT (E01)

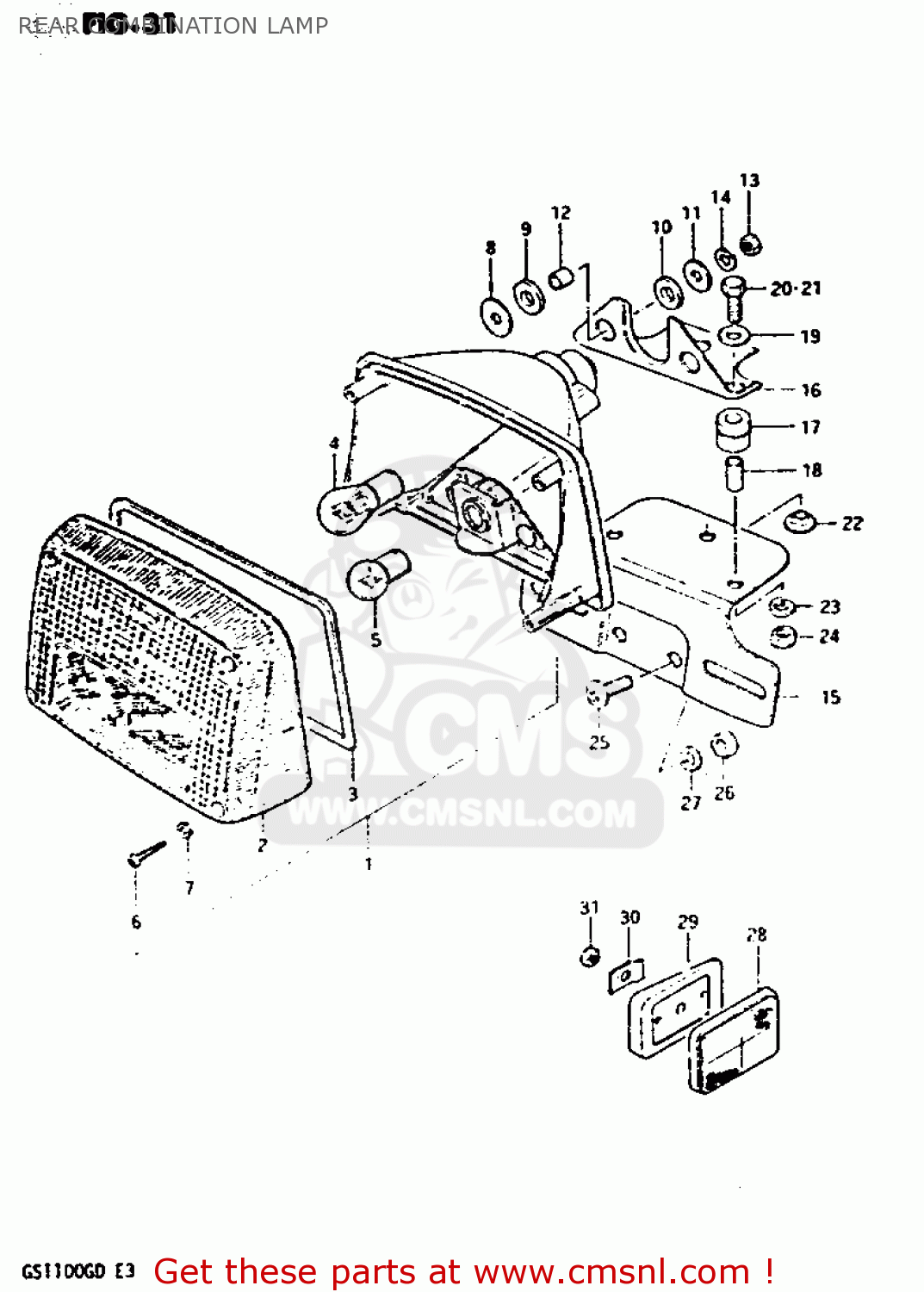

Rear combination lamp diagram GS1100G 1983 (D) GENERAL EXPORT (E01)

REAR COMBINATION LAMP GS1100G 1983 (D) GENERAL EXPORT (E01)
REAR COMBINATION LAMP GS1100G 1983 (D) GENERAL EXPORT (E01)
REAR COMBINATION LAMP GS1100G 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3571049030
ref: 1
LAMP ASSEMBLY,REAR COMBINATION
€ 245.00
2
3571249031
ref: 2
LENS
3571249031
€ 43.50
3
3571349030
ref: 3
GASKET (NAS)
3571349030
€ 12.50
4
0947112035
ref: 4
BULB(12V23W)
0947112035
€ 5.50
5
0947112141
ref: 5
BULB(12V8W)
0947112141
€ 7.00
6
3562749030
ref: 6
SCREW,REAR COMBINATION LAMP
3562749030
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0916006006
ref: 8
WASHER
0916006006
€ 2.00
9
0932009004
ref: 9
CUSHION
0932009004
€ 2.50
10
0932009003
ref: 10
CUSHION
0932009003
€ 2.00
11
0916006012
ref: 11
WASHER(6,5X22X1.6)
€ 2.00
12
0918006038
ref: 12
SPACER(6.1X9X7.5)
0918006038
€ 2.00
13
0831000067
ref: 13
NUT
0831000067
€ 2.50
14
0832101067
ref: 14
WASHER,LOCK
0832101067
€ 2.50
15
3592749031
ref: 15
PLATE,REAR LICENSE
€ 17.00
16-1
3592849031
ref: 16-1
MODEL Z
BRACKET,LICENSE PLATE
€ 6.50
16-2
3572645100
ref: 16-2
MODEL D
BRACKET,REAR COMBINATION LAMP
€ 0.00
17
3579449000
ref: 17
MODEL Z
CUSHION, BRACKET
3579449000
€ 18.00
18
0918006087
ref: 18
MODEL Z
SPACER (6.4X9X15.5)
0918006087
€ 4.00
19
0916006006
ref: 19
MODEL Z
WASHER
0916006006
€ 2.00
20-1
0150006307
ref: 20-1
MODEL Z
BOLT
0150006307
€ 2.50
20-2
0150006167
ref: 20-2
MODEL D
BOLT
0150006167
€ 3.00
21-1
0150006257
ref: 21-1
MODEL Z
BOLT
0150006257
€ 2.00
21-2
0150006127
ref: 21-2
MODEL D
BOLT
0150006127
€ 2.00
22
0916906016
ref: 22
WASHER
0916906016
€ 1.50
23
0832101067
ref: 23
WASHER,LOCK
0832101067
€ 2.50
24
0831000067
ref: 24
NUT
0831000067
€ 2.50
25
0214206167
ref: 25
SCREW
0214206167
€ 2.00
26
0831000067
ref: 26
NUT
0831000067
€ 2.50
27
0832101067
ref: 27
WASHER,LOCK
0832101067
€ 2.50
28
3597045130
ref: 28
REFLECTOR,REFLEX
€ 0.00
29
3597745130
ref: 29
SPACER
€ 0.00
30
3599745130
ref: 30
WASHER
€ 0.00
31
0831000057
ref: 31
NUT
0831000057
€ 2.50
