FRAME COVER (MODEL Z)

GS1100G 1983 (D) GENERAL EXPORT (E01)

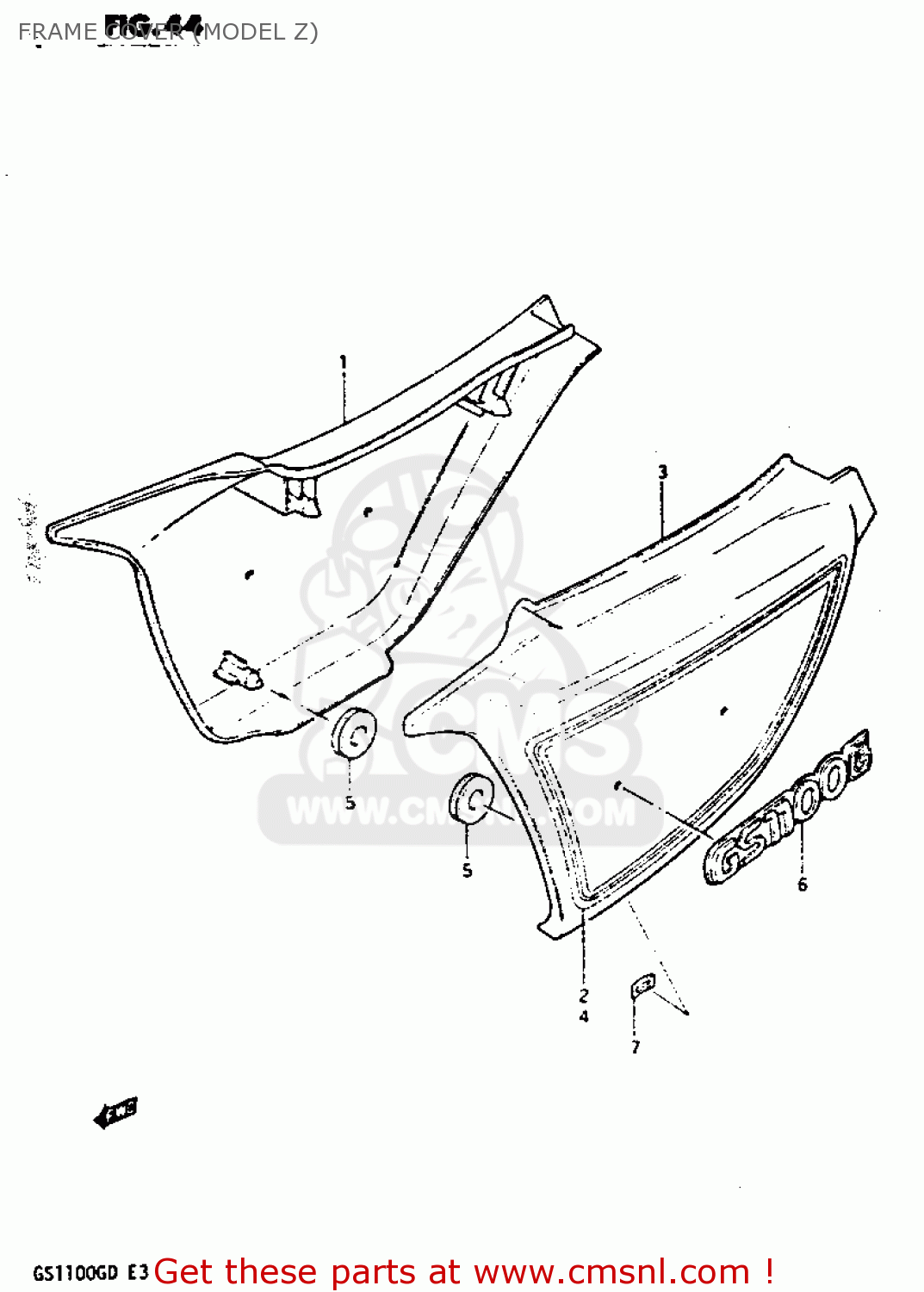

Frame cover (model z) diagram GS1100G 1983 (D) GENERAL EXPORT (E01)

FRAME COVER (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)

FRAME COVER (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4711045110
ref: 1-1

COVER,FRAME,R

€ 76.50

1-2

471104941014A
ref: 1-2

COVER,FRAME,RIGHT

€ 76.50

2

6813049410764
ref: 2

TAPE SET,FRAME COVER

€ 0.00

3-1

4721045110
ref: 3-1

COVER,FRAME,L

€ 76.50

3-2

4721045110
ref: 3-2

COVER,FRAME,L

€ 76.50

4

6814049410764
ref: 4

TAPE SET,FRAME COVER

€ 0.00

5

0932008018
ref: 5

CUSHION

€ 4.00

6

6813149450
ref: 6

EMBLEM,FRAME COVER

€ 23.00

7

0914803002
ref: 7

NUT

€ 3.00
