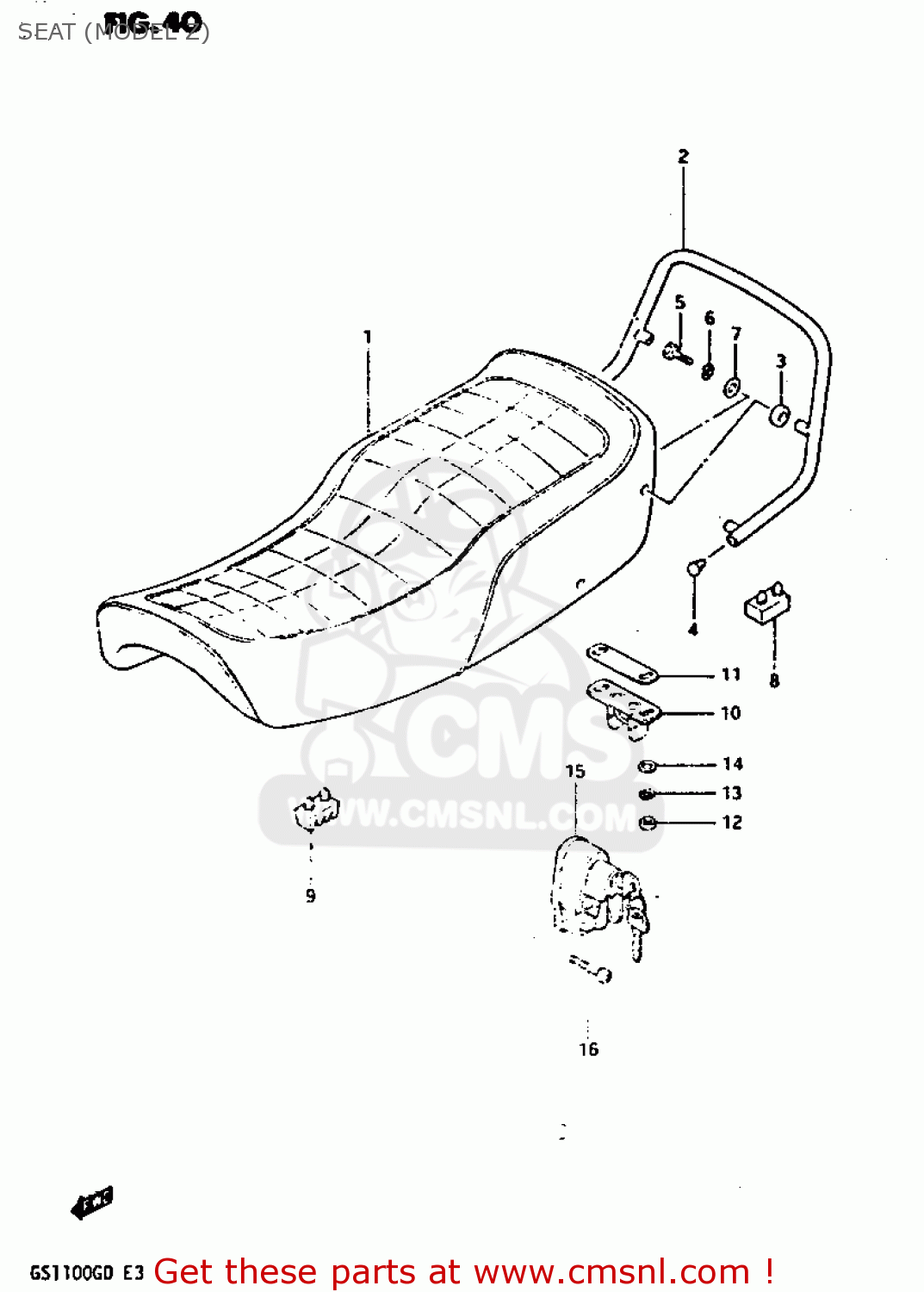

SEAT (MODEL Z)

GS1100G 1983 (D) GENERAL EXPORT (E01)

Seat (model z) diagram GS1100G 1983 (D) GENERAL EXPORT (E01)

SEAT (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)

SEAT (MODEL Z) GS1100G 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

451004941048H
ref: 1

SEAT ASSEMBLY

€ 360.00

2

4621049400
ref: 2

HANDLE,PILLION RIDER

€ 55.50

3

4621249000
ref: 3

CUSHION

€ 15.00

4

4621349000
ref: 4

END,SHEET HANDLE

€ 5.50

5

0150008207
ref: 5

BOLT

€ 3.00

6

0832121088
ref: 6

LOCK WASHER

€ 2.00

7

0832221088
ref: 7

WASHER

€ 2.00

8

0932108012
ref: 8

CUSHION(40X23X12.7)

€ 4.50

9

4514945330
ref: 9

CUSHION,SUPPORT(50X25X32)

€ 2.00

10

4521044101
ref: 10

STRIKER,SEAT LOCK

€ 32.50

11

4521744100
ref: 11

SHIM,SEAT LOCK STRIKER

€ 4.50

12

0831022067
ref: 12

NUT 6MM

€ 2.50

13

0832101067
ref: 13

WASHER,LOCK

€ 2.50

14

0832201067
ref: 14

WASHER

€ 2.00

15

9570034210
ref: 15

LOCK ASSY,HELMET

€ 59.00

16

0711005258
ref: 16

BOLT

€ 2.00
