ELECTRICAL (MODEL D)

GS1100G 1983 (D) GENERAL EXPORT (E01)

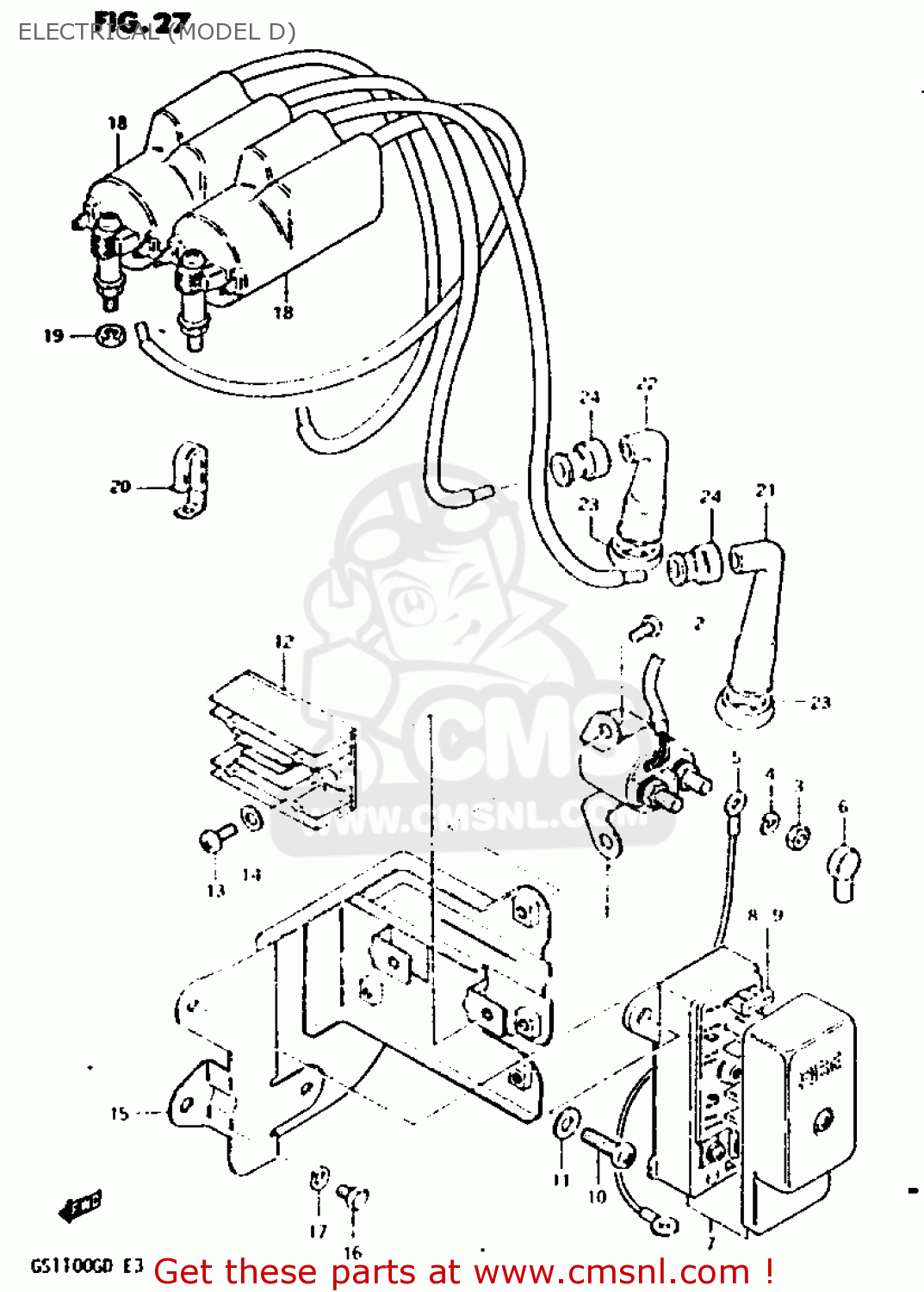

Electrical (model d) diagram GS1100G 1983 (D) GENERAL EXPORT (E01)

ELECTRICAL (MODEL D) GS1100G 1983 (D) GENERAL EXPORT (E01)
ELECTRICAL (MODEL D) GS1100G 1983 (D) GENERAL EXPORT (E01)
ELECTRICAL (MODEL D) GS1100G 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3180015501
ref: 1
RELAY ASSY,STARTING MOTOR
3180015501
€ 78.00
2
0912806004
ref: 2
SCREW(6X10)
0912806004
€ 1.50
3
0831022067
ref: 3
NUT 6MM
0831022067
€ 2.50
4
0832101067
ref: 4
WASHER,LOCK
0832101067
€ 2.50
5
3385049410
ref: 5
CABLE,STARTING MOTOR
€ 24.00
6-1
3186111500
ref: 6-1
CAP,TERMINAL
3186111500
€ 4.50
6-2
3186149400
ref: 6-2
HAVE SLIT
CAP,STARTER RELAY
€ 0.00
7
3674049401
ref: 7
BOX ASSEMBLY,FUSE
3674049401
€ 69.50
8
0948110101
ref: 8
FUSE(10A)
0948110101
€ 2.50
9
0948115101
ref: 9
FUSE(15A)
0948115101
€ 1.50
10
0211206128
ref: 10
SCREW 6X12
0211206128
€ 2.00
11
0832201067
ref: 11
WASHER
0832201067
€ 2.00
12
3280009300
ref: 12
RECTIFIER ASSEMBLY
3280009300
€ 306.50
13
0211206207
ref: 13
SCREW
0211206207
€ 2.00
14
0832201067
ref: 14
WASHER
0832201067
€ 2.00
15
4741045120
ref: 15
HOLDER COMP,ELECTRONIC PARTS
€ 0.00
16
0150006127
ref: 16
BOLT
0150006127
€ 2.00
17
0832101067
ref: 17
WASHER,LOCK
0832101067
€ 2.50
18
3341034210
ref: 18
COIL ASSEMBLY,IGNITION
€ 182.00
19
0831000067
ref: 19
NUT
0831000067
€ 2.50
20
0940306307
ref: 20
CLAMP
0940306307
€ 4.50
21
3351045010
ref: 21
CAP ASSY,SPARK PLUG
3351045010
€ 23.00
22
3351043010
ref: 22
CAP,SPARK PLUG
3351043010
€ 11.50
23
3354169010
ref: 23
SEAL,SPARK PLUG
3354169010
€ 5.00
24
3354298000
ref: 24
SEAL,SPARK PLU
3354298000
€ 4.50
