REAR WHEEL
GS1100G 1983 (D) GENERAL EXPORT (E01)

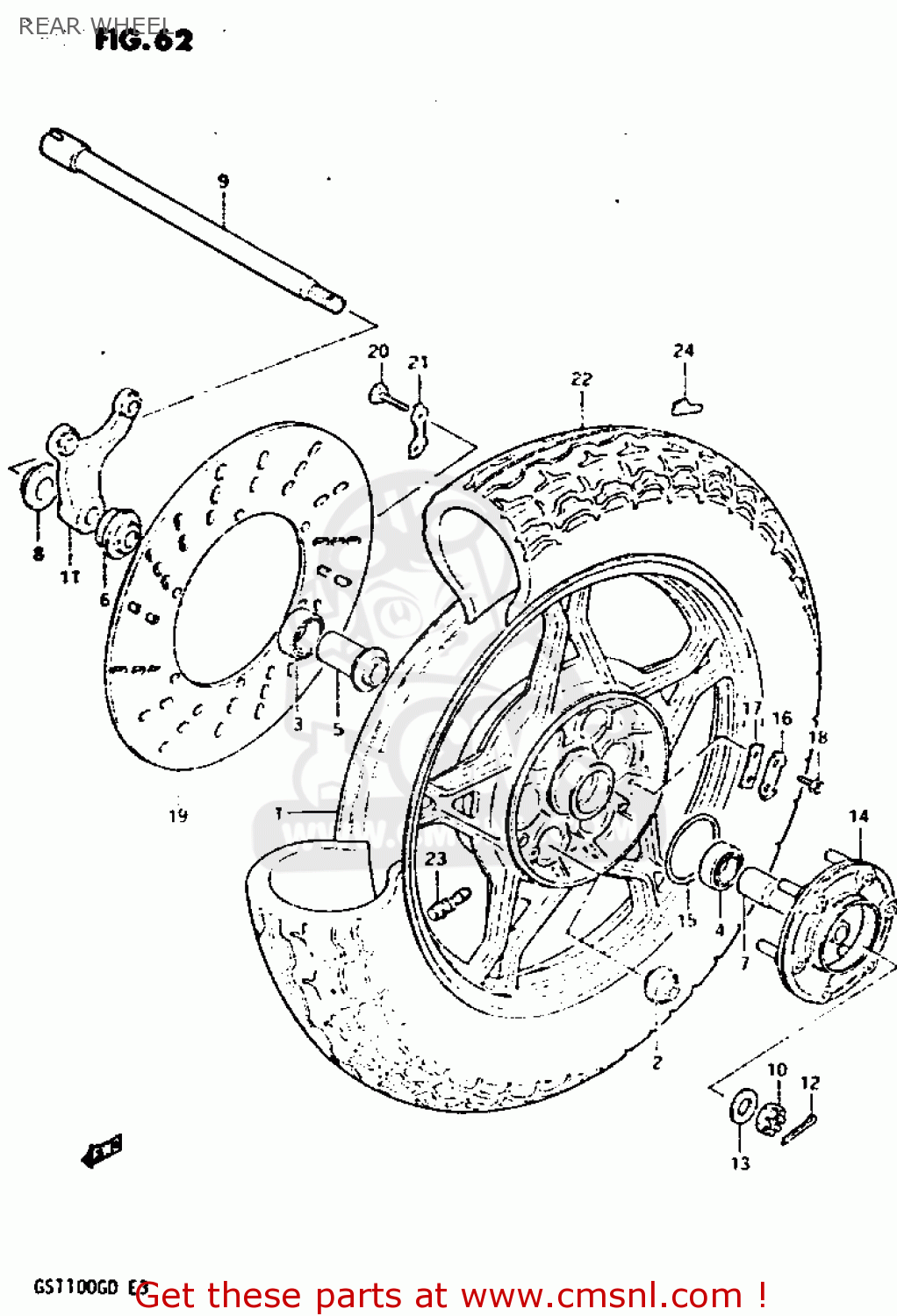

Rear wheel diagram GS1100G 1983 (D) GENERAL EXPORT (E01)
REAR WHEEL GS1100G 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
6410049810291
ref: 1
CASTING WHEEL,REAR 2.50
€ 559.00
2
0931912019
ref: 2
BUSH
€ 10.50
3
0812363037
ref: 3
BEARING
€ 16.00
4
0814363037
ref: 4
BEARING
€ 23.00
5
6473034200
ref: 5
SPACER,REAR HUB BEARING
€ 0.00
6
6474047011
ref: 6
SPACER,REAR CALIPER BRACKET
€ 11.50
7
6477245101
ref: 7
SPACER,REAR AXLE,LEFT
€ 17.50
8
6474134301
ref: 8
SPACER,REAR AXLE,RIGHT
€ 6.50
9
6471145300
ref: 9
AXLE,REAR
€ 57.50
10
0914116001
ref: 10
NUT
€ 6.50
11
6972147001
ref: 11
BRACKET,RR,CALIPER
€ 27.50
12
0411140308
ref: 12
PIN,COTTER
€ 1.50
13
0916017018
ref: 13
WASHER (17.5X36X3.2)
€ 2.00
14
6468045113
ref: 14
JOINT ASSY,RR HUB DRIVEN
€ 181.50
15
0928065003
ref: 15
O RING(D:2.1,ID:65)
€ 2.50
16-1
0916906030
ref: 16-1
MODEL Z
WASHER
€ 2.00
16-2
0916906030
ref: 16-2
MODEL D
WASHER
€ 2.00
17
6467745110
ref: 17
WASHER,THRUST(T:1.6)
€ 2.50
18-1
0912806005
ref: 18-1
MODEL Z
SCREW
€ 2.50
18-2
0911906049
ref: 18-2
MODEL D
BOLT(6X16)
€ 1.50
19
6921134250
ref: 19
DISC,RR BRAKE
€ 716.00
20
0910008140
ref: 20
BOLT(8X25)
€ 2.00
21
0916908027
ref: 21
WASHER
€ 41.00
22-1
6510045110
ref: 22-1
TIRE
€ 0.00
22-2
6510045130
ref: 22-2
TIRE
€ 0.00
23
5522045100
ref: 23
VALVE ASSEMBLY,WHEEL RIM,J
€ 15.50
24-1
5541145100
ref: 24-1
BALANCER,WHEEL
€ 7.00
24-2
5541245100
ref: 24-2
BALANCER,WHEEL
€ 4.00
24-3
5541345100
ref: 24-3
BALANCER,WHEEL
€ 6.50
