BATTERY

GS1100GL 1983 (D) USA (E03)

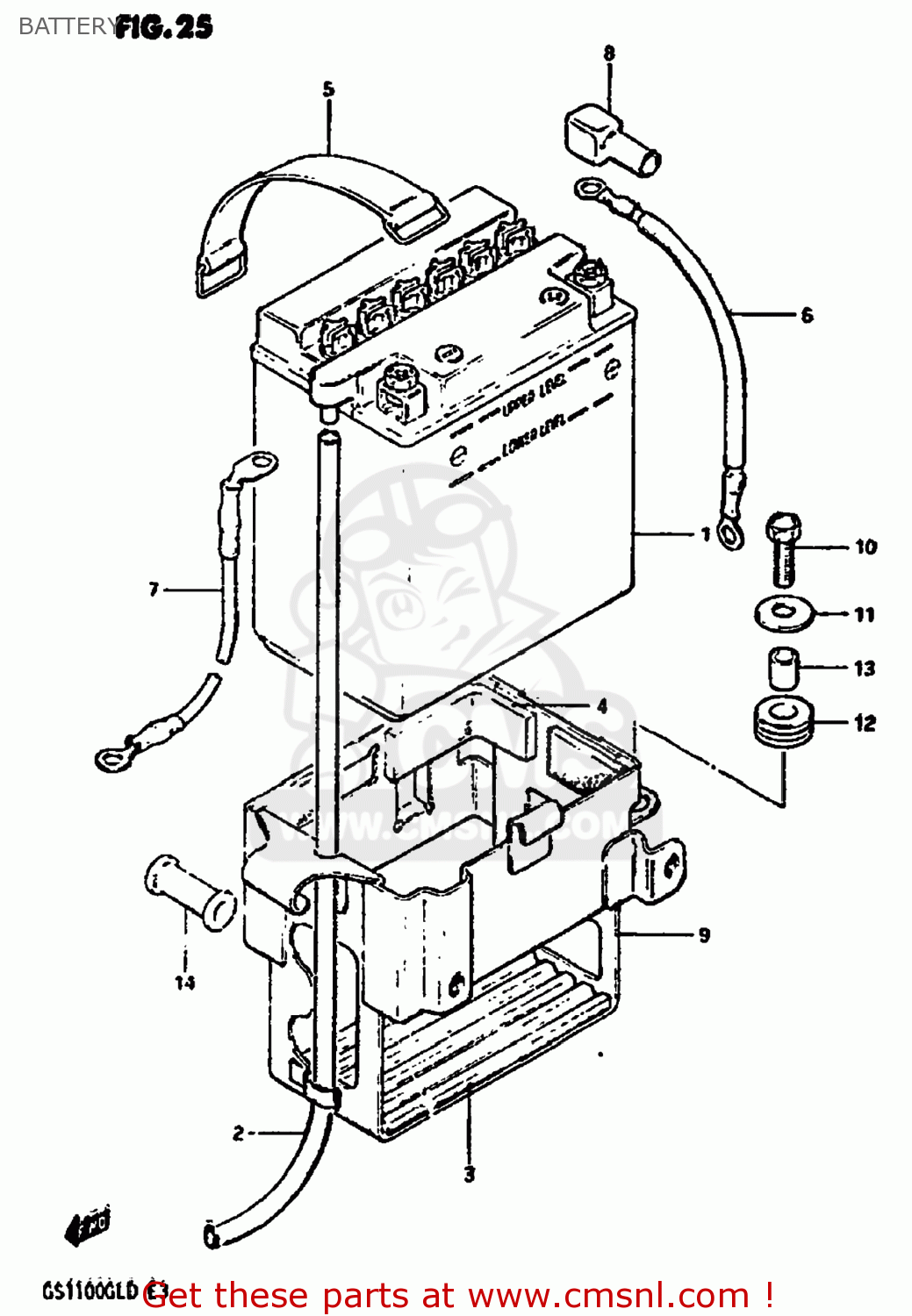

Battery diagram GS1100GL 1983 (D) USA (E03)

BATTERY GS1100GL 1983 (D) USA (E03)

BATTERY GS1100GL 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

2

3368031003
ref: 2
33680-16A10

HOSE,BATTERY EXHAUST

€ 4.50

3

3365131000
ref: 3

PROTECTOR,BATTERY

€ 29.00

4

3365249000
ref: 4

PROTECTOR(20X90)X4

€ 2.00

5

0946200007
ref: 5

BAND

€ 5.00

6

3382049400
ref: 6
33860-05550

WIRE,BATTERY PLUS

€ 10.50

7

3385049400
ref: 7

LEAD WIRE,BATTERY(-)

€ 14.50

8

3362445000
ref: 8

CAP,TERMINAL

€ 5.50

9

4154049400
ref: 9

HOLDER,BATTERY

€ 0.00

10

0110706168
ref: 10
01500-06167

BOLT, UPPER

€ 3.00

11

0916006012
ref: 11
09160-06054

WASHER(6,5X22X1.6)

€ 2.00

12

0932008013
ref: 12

CUSHION

€ 4.00

13

0918006001
ref: 13

SPACER(6.2X8.3X5.7)

€ 2.00

14

0932008022
ref: 14

CUSHION

€ 3.50
