STEERING STEM (MODEL Z)
GS1100GL 1983 (D) USA (E03)

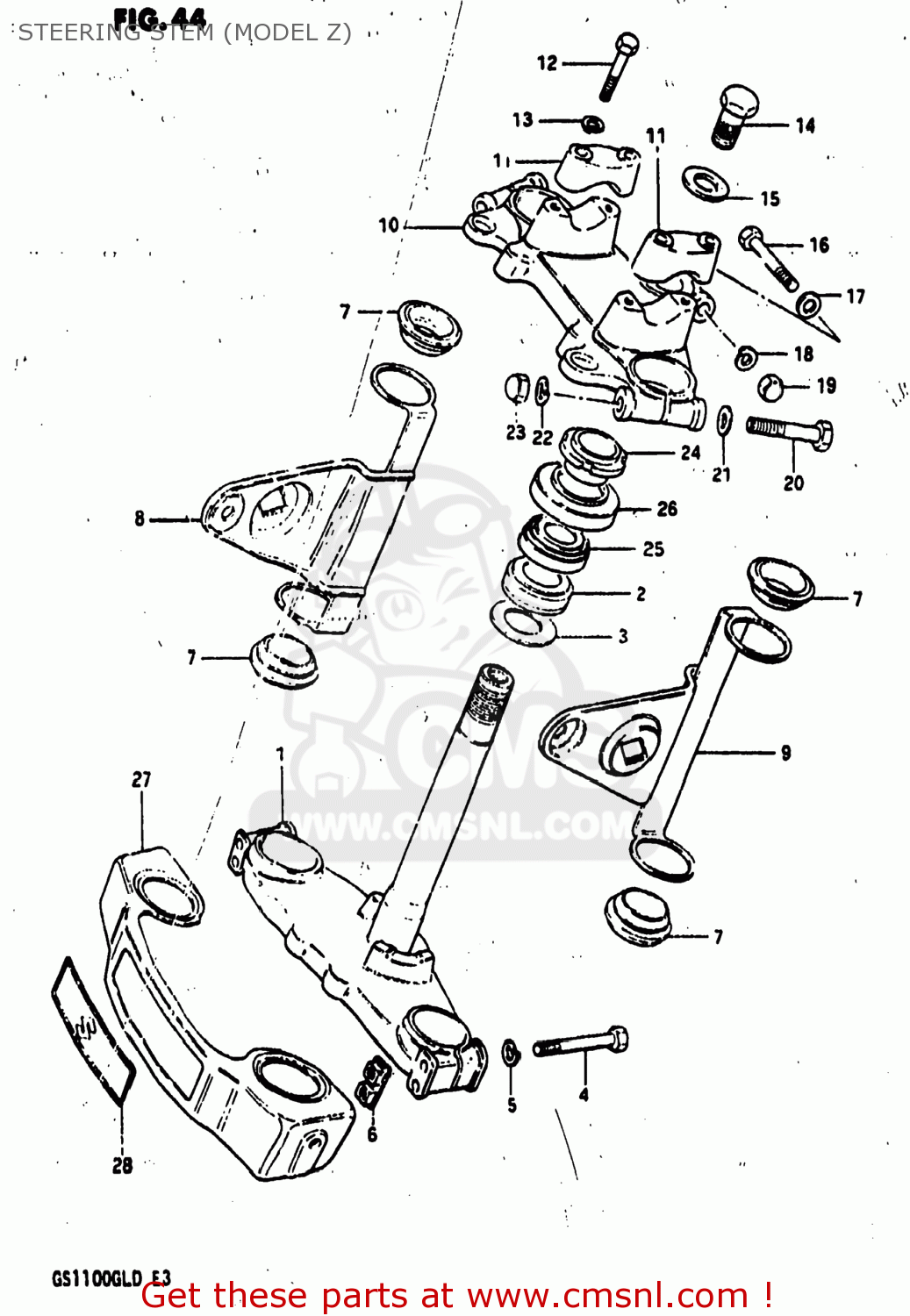

Steering stem (model z) diagram GS1100GL 1983 (D) USA (E03)
STEERING STEM (MODEL Z) GS1100GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141049165291
ref: 1
STEM,STEERING
€ 313.50
2
0926530005
ref: 2
09265-30009
BEARING
€ 49.50
3
0821120402
ref: 3
WASHER
€ 3.00
4
0110708558
ref: 4
01500-08557
BOLT 8X55
€ 3.00
5
0832121088
ref: 5
08321-01087
LOCK WASHER
€ 2.00
6
5145849000
ref: 6
NUT,FR FORK INNER TUBE
€ 5.00
7
5155349000
ref: 7
51553-34300
CUSHION,HEADLAMP BRACKET
€ 4.50
8
5153045380
ref: 8
BRACKET,HEADLAMP,RIGHT
€ 26.50
9
5154045380
ref: 9
BRACKET,HEADLAMP,LEFT
€ 44.50
10
5131145380291
ref: 10
HEAD,STEERING STEM
€ 79.50
11
5621129320291
ref: 11
HOLDER,HANDLE(BLACK)
€ 12.00
12
0120408357
ref: 12
BOLT
€ 3.50
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
5135345380
ref: 14
51352-43530
NUT,STEM HEAD
€ 8.50
15
5135645380
ref: 15
WASHER,STEERING STEM
€ 3.50
16
0110708508
ref: 16
01500-08507
BOLT 8X50
€ 3.00
17
0832221088
ref: 17
08322-01087
WASHER
€ 2.00
18
0832131088
ref: 18
08321-01087
WASHER,LOCK,8.
€ 2.00
19
0831311088
ref: 19
08313-10087
NUT
€ 2.50
20
0110710558
ref: 20
01500-1055A
BOLT 10X55
€ 3.50
21
0832221108
ref: 21
08322-01107
WASHER
€ 2.50
22
0832131108
ref: 22
08321-01107
LOCK WASHER
€ 2.00
23
0831311108
ref: 23
08313-10107
NUT, LOWER LH
€ 2.50
24
5163134200
ref: 24
NUT,STEERING STEM
€ 23.00
25
0926525008
ref: 25
09265-25019
TAPER,ROLLER BEARING
€ 48.50
26
5164340502
ref: 26
DUST SEAL,STEERING UPR
€ 8.00
27
5187145301
ref: 27
COVER,FRONT FORK
€ 37.50
28
6821145300
ref: 28
EMBLEM,FR FORK COVER
€ 16.50
