RIGHT HANDLE SWITCH

GS1100GL 1983 (D) USA (E03)

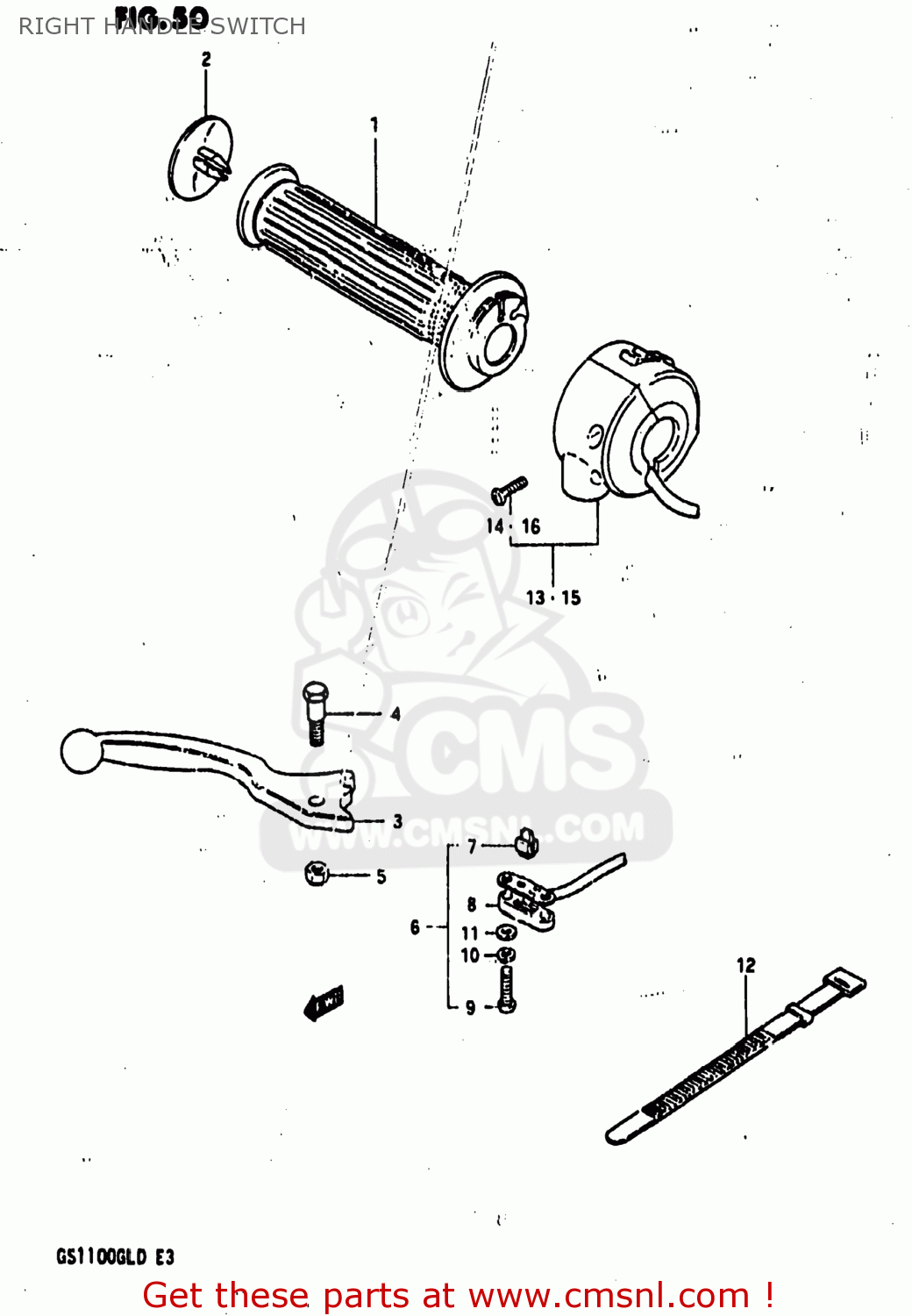

Right handle switch diagram GS1100GL 1983 (D) USA (E03)

RIGHT HANDLE SWITCH GS1100GL 1983 (D) USA (E03)

RIGHT HANDLE SWITCH GS1100GL 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5711044011
ref: 1
57110-49510

GRIP,THROTTLE

€ 33.00

2

5721549100
ref: 2

CAP,GRIP END

€ 3.50

3

5742049101
ref: 3

LEVER,BRAKE

€ 36.50

4

5743118621
ref: 4

BOLT

€ 8.00

5

0831921068
ref: 5
08319-2106A

NUT 6MM

€ 2.00

6

5746049300
ref: 6
57460-45500

SWITCH ASSEMBLY

€ 40.00

7

5746518601
ref: 7

CONTACT,SWITCH

€ 4.50

8

5748133010
ref: 8

COVER,FR BK TERMINAL BASE

€ 19.50

9

0912503105
ref: 9
09125-03105-XC0

SCREW

€ 2.50

10

0832121038
ref: 10
09162-03001

LOCK WASHER

€ 1.50

11

0832221038
ref: 11
08322-01037

WASHER

€ 2.00

12

0940712402
ref: 12

CLAMP(L:120)

€ 3.00

13

3720049590
ref: 13
37200-49591

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 98.50

14

3759149210
ref: 14
09125-05102

SCREW

€ 2.50

15

3720049570
ref: 15
37200-49571

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 90.50

16

3759149210
ref: 16
09125-05102

SCREW

€ 2.50
