GS1100GL 1983 (D) USA (E03)

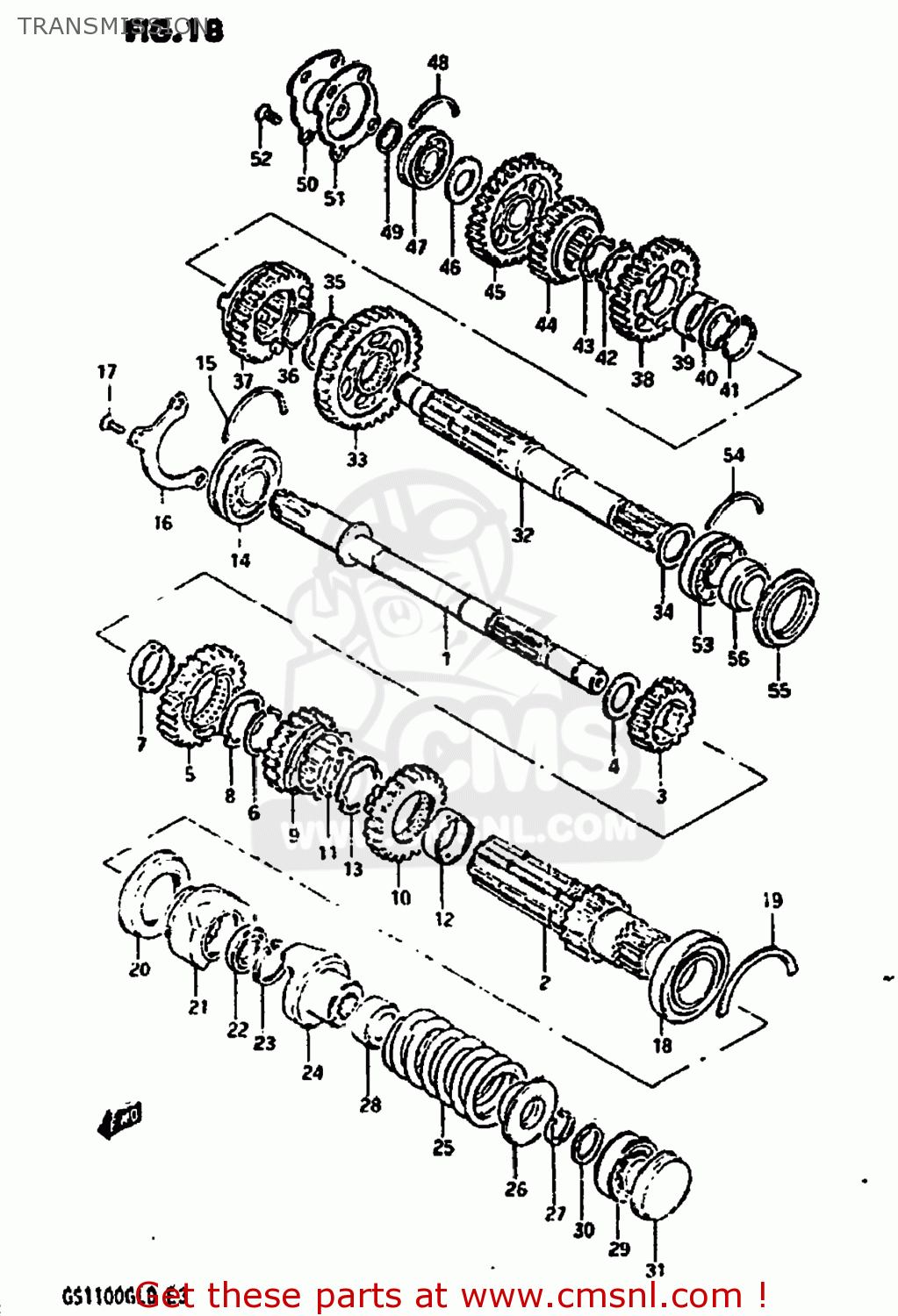

Transmission diagram GS1100GL 1983 (D) USA (E03)
TRANSMISSION GS1100GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412145102
ref: 1
24121-45103
SHAFT,COUNTER
€ 197.00
2
2414145102
ref: 2
SHAFT,OUTER COUNTER
€ 83.00
3
2422145110
ref: 3
GEAR,SECOND DRIVE
€ 0.00
4
0916021010
ref: 4
WASHER (21X35X2)
€ 9.50
5
2425045102
ref: 5
GEAR,5TH DRIVE(NT:26)
€ 110.50
6
0938032002
ref: 6
RING,SNAP
€ 3.50
7
2424245100
ref: 7
SPACER,DRIVE GEAR
€ 14.50
8
2424345101
ref: 8
LOCK WASHER,5TH DR GEAR SPACER
€ 4.50
9
2423145103
ref: 9
24231-45104
GEAR,THIRD DRIVE
€ 90.50
10
2424045100
ref: 10
GEAR,FOURTH DRIVE
€ 76.00
11
0938032002
ref: 11
RING,SNAP
€ 3.50
12
2424245100
ref: 12
SPACER,DRIVE GEAR
€ 14.50
13
2424345101
ref: 13
LOCK WASHER,5TH DR GEAR SPACER
€ 4.50
14
0926225051
ref: 14
09262-25105
BEARING(25X62X17)
€ 59.50
15
0939062006
ref: 15
09390-62012
C-RING
€ 5.00
16
2474145000
ref: 16
RETAINER,CNTR SHAFT BEARING
€ 8.00
17
0212206168
ref: 17
02122-06167
SCREW
€ 2.00
18
0926232003
ref: 18
BALL BEARING 32X58X13
€ 60.00
19
0939052004
ref: 19
C-RING
€ 5.50
20
0928340005
ref: 20
SEAL,OIL(40X58X7)
€ 17.50
21
2252145101
ref: 21
DOG,OUTPUT CAM
€ 45.50
22
0928320032
ref: 22
SEAL,OIL(20.6X31X6)
€ 13.50
23
0833121329
ref: 23
08331-41329
CIRCLIP
€ 2.00
24
2251145102
ref: 24
DOG,INPUT CAM
€ 8.50
25
0944035002
ref: 25
SPRING
€ 19.00
26
2253145101
ref: 26
STOPPER,CAM DOG SLIDING
€ 14.50
27
2254145100
ref: 27
STOPPER,CAM DOG
€ 5.50
28
2255145101
ref: 28
GUIDE,CAM DOG SPRING
€ 4.00
29
0926217008
ref: 29
09262-17023
BEARING
€ 14.00
30
0918017052
ref: 30
SPACER (17X21X3.5)
€ 4.50
31
0924140003
ref: 31
PLUG
€ 10.00
32
2413149100
ref: 32
SHAFT,DRIVE
€ 81.00
33
2431045100
ref: 33
GEAR,FIRST DRIVEN
€ 81.50
34
0821125383
ref: 34
WASHER, LH
€ 2.50
35
0916728001
ref: 35
WASHER,LOCK
€ 3.00
36
0833111289
ref: 36
08331-3128A
CIRCLIP
€ 2.50
37
2434145100
ref: 37
GEAR,FOURTH DRIVEN
€ 52.00
38
2433145100
ref: 38
24331-49202
GEAR,THIRD DRIVEN
€ 139.50
39
2433249000
ref: 39
BUSH,3RD DRIVEN GEAR
€ 13.50
40
0916728001
ref: 40
WASHER,LOCK
€ 3.00
41
0833111289
ref: 41
08331-3128A
CIRCLIP
€ 2.50
42
0916928001
ref: 42
WASHER
€ 3.00
43
0916728002
ref: 43
WASHER,LOCK
€ 3.00
44
2435145110
ref: 44
GEAR,FIFTH DRIVEN
€ 92.50
45
2432045110
ref: 45
GEAR,SECOND DRIVEN
€ 86.00
46
0821120341
ref: 46
WASHER
€ 2.00
47
0926220049
ref: 47
BEARING(20X47X14)
€ 33.50
48
0939047003
ref: 48
C RING
€ 3.00
49
0938020007
ref: 49
CIRCLIP
€ 3.00
50
2476145100
ref: 50
PLATE,DRIVESHAFT
€ 6.50
51
2476245000
ref: 51
24762-45000-H17
GASKET,DRIVESHAFT PLATE (MCA)
€ 2.50
52
0212206168
ref: 52
02122-06167
SCREW
€ 2.00
53
0926225055
ref: 53
09262-25030
BEARING
€ 40.00
54
0939052002
ref: 54
C RING
€ 3.00
55
0928335015
ref: 55
SEAL,OIL(35X52X6)
€ 14.50
56
2413645100
ref: 56
SPACER,DRIVESHAFT,LEFT
€ 13.50
