CYLINDER HEAD COVER (MODEL Z)

GS1100GL 1983 (D) USA (E03)

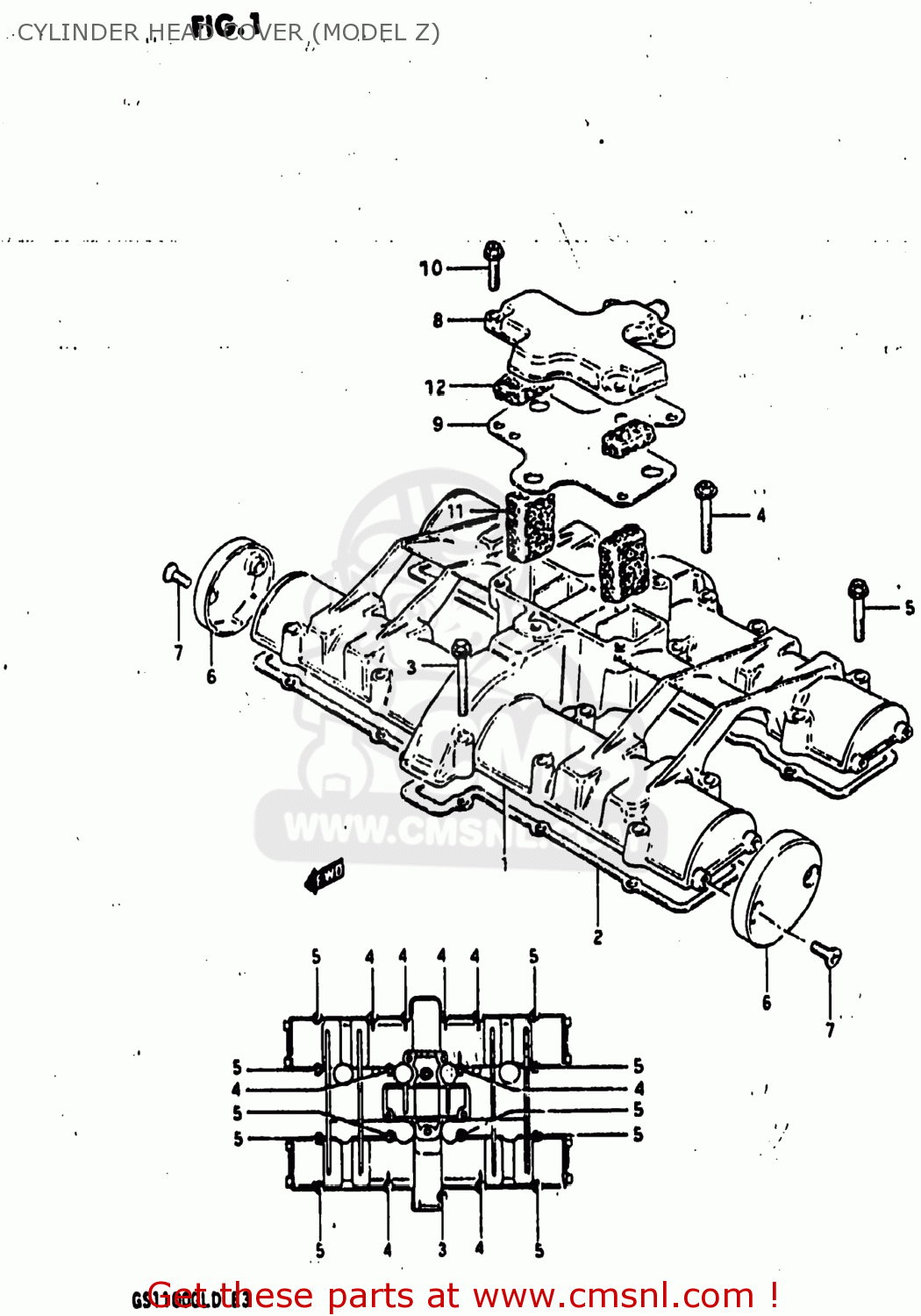

Cylinder head cover (model z) diagram GS1100GL 1983 (D) USA (E03)

CYLINDER HEAD COVER (MODEL Z) GS1100GL 1983 (D) USA (E03)

CYLINDER HEAD COVER (MODEL Z) GS1100GL 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117149020
ref: 1
11171-49030

COVER,CYLINDER HEAD

€ 146.50

2

1117349020
ref: 2
11173-49022

GASKET,CYLINDER HEAD COVER (MCA)

€ 49.00

3

0151706458
ref: 3
01550-06457

BOLT,UNDER

€ 2.50

4

0151706408
ref: 4
01550-06407

BOLT

€ 2.50

5

0151706358
ref: 5
01550-06357

BOLT 6X35

€ 2.50

6

1117449000
ref: 6

CAP,CYLINDER HEAD COVER

€ 38.00

7

0912705013
ref: 7

SCREW(5X12)

€ 2.50

8

1117647012
ref: 8
11176-47042

COVER,BREATHER

€ 32.50

9

1117747001
ref: 9
11177-47001-H17

GASKET (MCA)

€ 19.50

10

0151706258
ref: 10
01550-06257

BOLT

€ 2.50

11

1118645000
ref: 11
11186-45001

COVER,BREATHER

€ 5.50

12

1118745000
ref: 12
11187-45001

SEPARATOR,OIL BREATHER

€ 6.50
