SEAT (MODEL Z)
GS1100GL 1983 (D) USA (E03)

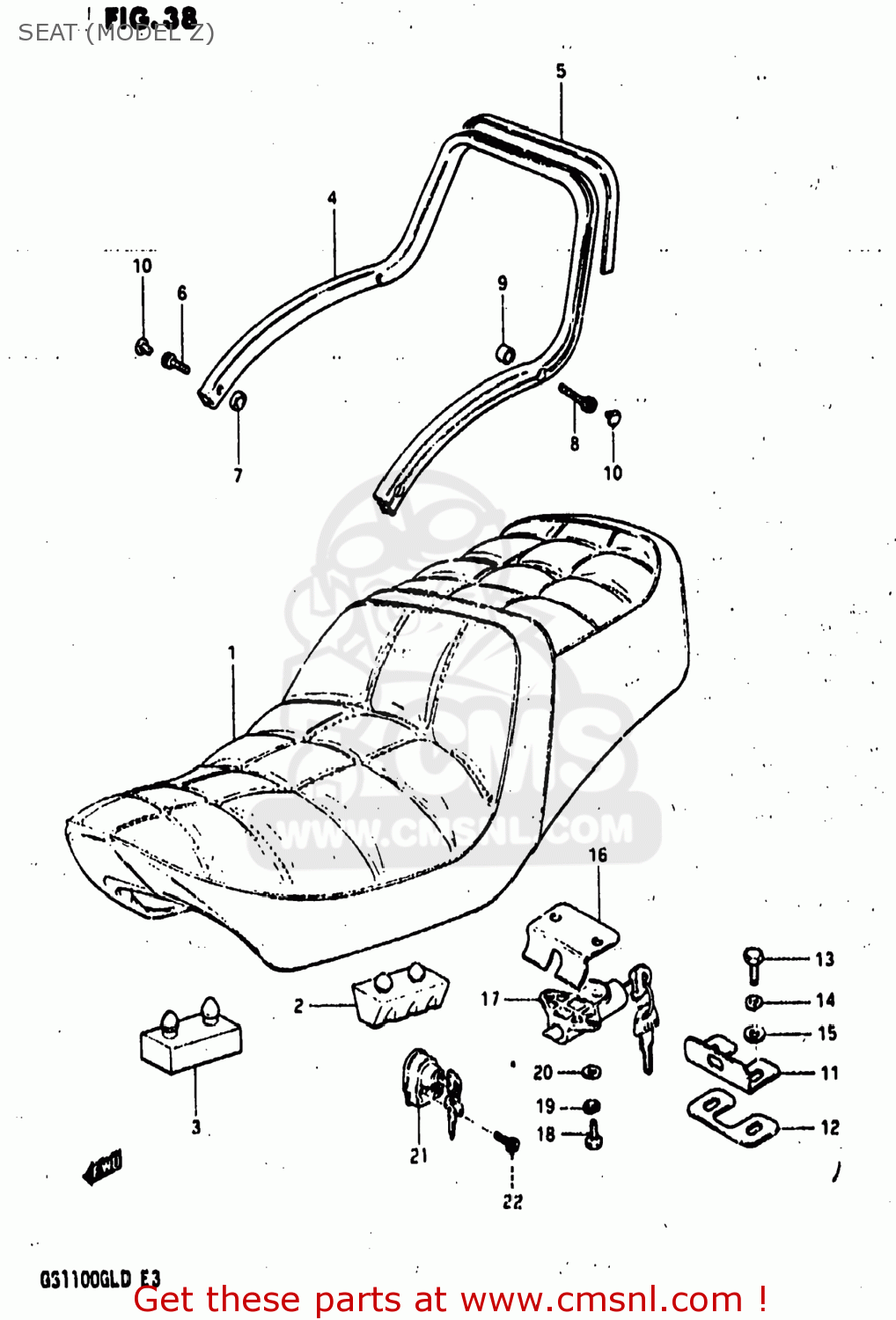

Seat (model z) diagram GS1100GL 1983 (D) USA (E03)
SEAT (MODEL Z) GS1100GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
451004533247G
ref: 1
45100-45332-48G
SEAT ASSEMBLY
€ 153.50
2
4514945330
ref: 2
CUSHION,SUPPORT(50X25X32)
€ 2.00
3
0932108006
ref: 3
CUSHION
€ 3.00
4
4621045341
ref: 4
46210-45370
HANDLE,PILLION RIDER
€ 121.50
5
4621445340
ref: 5
46214-34410
RUBBER,PILLION RIDER HANDLE
€ 17.50
6
0910608010
ref: 6
07130-0825B
BOLT
€ 3.50
7
4621945340
ref: 7
SPACER,REAR
€ 2.50
8
0910608003
ref: 8
07130-08407
BOLT
€ 3.50
9
4621845340
ref: 9
SPACER,REAR
€ 4.50
10
0925006004
ref: 10
CAP(OD:14.5)
€ 1.50
11
4521347200
ref: 11
STRIKER,SEAT LOCK
€ 5.50
12
4521747200
ref: 12
09160-08043
SHIM,SEAT LOCK STRIKER
€ 1.50
13
0110706168
ref: 13
01500-06167
BOLT, UPPER
€ 3.00
14
0832121068
ref: 14
08321-01067
LOCK WASHER
€ 2.50
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
4521449105
ref: 16
PLATE,SEAT LOCK
€ 13.00
17
9570047820
ref: 17
LOCK ASSEMBLY,SEAT
€ 61.50
18
0110706208
ref: 18
01500-06207
BOLT
€ 2.00
19
0832121068
ref: 19
08321-01067
LOCK WASHER
€ 2.50
20
0832211068
ref: 20
08322-0106B
WASHER 6MM
€ 2.00
21
9570034210
ref: 21
LOCK ASSY,HELMET
€ 59.00
22
0910605008
ref: 22
07130-0525B
BOLT 5X25
€ 2.00
