FRONT FORK (MODEL D)
GS1100GL 1983 (D) USA (E03)

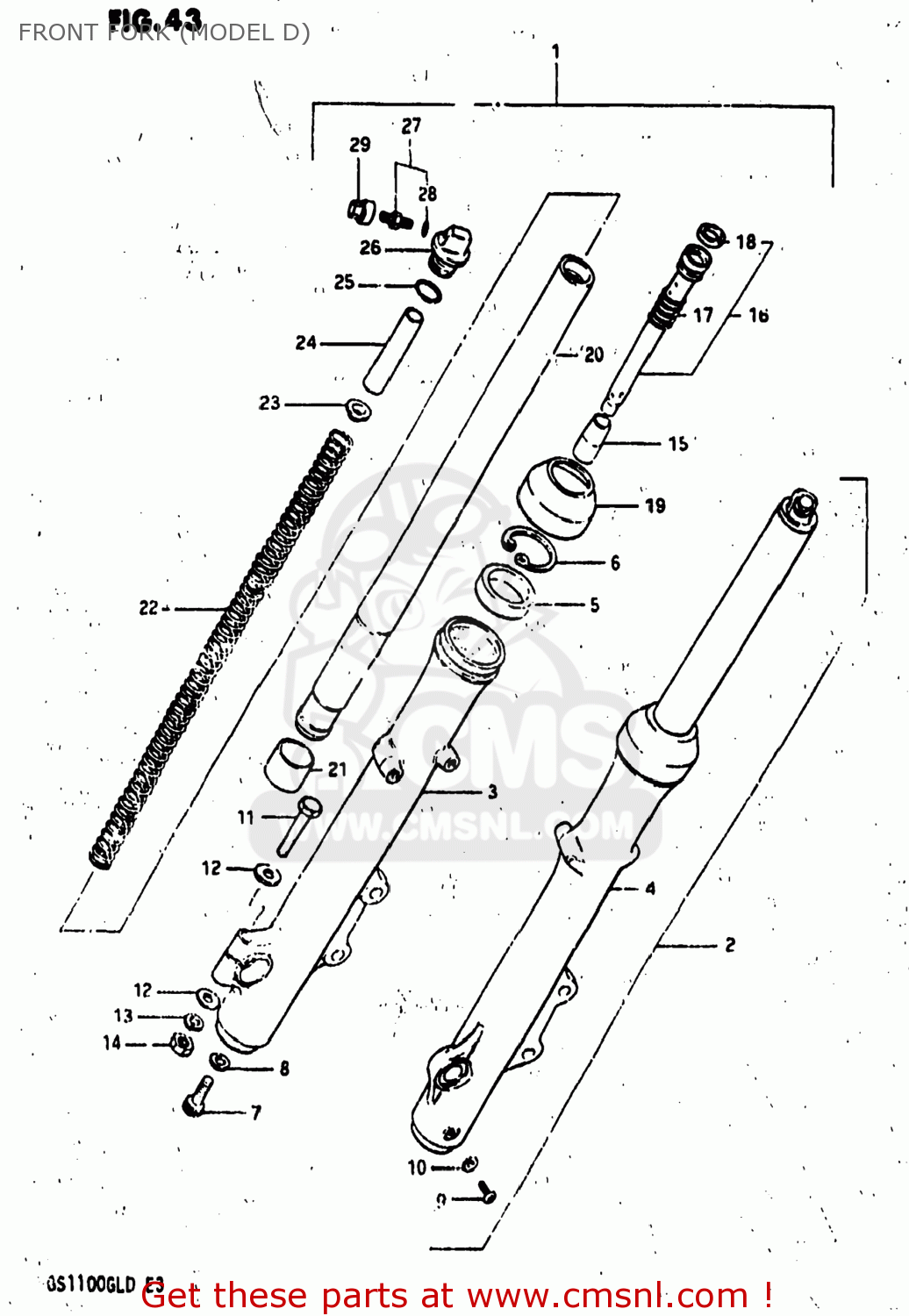

Front fork (model d) diagram GS1100GL 1983 (D) USA (E03)
FRONT FORK (MODEL D) GS1100GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110345380
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 245.50
2
5110445660
ref: 2
DAMPER ASSEMBLY,LEFT
€ 655.50
3
5113049130
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 130.00
4
5114049130
ref: 4
TUBE,OUTER,LEFT
€ 193.50
5
5115349001
ref: 5
51153-08C20
OIL SEAL,FRONT FORK
€ 16.50
6
5115640301
ref: 6
RING,STOPPER
€ 4.50
7
5114716510
ref: 7
BOLT,FORK CYLINDER(10X25)
€ 3.50
8
5114841310
ref: 8
GASKET (NAS)
€ 2.50
9
0211204088
ref: 9
02112-04087
SCREW
€ 1.50
10
5118303010
ref: 10
GASKET,DRAIN,PLUG (NAS)
€ 3.00
11
0110708508
ref: 11
01500-08507
BOLT 8X50
€ 3.00
12
0832221088
ref: 12
08322-01087
WASHER
€ 2.00
13
0832131088
ref: 13
08321-01087
WASHER,LOCK,8.
€ 2.00
14
0831012088
ref: 14
08310-00087
NUT
€ 2.00
15
5119549071
ref: 15
PIECE,OIL LOCK
€ 12.00
16
5114649100
ref: 16
CYLINDER,FRONT FORK
€ 78.50
17
5117749000
ref: 17
SPRING,REBOUND
€ 7.50
18
5119649000
ref: 18
RING,PISTON
€ 9.00
19
5117349002
ref: 19
SEAL,DUST
€ 13.00
20
5111049270
ref: 20
TUBE,INNER
€ 356.00
21
5112149200
ref: 21
PISTON
€ 18.00
22
5117149100
ref: 22
SPRING,FRONT FORK
€ 38.50
23
5117238010
ref: 23
GUIDE,FRONT FORK SPRING C
€ 9.50
24
5117638010
ref: 24
COLLAR,SPRING
€ 0.00
25
5111716310
ref: 25
O RING
€ 4.50
26
5135149400
ref: 26
51351-41211
CAP,FORK INNER TUBE
€ 41.00
27
5129349001
ref: 27
VALVE
€ 18.00
28
5111741211
ref: 28
O RING
€ 6.50
29
5129449000
ref: 29
CAP,VALVE
€ 22.50
