GS1100GL 1983 (D) USA (E03)

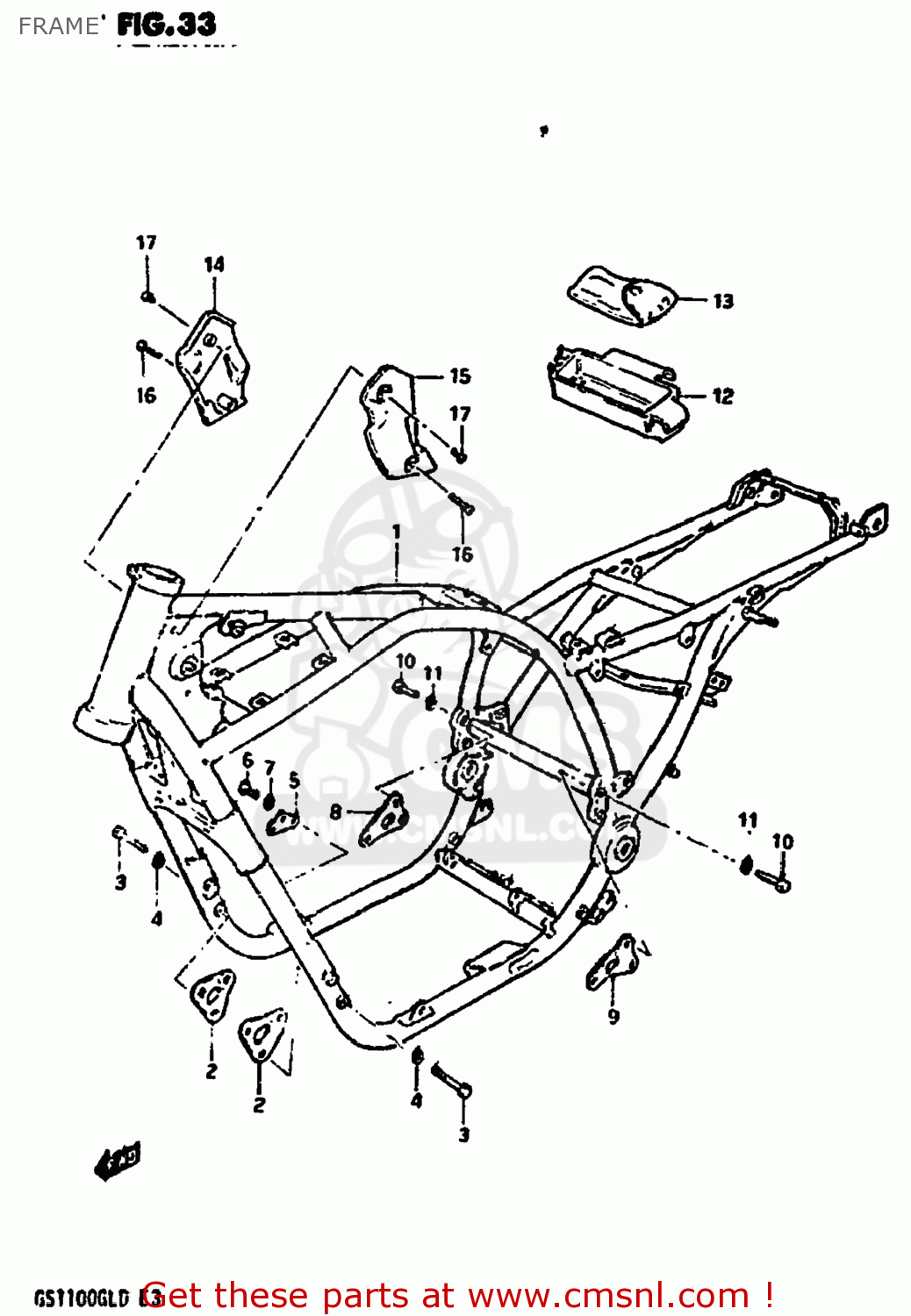

Frame diagram GS1100GL 1983 (D) USA (E03)
FRAME GS1100GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110049250019
ref: 1-1
FRAME
€ 620.50
1-2
4110049251019
ref: 1-2
FRAME
€ 793.00
2
4191045101019
ref: 2
PLATE,ENGINE MOUNTING
€ 8.50
3
0110708658
ref: 3
01500-0865B
BOLT
€ 3.00
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
4199345000019
ref: 5
PLATE,ENGINE MOUNTING
€ 5.50
6
0110708168
ref: 6
01500-0816B
BOLT
€ 2.00
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8
4197045100019
ref: 8
PLATE,ENGINE MOUNTING
€ 0.00
9
4198045350019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708408
ref: 10
01500-0840A
BOLT 8X40
€ 3.00
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
4155145300
ref: 12
HOLDER,TOOL
€ 7.50
13
0980000231
ref: 13
09800-21025
TOOL SET
€ 43.00
14
5187645300
ref: 14
COVER,FRAME HEAD,RIGHT
€ 9.50
15
5188645300
ref: 15
COVER,FRAME HEAD,LEFT
€ 8.00
16
0214205458
ref: 16
02142-05453
SCREW, LOWER
€ 2.00
17
0214205208
ref: 17
02142-05207
(5X20) CROSS SCREW
€ 2.00
