SECONDARY DRIVE GEAR
GS1100GL 1983 (D) USA (E03)

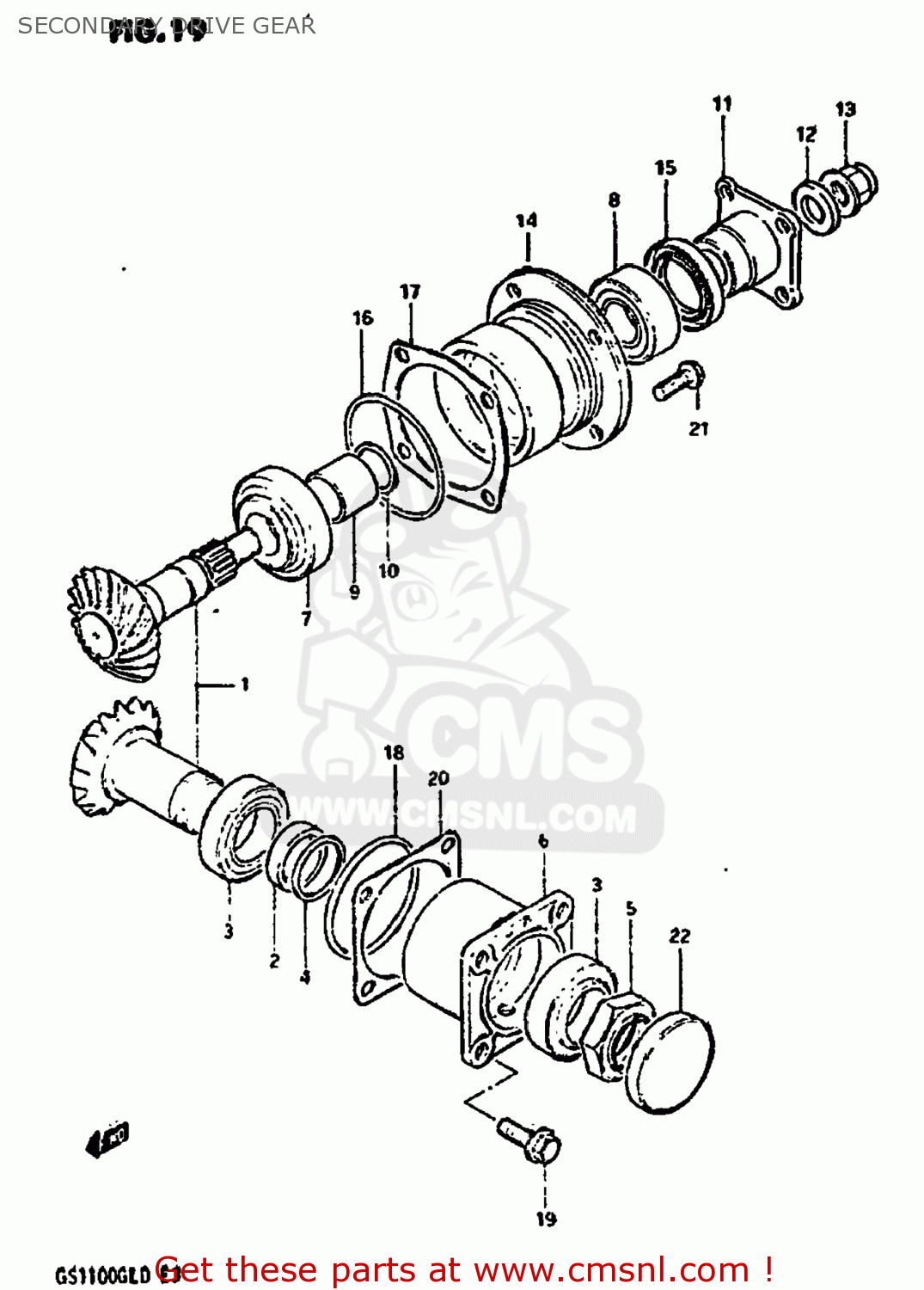

Secondary drive gear diagram GS1100GL 1983 (D) USA (E03)
SECONDARY DRIVE GEAR GS1100GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
2490049820
ref: 0
24901-49000
2ND GEAR & HOUSING SET
€ 538.00
1
2490049811
ref: 1
24911-49001
SECONDARY GEAR SET
€ 1,687.50
2
0918032003
ref: 2
SPACER (32.4X38X12.5)
€ 6.00
3
0926532001
ref: 3
BEARING(32X58X17)
€ 46.00
4-1
0918132001
ref: 4-1
SHIM (32X38X1.6)
€ 4.50
4-2
0918132002
ref: 4-2
SHIM(32X38X1.62)
€ 4.00
4-3
0918132003
ref: 4-3
SHIM (32X38X1.64)
€ 3.00
4-4
0918132004
ref: 4-4
SHIM (32X38X1.66)
€ 3.50
4-5
0918132005
ref: 4-5
SHIM (32X38X1.68)
€ 3.00
4-6
0918132006
ref: 4-6
SHIM (32X38X1.7)
€ 4.00
4-7
0918132007
ref: 4-7
SHIM (32X38X1.8)
€ 3.00
4-8
0918132008
ref: 4-8
SHIM (32X38X1.9)
€ 4.00
4-9
0918132009
ref: 4-9
SHIM(32X38X2)
€ 4.50
5
0915932001
ref: 5
NUT
€ 9.50
6
2493149001
ref: 6
HOUSING,SECONDARY DRIVE
€ 57.00
7
0926525012
ref: 7
TAPER,ROLLER BEARING
€ 52.50
8
0926525011
ref: 8
09265-25024
BEARING
€ 44.00
9
0918025056
ref: 9
SPACER (25.2X30X40)
€ 7.00
10-1
0918125006
ref: 10-1
SHIM (25X30X1.6)
€ 3.00
10-2
0918125007
ref: 10-2
SHIM (25X30X1.62)
€ 3.00
10-3
0918125008
ref: 10-3
SHIM (25X30X1.64)
€ 3.00
10-4
0918125009
ref: 10-4
SHIM (25X30X1.66)
€ 3.00
10-5
0918125010
ref: 10-5
SHIM (25X30X1.68)
€ 3.00
10-6
0918125011
ref: 10-6
SHIM (25X30X1.7)
€ 3.00
10-7
0918125012
ref: 10-7
SHIM (25X30X1.8)
€ 3.00
10-8
0918125013
ref: 10-8
SHIM (25X30X1.9)
€ 3.00
10-9
0918125014
ref: 10-9
SHIM (25X30X2
€ 3.00
11
2495149100
ref: 11
FLANGE,UNIVERSAL JOINT
€ 68.00
12
0916014021
ref: 12
WASHER(14X29X4)
€ 5.00
13
0915914010
ref: 13
NUT
€ 11.00
14
2494145101
ref: 14
HOUSING,SECONDARY DRIVE
€ 76.50
15
0928335018
ref: 15
SEAL,OIL(35X52X9)
€ 13.00
16
0928070005
ref: 16
O RING(D:3.1,ID:69.4)
€ 6.50
17-1
2494545101
ref: 17-1
SHIM,DRIVEN GEAR HOUSING
€ 4.00
17-2
2494545100
ref: 17-2
SHIM,DRIVEN GEAR HOUSING
€ 4.00
17-3
2494545102
ref: 17-3
SHIM,DRIVEN GEAR HOUSING
€ 4.50
17-4
2494545103
ref: 17-4
SHIM,DRIVEN GEAR HOUSING
€ 4.50
17-5
2494545104
ref: 17-5
SHIM,DRIVEN GEAR HOUSING
€ 4.00
18
0928063004
ref: 18
O RING(D:2.4,ID:62.6)
€ 9.50
19
0151708208
ref: 19
01550-08207
BOLT
€ 3.00
20-1
2493545101
ref: 20-1
SHIM,SECONDARY DRIVE
€ 5.00
20-2
2493545100
ref: 20-2
SHIM,SECONDARY DRIVE
€ 13.00
20-3
2493545102
ref: 20-3
SHIM,SECONDARY DRIVE
€ 13.00
20-4
2493545103
ref: 20-4
SHIM,DRIVE GEAR HOUSING
€ 5.50
20-5
2493545104
ref: 20-5
SHIM,SECONDARY DRIVE
€ 4.50
21
0151708258
ref: 21
01550-08257
BOLT
€ 2.50
22
0924158001
ref: 22
PLUG
€ 15.00
