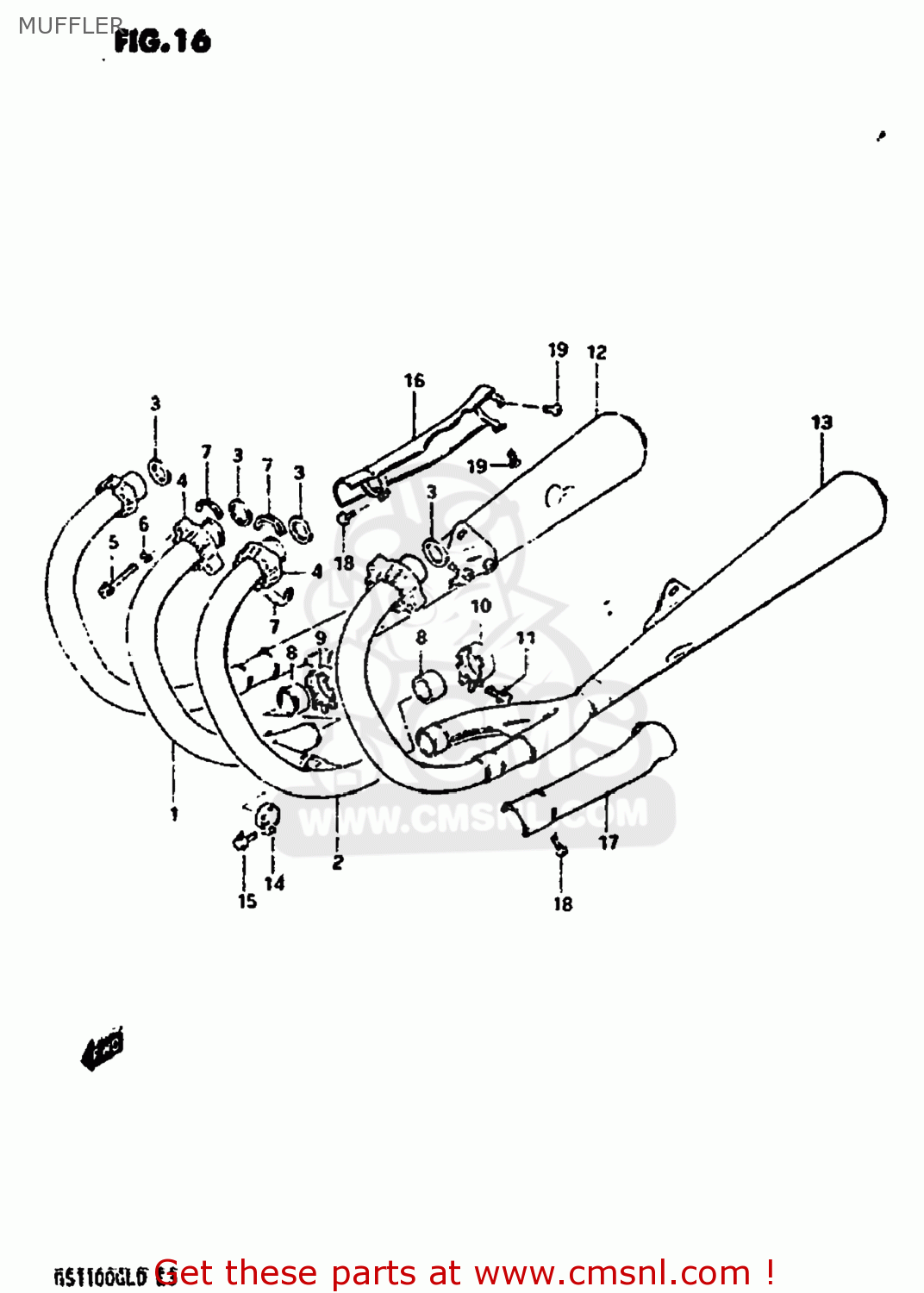

MUFFLER

ref

part #

description

quantity

0110708408
ref:
01500-0840A

BOLT 8X40

€ 3.00

1

1417049011
ref: 1
14170-49400-H01

PIPE,CENTER EXHAUST

€ 109.00

2

1418049011
ref: 2
14180-49400-H01

COVER,EXHAUST PIPE

€ 123.00

3

1418111020
ref: 3
14181-01D00

GASKET,EXHAUST PIPE (NAS)

€ 8.00

4-1

1418249010
ref: 4-1
14182-49011

CLAMP,EXHAUST PIPE

€ 49.00

4-2

1418249011
ref: 4-2

CLAMP(H:21)

€ 49.00

5-1

0110708458
ref: 5-1
01500-08453

BOLT 8X45

€ 2.50

6

0832121088
ref: 6
08321-01087

LOCK WASHER

€ 2.00

7

1415549000
ref: 7

PLATE,EXHAUST

€ 9.50

8

1477149001
ref: 8
14771-49010

CONNECTOR,MUFFLER

€ 26.00

9

1445949000
ref: 9

CLAMP,MUFFLER CONNECTOR,R

€ 25.50

10

1446949000
ref: 10

CLAMP,MUFFLER CONNECTOR,L

€ 25.50

11

0151708258
ref: 11
01550-08257

BOLT

€ 2.50

12-1

1430149141
ref: 12-1
14301-49141-H01

MUFFLER ASSEMBLY

€ 398.50

12-2

1430149142
ref: 12-2
14301-49160-H01

MUFFLER ASSEMBLY

€ 143.00

13-1

1430249141
ref: 13-1
14302-49141-H01

MUFFLER ASSEMBLY

€ 329.50

13-2

1430249142
ref: 13-2
14302-49160-H01

MUFFLER ASSEMBLY

€ 161.00

14

0940237601
ref: 14

CLAMP

€ 5.50

15

0151706258
ref: 15
01550-06257

BOLT

€ 2.50

16

1478049010
ref: 16

COVER,MUFFLER,R

€ 438.00

17

1479049010
ref: 17
14790-49011

COVER,MUFFLER

€ 29.50

18

0211205168
ref: 18
02112-05167

SCREW

€ 2.50

19

0211205068
ref: 19
09125-05122

SCREW

€ 4.00

all assemblies
