REAR MASTER CYLINDER
GS1100GL 1983 (D) USA (E03)

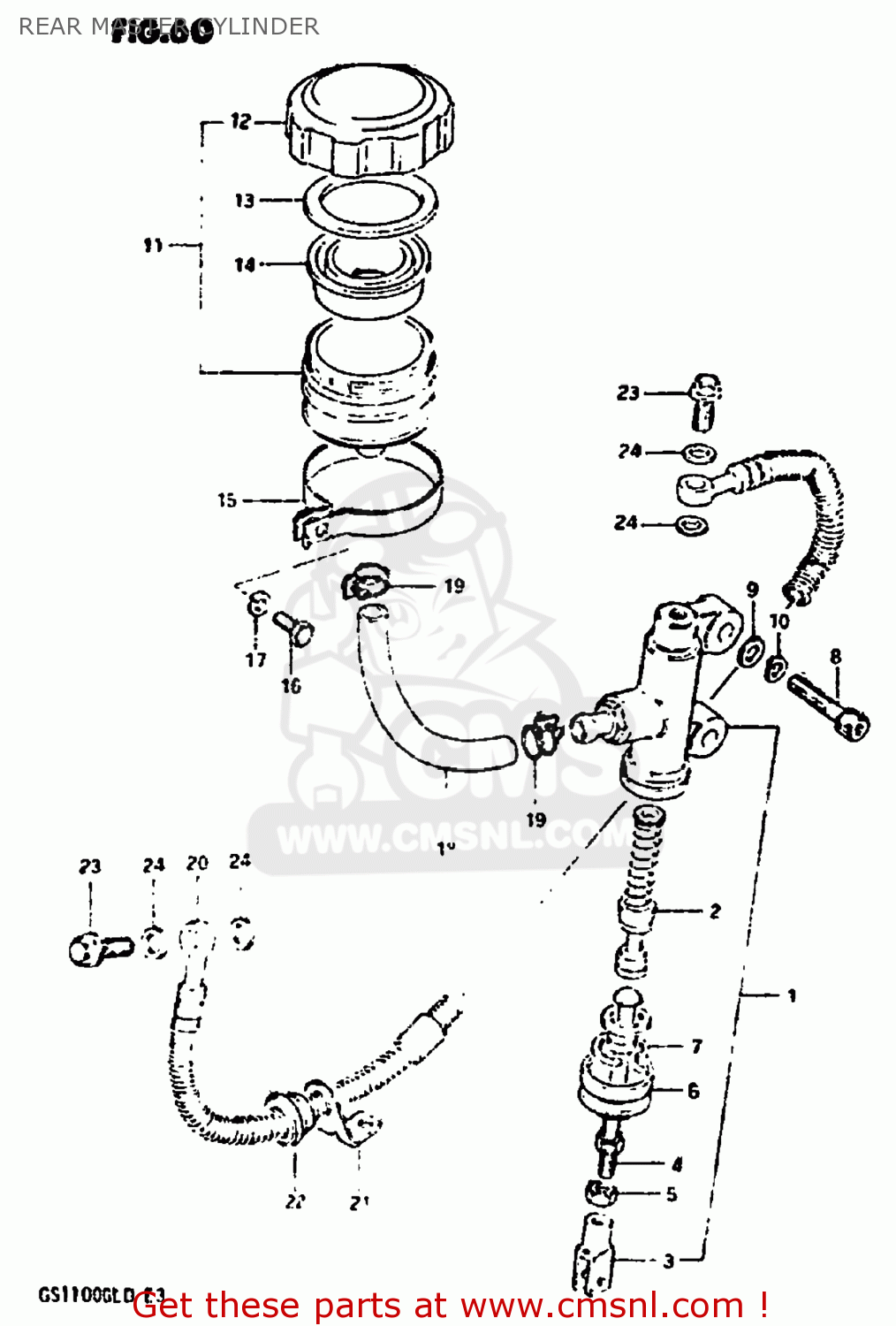

Rear master cylinder diagram GS1100GL 1983 (D) USA (E03)
REAR MASTER CYLINDER GS1100GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960045302
ref: 1
CYLINDER ASSY,RR MASTER
€ 177.00
2
6960045820
ref: 2
PISTON/CUP SET
€ 53.00
3
6969234300
ref: 3
YOKE
€ 11.00
4
6967045301
ref: 4
ROD,REAR MASTER CYLINDER
€ 13.50
5
6969334300
ref: 5
69693-05A00
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
€ 6.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
0910608013
ref: 8
07130-0830A
BOLT
€ 3.00
9
0832211088
ref: 9
08322-01087
WASHER
€ 2.00
10
0832131088
ref: 10
08321-01087
WASHER,LOCK,8.
€ 2.00
11
6974047011
ref: 11
69740-470V0
TANK ASSEMBLY,RESERVOIR
€ 41.00
12
5966933603
ref: 12
59669-07D00
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
€ 8.50
15-1
0940251601
ref: 15-1
09402-51602
CLAMP
€ 6.50
15-2
0940251602
ref: 15-2
CLAMP
€ 6.50
16
0110706168
ref: 16
01500-06167
BOLT, UPPER
€ 3.00
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
6973145300
ref: 18
HOSE,RESERVOIR TANK
€ 3.50
19
0940016302
ref: 19
09400-16304
CLAMP
€ 4.50
20
6948045300
ref: 20
HOSE,REAR BRAKE
€ 40.00
21
6924345300
ref: 21
GUIDE,BRAKE HOSE
€ 0.00
22
5924436200
ref: 22
GROMMET,BRAKE HOSE GUIDE
€ 4.00
23-1
0936010007
ref: 23-1
09360-10017
BOLT,UNION
€ 6.50
23-2
0936010009
ref: 23-2
09360-10017
BOLT UNION
€ 6.50
24
0916110005
ref: 24
09161-10009
WASHER
€ 2.00
