WIRING HARNESS
GS1100GL 1983 (D) USA (E03)

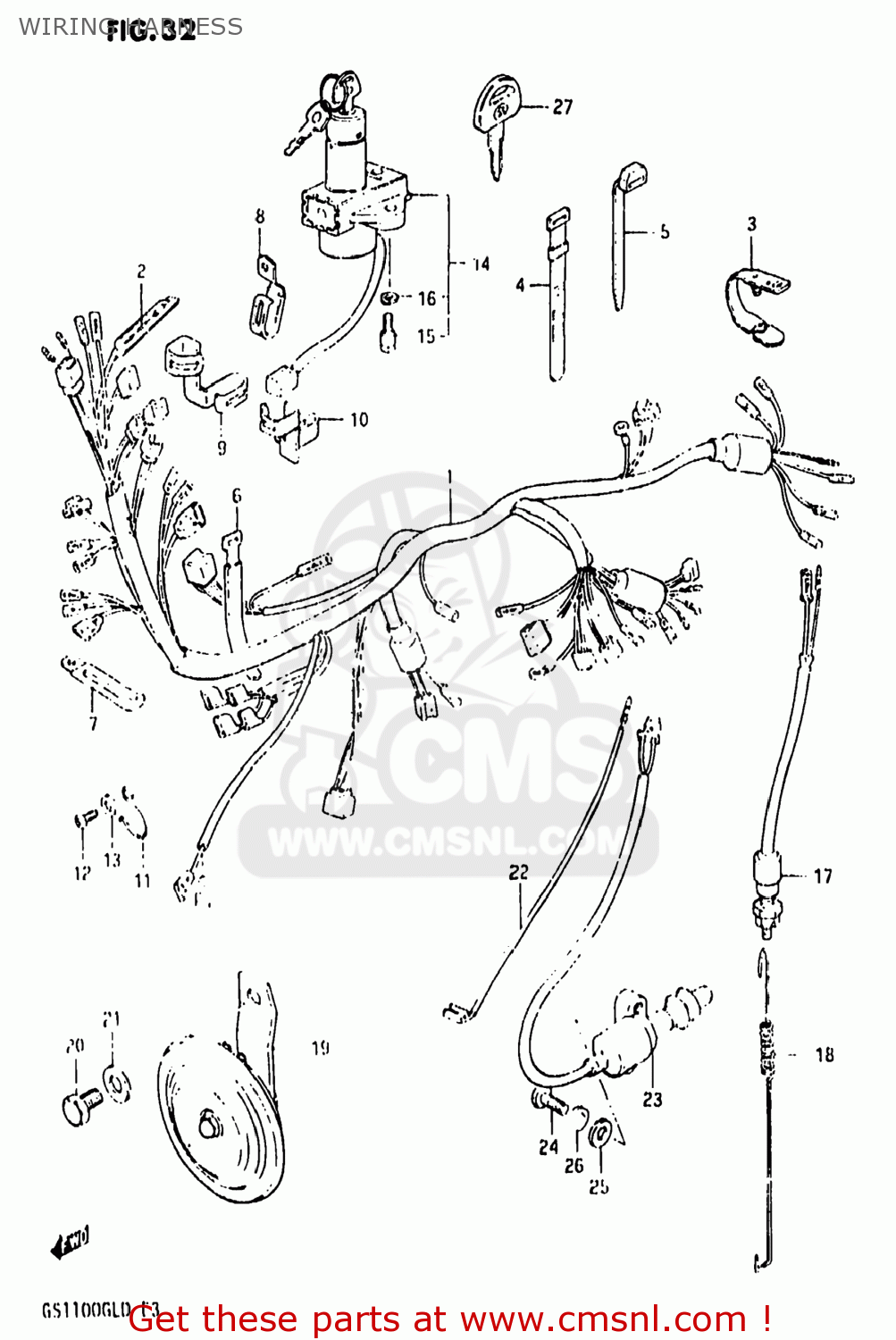

Wiring harness diagram GS1100GL 1983 (D) USA (E03)
WIRING HARNESS GS1100GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661049140
ref: 1-1
HARNESS,WIRING
€ 163.50
1-2
3661049161
ref: 1-2
HARNESS,WIRING
€ 99.00
2
3661102100
ref: 2
DIODE
€ 6.00
3
0940705403
ref: 3
CLAMP,L:88
€ 1.50
4
0940714401
ref: 4
CLAMP
€ 3.00
5
0940714403
ref: 5
CLAMP(L:125)
€ 2.50
6
0940718301
ref: 6
CLAMP
€ 6.00
7-1
0940406414
ref: 7-1
09404-06433
CLAMP
€ 3.00
7-2
0940406415
ref: 7-2
09404-06433
CLAMP
€ 3.00
8
3665134410
ref: 8
CLAMP,WIRING HARNESS
€ 0.00
9
3665134410
ref: 9
CLAMP,WIRING HARNESS
€ 0.00
10
3665134420
ref: 10
CLAMP,WIRING HARNESS
€ 0.00
11
3661944001
ref: 11
36619-44002
GUIDE,WIRING HARNESS
€ 2.50
12
0211206128
ref: 12
02112-06127
SCREW 6X12
€ 2.00
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
14
3710045301
ref: 14
SWITCH ASSY,IGNITION
€ 127.50
15
3715247010
ref: 15
07130-0616B
BOLT
€ 3.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
3774004571
ref: 17
37740-48071
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
18
0944306018
ref: 18
09443-06018-XC0
SPRING
€ 4.50
19
3850034230
ref: 19
HORN ASSEMBLY
€ 41.00
20
0110708128
ref: 20
01500-08127
BOLT 8X12
€ 2.50
21
0832211088
ref: 21
08322-01087
WASHER
€ 2.00
22
3685345000
ref: 22
36853-45001
WIRE
€ 9.50
23
3784049400
ref: 23
37840-14A01
SWITCH ASSEMBLY,SIDE STAND
€ 75.00
24
0110705168
ref: 24
01500-0516B
BOLT
€ 1.50
25
0832221058
ref: 25
08322-01057
WASHER
€ 2.50
26
0832121058
ref: 26
08321-0105A
LOCK WASHER
€ 2.00
27
3714647010
ref: 27
KEY,BLANK
€ 15.00
