BATTERY

GS550L 1985 (F) USA (E03)

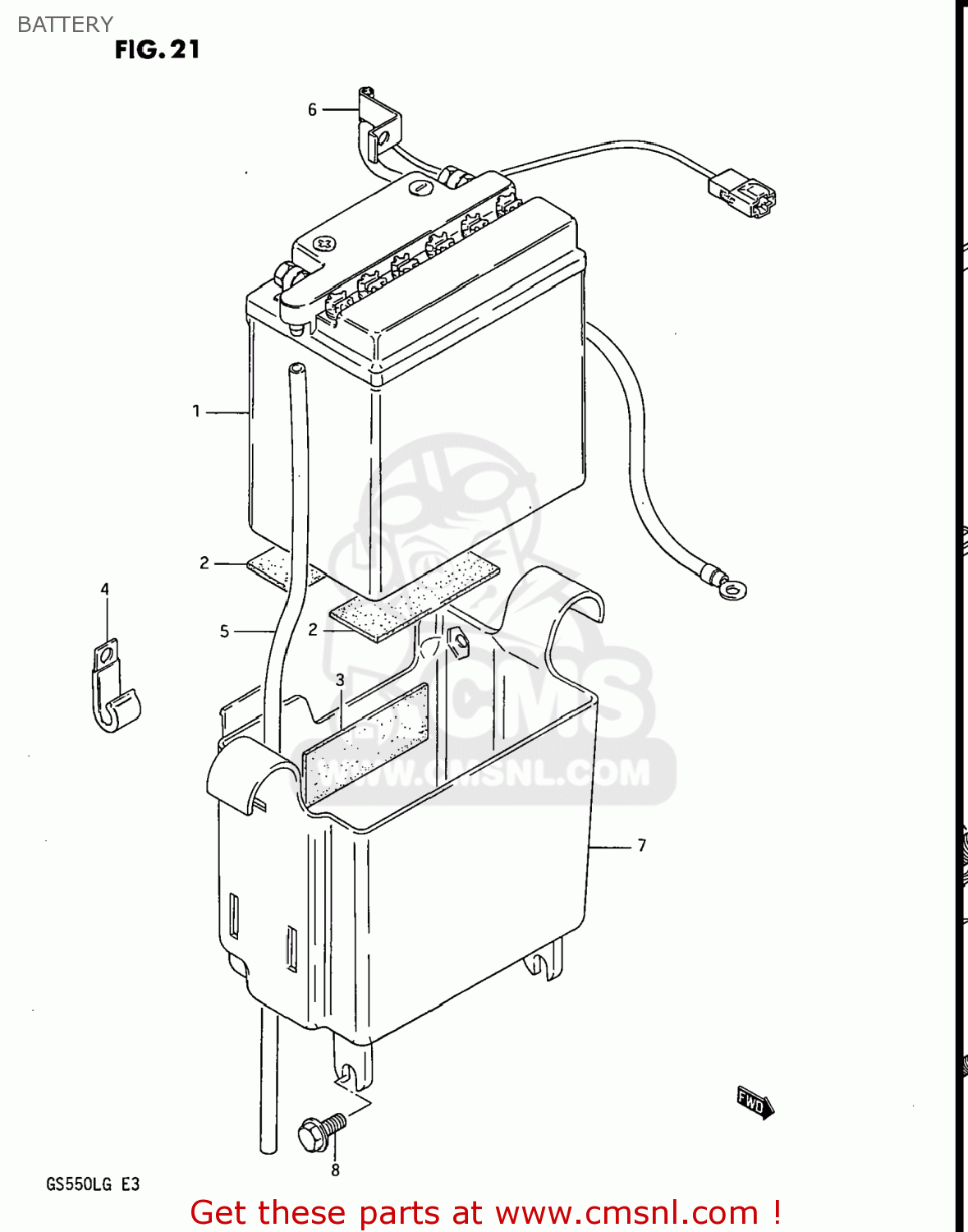

Battery diagram GS550L 1985 (F) USA (E03)

BATTERY GS550L 1985 (F) USA (E03)

BATTERY GS550L 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361008360
ref: 1
33610-08310

BATTERY ASSEMBLY (12V)

€ 78.50

2

3365234000
ref: 2
33652-07D00

PROTECTOR(30X80X2)

€ 4.50

3

3365229100
ref: 3
33651-37000

PROTECTOR,20X9

€ 5.00

4

0940309303
ref: 4

CLAMP

€ 5.50

5

3368031003
ref: 5
33680-16A10

HOSE,BATTERY EXHAUST

€ 4.50

6

3385043500
ref: 6

CORD,BATTERY MINUS

€ 12.50

7

4154143500
ref: 7

HOLDER,BATTERY

€ 11.50

8

0912806041
ref: 8
02162-0616B

SCREW

€ 2.50
