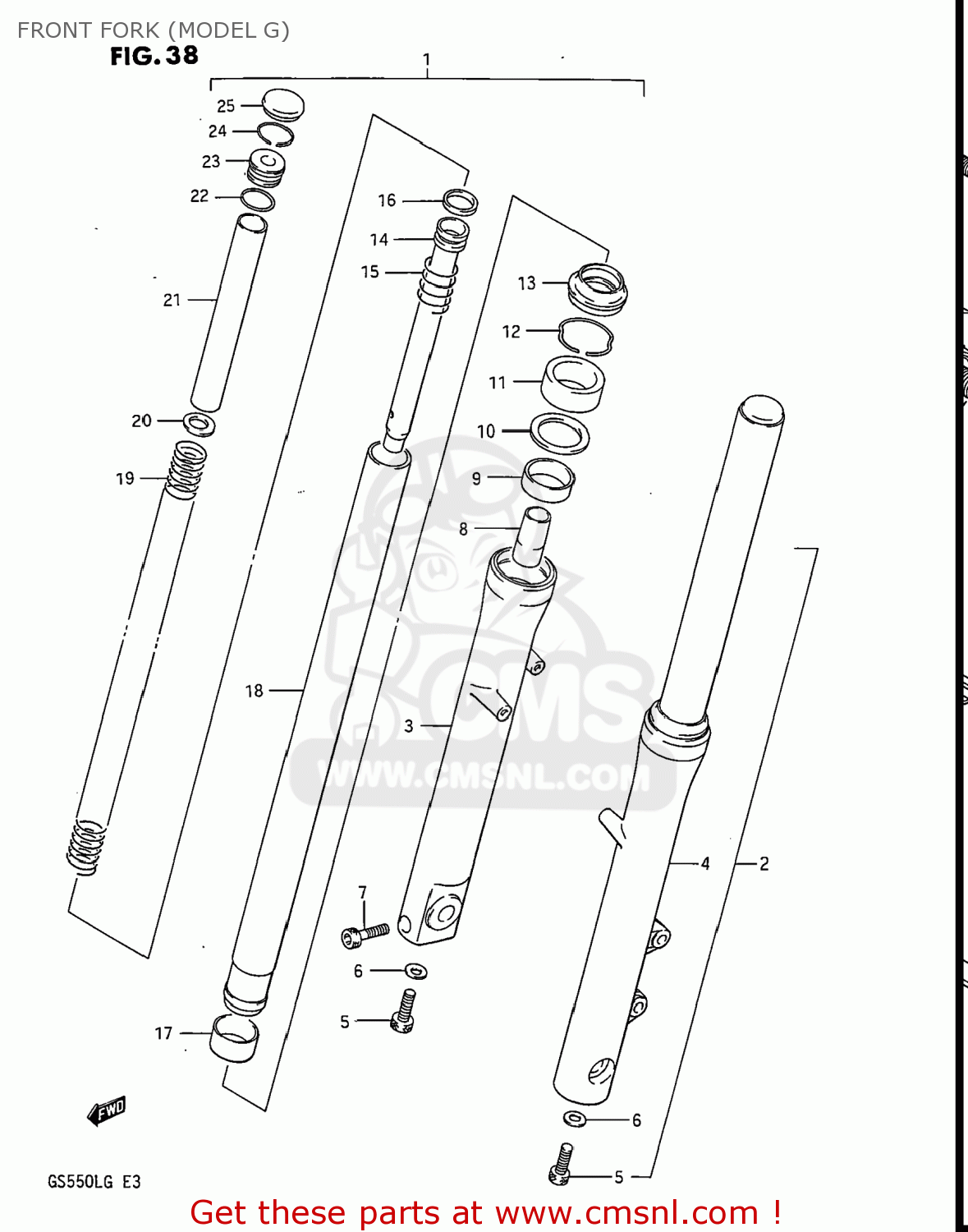

FRONT FORK (MODEL G)

ref

part #

description

quantity

1

5110343560
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 269.50

2

5110443560
ref: 2

DAMPER ASSEMBLY,LEFT

€ 269.50

3

5113143560
ref: 3

TUBE,OUTER,RIGHT

€ 129.00

4

5114143560
ref: 4

TUBE,OUTER,LEFT

€ 129.00

5

5114748130
ref: 5

BOLT(8X27)

€ 3.50

6

5114836011
ref: 6

GASKET (NAS)

€ 4.00

7

0711008358
ref: 7
07130-08357

BOLT, FRONT RH

€ 4.50

8

5119543530
ref: 8

PIECE,OIL LOCK

€ 12.50

9

5115233300
ref: 9

BUSH,GUIDE

€ 11.50

10

5116801A30
ref: 10
51168-30B00

SPACER,SEAL

€ 5.00

11

5115334A00
ref: 11
51153-19D10

OIL SEAL,FRONT FORK 35X48X11

€ 14.00

12

5115631231
ref: 12
51156-01A00

CIRCLIP,FORK OIL SEAL

€ 3.50

13

5157134A00
ref: 13
51571-03B20

SEAL,DUST

€ 22.00

14

5114643560
ref: 14

CYLINDER

€ 26.00

15

5117715500
ref: 15

SPRING,REBOUND

€ 7.00

16

5119615500
ref: 16

RING,FRONT FORK PISTON

€ 0.00

17

5112134A00
ref: 17

PISTON

€ 11.00

18

5111043560
ref: 18

TUBE,FORK,INNER

€ 132.00

19

5117143560
ref: 19

SPRING

€ 23.00

20

5119243560
ref: 20

NO PRODUCT DESCRIPTION AVAILABLE

€ 2.50

21

5117643560
ref: 21

SPACER,SPRING

€ 5.00

22

5118131030
ref: 22

O RING

€ 3.50

23

5117547400
ref: 23

SPRING SEAT B

€ 5.50

24

5116947400
ref: 24

RING,STOPPER

€ 2.50

25

5118931230
ref: 25

CAP

€ 6.50

all assemblies
