FRONT FORK (MODEL F)
GS550L 1985 (F) USA (E03)

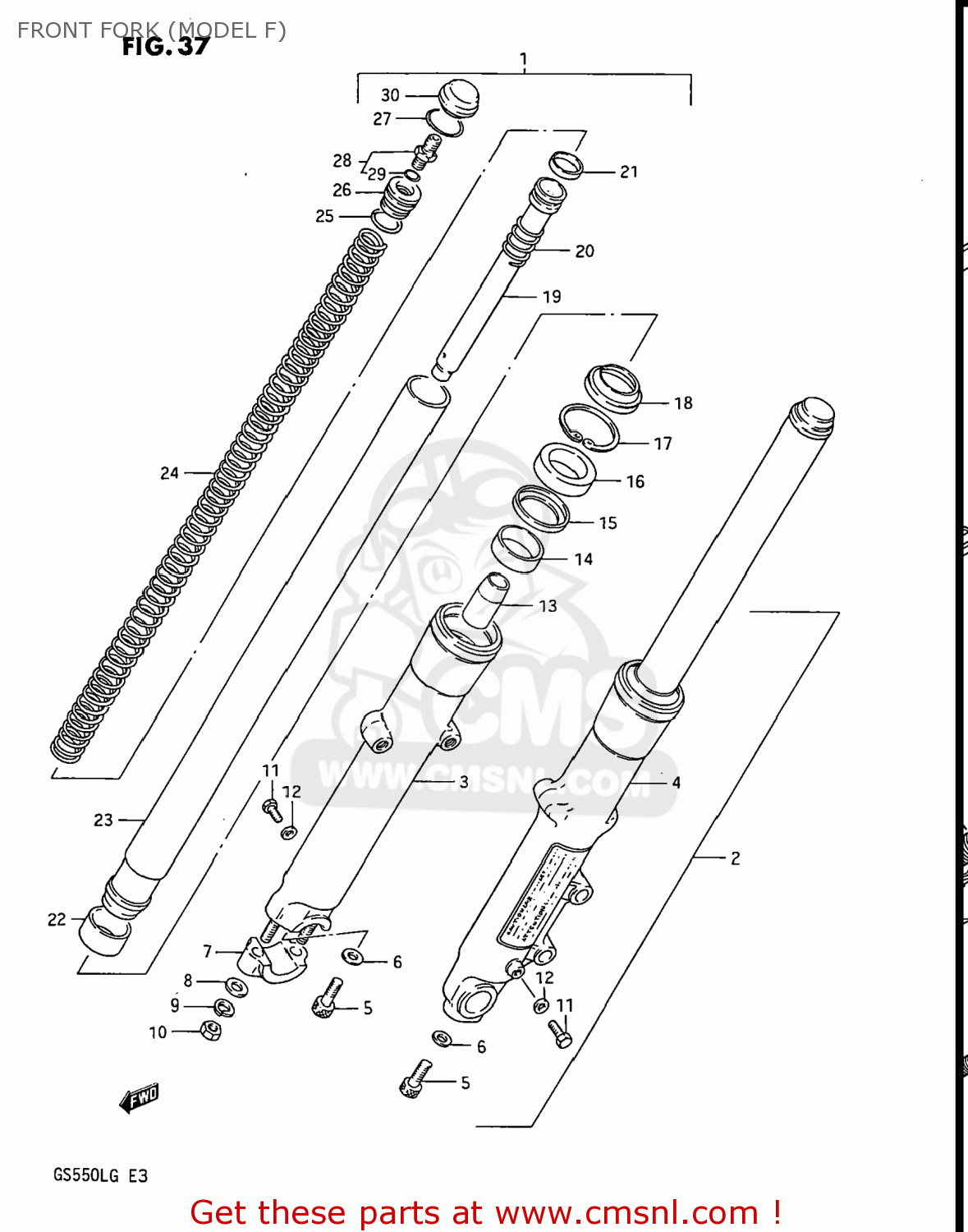

Front fork (model f) diagram GS550L 1985 (F) USA (E03)
FRONT FORK (MODEL F) GS550L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110343530
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 254.00
2
5110443540
ref: 2
DAMPER ASSEMBLY,LEFT
€ 245.50
3
5113043530
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 124.00
4
5114043530
ref: 4
TUBE,FORK,LEFT,OUTER
€ 128.50
5
5114748130
ref: 5
BOLT(8X27)
€ 3.50
6
5114831030
ref: 6
51148-36011
GASKET (NAS)
€ 4.00
7
5113243500
ref: 7
HOLDER,AXLE,RIGHT
€ 23.00
8
0832221088
ref: 8
08322-01087
WASHER
€ 2.00
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10
0914008005
ref: 10
09140-08017
NUT (8MM)
€ 1.50
11
0110706088
ref: 11
09100-06157
BOLT
€ 2.50
12
5118331030
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 4.00
13
5119543530
ref: 13
PIECE,OIL LOCK
€ 12.50
14
5115231300
ref: 14
BUSHING,GUIDE
€ 22.50
15
5116834210
ref: 15
51168-38A00
SPACER,SEAL
€ 5.50
16
5115309310
ref: 16
51153-03B30
OIL SEAL,FRONT FORK
€ 15.00
17
5155634320
ref: 17
CIRCLIP,INNTERNAL
€ 7.00
18
5157143530
ref: 18
51173-25D00
SEAL,DUST
€ 15.00
19
5114643530
ref: 19
CYLINDER,FRONT FORK
€ 27.00
20
5117738400
ref: 20
SPRING
€ 3.00
21
5119645200
ref: 21
RING,PISTON
€ 5.50
22
5112134210
ref: 22
PISTON
€ 20.50
23
5111043530
ref: 23
TUBE,FORK,INNER
€ 160.00
24
5117143530
ref: 24
SPRING,FRONT FORK
€ 26.50
25
5111743500
ref: 25
O RING
€ 4.50
26
5117243500
ref: 26
GUIDE,SPRING
€ 8.00
27
5116947400
ref: 27
RING,STOPPER
€ 2.50
28
5129345440
ref: 28
VALVE,AIR
€ 17.00
29
5111745400
ref: 29
09280-06005
O-RING (D:3.8 ID:19)
€ 2.50
30
5118943500
ref: 30
CAP,FR FORK
€ 7.00
30
5118943500
ref: 30
CAP,FR FORK
€ 7.00
