FUEL COCK
GS550L 1985 (F) USA (E03)

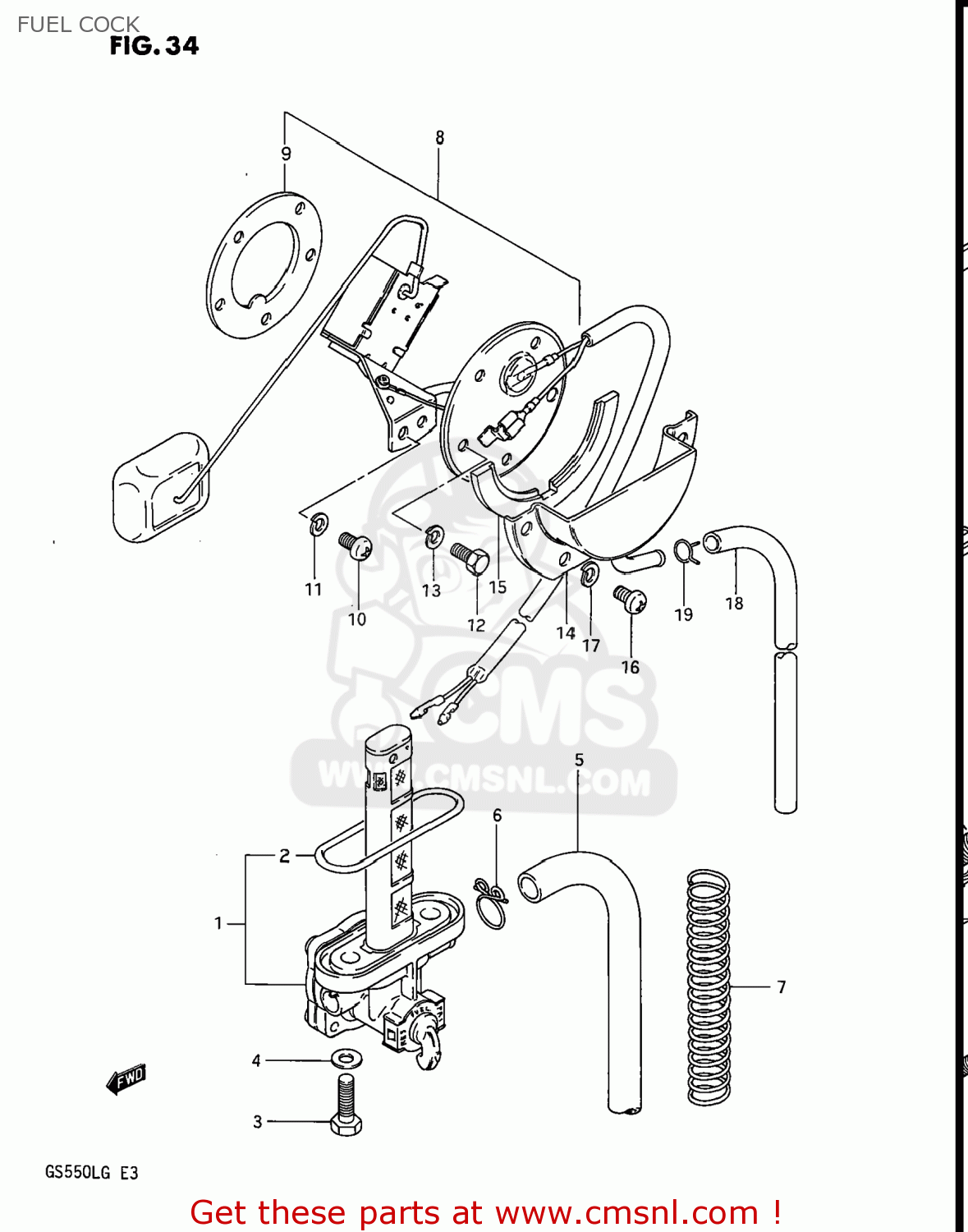

Fuel cock diagram GS550L 1985 (F) USA (E03)
FUEL COCK GS550L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4430049572
ref: 1
COOK ASSY,FUEL
€ 101.50
2
4434849170
ref: 2
O RING
€ 3.50
3
0912806006
ref: 3
09128-06057
BOLT(6X20)
€ 2.00
4
0916806010
ref: 4
09168-06023
GASKET
€ 2.00
5
0934307073
ref: 5
09352-70103-00B
HOSE
€ 17.50
6
0940110402
ref: 6
CLIP
€ 7.00
7
0944013018
ref: 7
09440-13043
SPRING
€ 14.50
8
3481043500
ref: 8
GAUGE ASSEMBLY,FUEL LEVEL
€ 91.50
9
3482545100
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
10
0211205106
ref: 10
02112-0510A
SCREW 5X10
€ 2.00
11
0832121056
ref: 11
08321-0105A
LOCK WASHER
€ 3.00
12
0110705106
ref: 12
01500-0510B
BOLT
€ 1.50
13
0832121056
ref: 13
08321-0105A
LOCK WASHER
€ 3.00
14
3488534500
ref: 14
PLATE,FUEL DRAIN
€ 20.50
15
3488834500
ref: 15
GASKET (NAS)
€ 8.50
16
0211205086
ref: 16
02112-0508A
SCREW
€ 2.00
17
0832121056
ref: 17
08321-0105A
LOCK WASHER
€ 3.00
18
0934305165
ref: 18
09352-50823-00B
HOSE,FUEL
€ 13.00
19
0940108402
ref: 19
CLIP
€ 1.50
