OIL PUMP - OIL FILTER
GS550L 1985 (F) USA (E03)

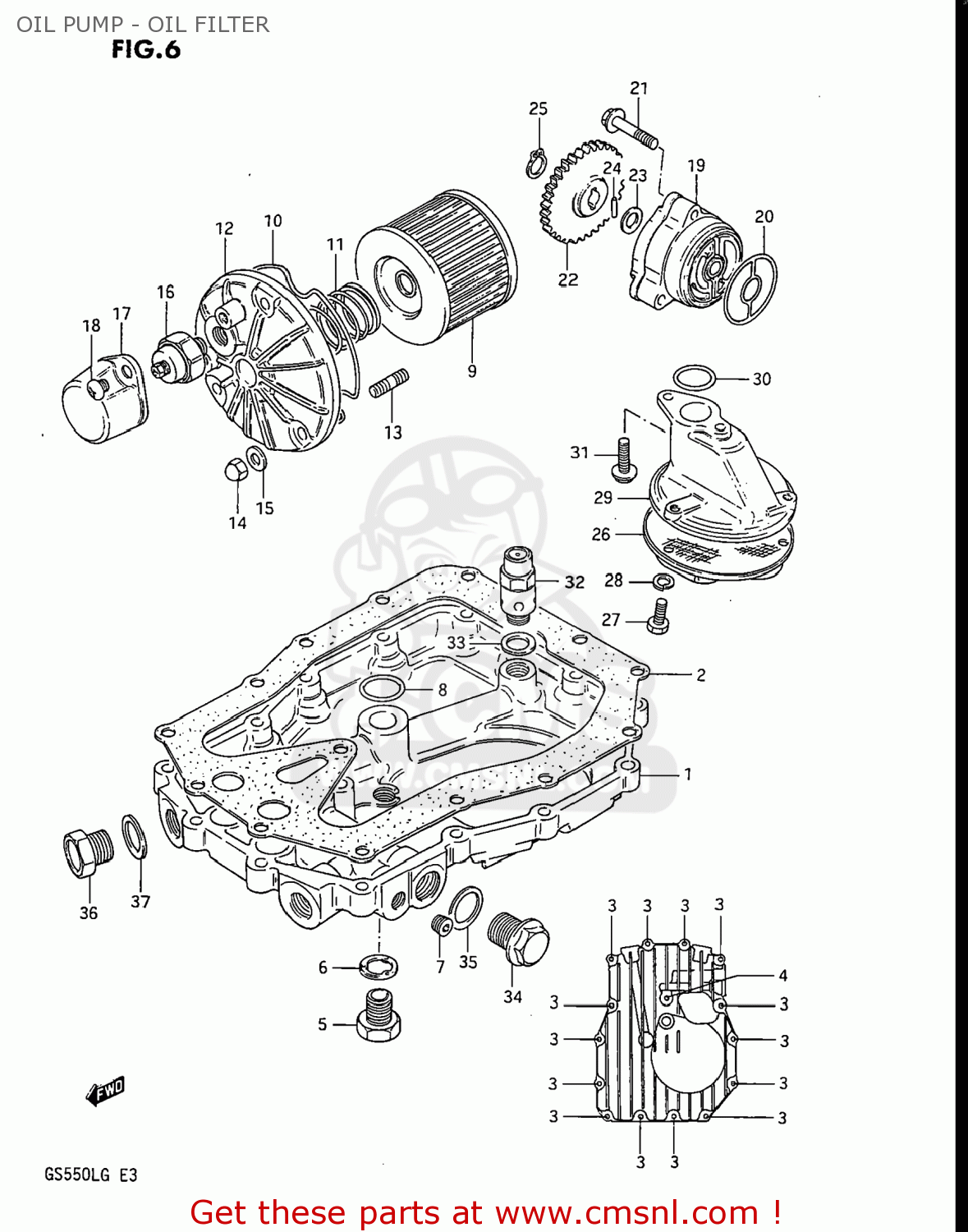

Oil pump - oil filter diagram GS550L 1985 (F) USA (E03)
OIL PUMP - OIL FILTER GS550L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151143501
ref: 1
PAN,OIL
€ 64.50
2
1148943401
ref: 2
11489-43401-H17
GASKET,OIL PAN (MCA)
€ 17.00
3
0151706254
ref: 3
01550-0625A
BOLT
€ 2.50
4
0151706354
ref: 4
01550-0635A
BOLT 6X35
€ 2.50
5
0924714001
ref: 5
09247-14002
PLUG
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
€ 2.50
7
0924605001
ref: 7
09246-04001
PLUG
€ 3.50
8
0928018008
ref: 8
09280-18009
O RING(D:3.2,ID:17.8)
€ 8.00
9
1651045040
ref: 9
FILTER ASSY,ENGINE OIL
€ 7.50
10
1651845000
ref: 10
O RING,OIL FILTER CHAMBER CAP
€ 7.50
11
0944032004
ref: 11
SPRING
€ 13.50
12
1651243500
ref: 12
CAP,ENGINE OIL FILTER
€ 27.50
13
0142106208
ref: 13
01421-0620A
STUD 6X20
€ 2.50
14
0831311065
ref: 14
08313-1006A
NUT 6MM
€ 2.00
15
0832221064
ref: 15
08322-0106B
WASHER
€ 2.00
16
3782033200
ref: 16
37820-33D10
SWITCH ASSEMBLY
€ 29.00
17
3782143401
ref: 17
COVER,OIL PRESSURE SWITCH
€ 2.50
18
0211206065
ref: 18
09125-06102
SCREW
€ 2.00
19
1640043400
ref: 19
PUMP ASSEMBLY,ENGINE OIL
€ 103.00
20
1649131300
ref: 20
O RING,OIL PUMP
€ 12.50
21
0910306045
ref: 21
BOLT(6X32)
€ 3.00
22
1633143400
ref: 22
GEAR,OIL PUMP DRIVEN
€ 39.00
23
0822110185
ref: 23
SHIM
€ 2.00
24
0926104009
ref: 24
PIN(4X15.8)
€ 1.50
25
0833131109
ref: 25
CIRCLIP
€ 2.00
26
1652009300
ref: 26
16520-09301
STRAINER,ENGINE OIL
€ 14.00
27
0110706128
ref: 27
01500-06127
BOLT
€ 2.00
28
0832121068
ref: 28
08321-01067
LOCK WASHER
€ 2.50
29
1652543500
ref: 29
PROTECTOR,OIL STRAINER
€ 12.50
30
0928018008
ref: 30
09280-18009
O RING(D:3.2,ID:17.8)
€ 8.00
31
0151706208
ref: 31
01550-06207
BOLT,REAR
€ 2.50
32
1644015500
ref: 32
16440-11D00
REGULATOR ASSEMBLY,ENGINE
€ 37.00
33
0821214181
ref: 33
WASHER
€ 2.00
34
0924716004
ref: 34
PLUG
€ 5.50
35
0928017002
ref: 35
O RING(D:2.4,ID:16.8)
€ 3.50
36
0924714030
ref: 36
09247-14029
PLUG
€ 2.00
37
0916814004
ref: 37
GASKET(14X19.2X2) (NAS)
€ 2.50
