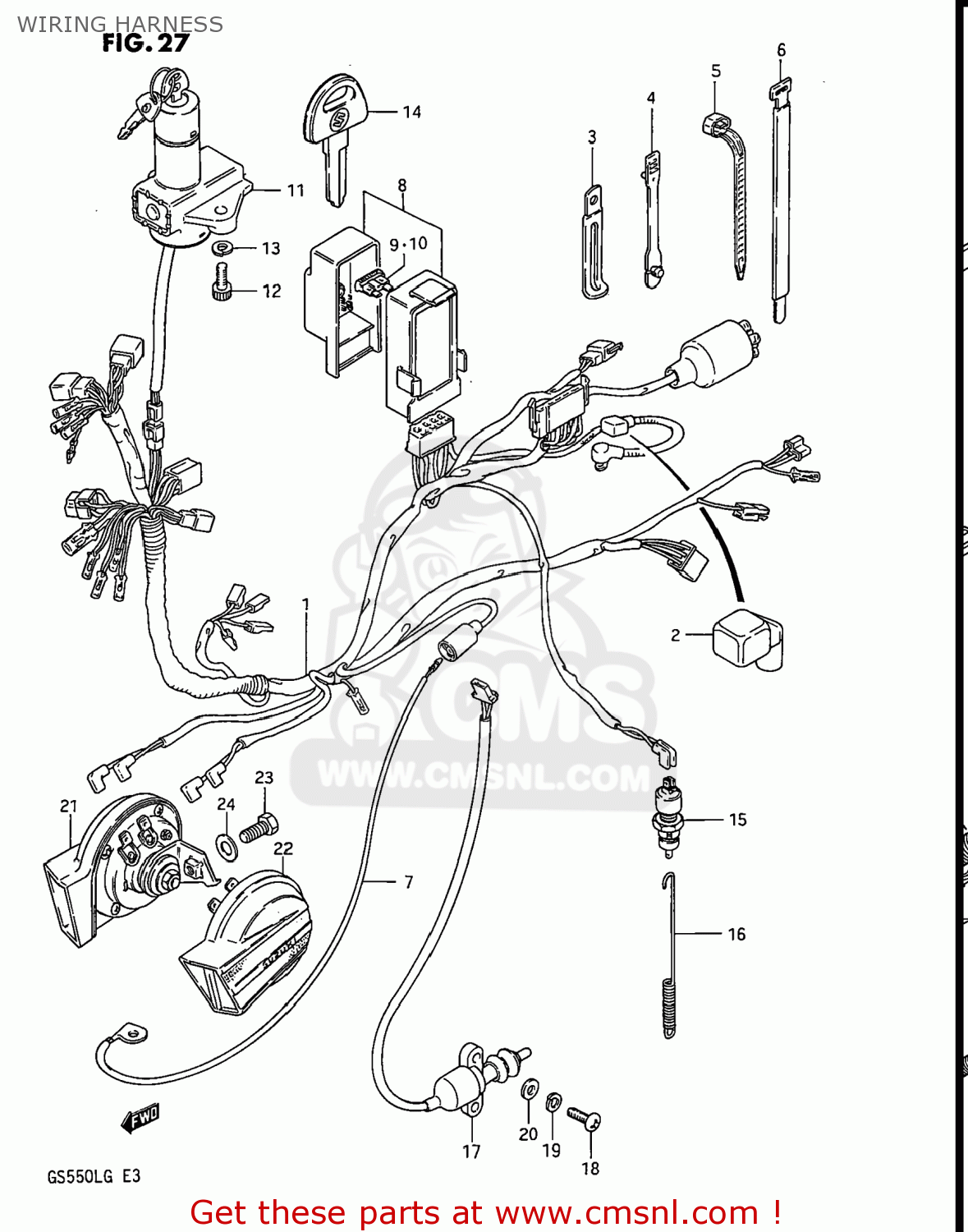

WIRING HARNESS

ref

part #

description

quantity

1-1

3661043510
ref: 1-1

HARNESS,WIRING

€ 97.50

1-2

3661043520
ref: 1-2
36610-43510

HARNESS,WIRING

€ 97.50

2

3362443500
ref: 2

CAP,BATTERY PLUS TERMINAL

€ 3.50

3-1

0940406402
ref: 3-1
09404-06432

CLAMP

€ 2.50

3-2

0940406415
ref: 3-2
09404-06433

CLAMP

€ 3.00

4

0940705403
ref: 4

CLAMP,L:88

€ 1.50

5-1

0940714403
ref: 5-1

CLAMP(L:125)

€ 2.50

5-2

0940718402
ref: 5-2

CLAMP(L:165)

€ 2.50

5-3

0940725401
ref: 5-3

CLAMP(L:235)

€ 4.00

6

0940735301
ref: 6
09407-38401

CLAMP

€ 6.50

7

3685143400
ref: 7

WIRE,OIL PRESSURE SWITCH

€ 22.50

8

3674043401
ref: 8

FUSE BOX ASSY

€ 61.00

9

0948110101
ref: 9

FUSE(10A)

€ 2.50

10

0948115101
ref: 10

FUSE(15A)

€ 1.50

11

3710049201
ref: 11

SWITCH ASSY,IGNITION

€ 141.00

12

3715247011
ref: 12
07130-0616B

BOLT

€ 3.00

13

0832121067
ref: 13
08321-01067

WASHER,LOCK

€ 2.50

14

3714647010
ref: 14

KEY,BLANK

€ 15.00

15

3774007900
ref: 15
37740-24A00

SWITCH ASSEMBLY,STOP LAMP

€ 20.50

16

0944306030
ref: 16
09443-06048

SPRING

€ 4.50

17

3784043502
ref: 17

SWITCH ASSY,SIDE STAND WARNING

€ 74.00

18

0211205205
ref: 18
02112-0520B

SCREW 5X20

€ 2.50

19

0832121055
ref: 19
08321-0105A

WASHER,LOCK

€ 3.00

20

0832221055
ref: 20
08322-0105A

WASHER,5MM

€ 2.50

21

3850143570
ref: 21

HORN ASSEMBLY,HIGH PITCH

€ 42.00

22

3850243570
ref: 22

HORN ASSEMBLY,LOW PITCH

€ 0.00

23

0110708165
ref: 23
01500-0816B

BOLT

€ 2.00

24

0832211084
ref: 24
08322-0108A

WASHER

€ 1.50
