FRAME
GS550L 1985 (F) USA (E03)

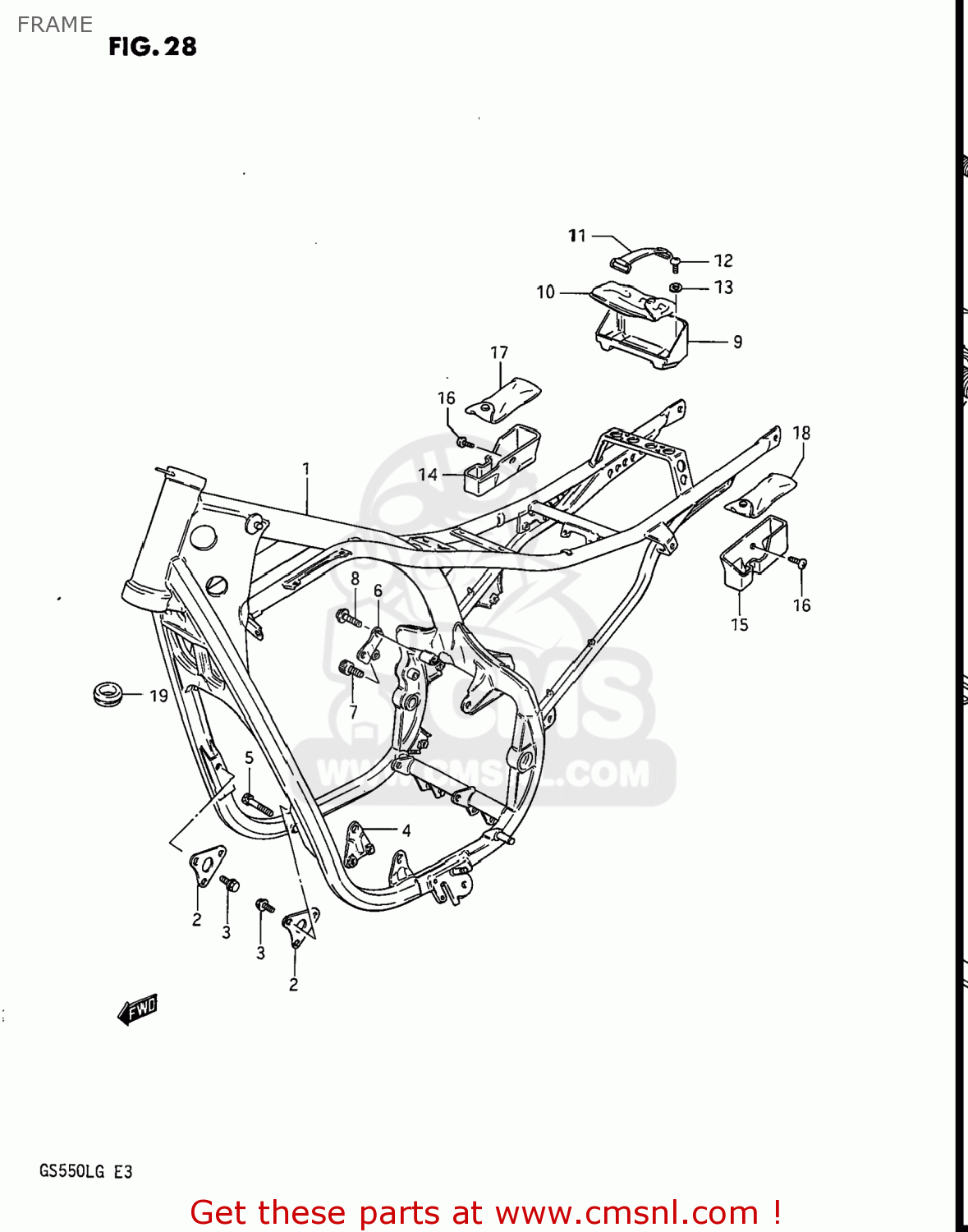

Frame diagram GS550L 1985 (F) USA (E03)
FRAME GS550L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110043500291
ref: 1-1
41100-43503-291
FRAME
€ 605.00
1-2
4110043503291
ref: 1-2
FRAME
€ 605.00
2
4199143501291
ref: 2
PLATE,ENGINE MOUNTING
€ 6.50
3
0151708165
ref: 3
01550-0816A
BOLT, LOWER
€ 3.00
4
4199243500291
ref: 4
PLATE,ENGINE MOUNTING
€ 6.00
5
0711008455
ref: 5
07130-0845B
BOLT 8X45
€ 3.00
6
4199343400291
ref: 6
PLATE,ENGINE MOUNTING NO.4
€ 0.00
7
0711008455
ref: 7
07130-0845B
BOLT 8X45
€ 3.00
8
0151708165
ref: 8
01550-0816A
BOLT, LOWER
€ 3.00
9
4155143500
ref: 9
HOLDER,TOOL
€ 12.50
10
0980000261
ref: 10
09800-21011
TOOL ASSY
€ 50.00
11
0946200008
ref: 11
BAND
€ 4.50
12
0214206127
ref: 12
SCREW 6X12
€ 1.50
13
0916006007
ref: 13
09160-06084
WASHER
€ 2.00
14
4742143500
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 202.50
15
4743143500
ref: 15
HOLDER,TOOL
€ 202.50
16
0214206125
ref: 16
02142-0612A
SCREW 6X12
€ 2.00
17
0980000316
ref: 17
09800-21011
TOOL ASSY
€ 50.00
18
0980000317
ref: 18
NO PRODUCT DESCRIPTION AVAILABLE
€ 14.00
19
0930830001
ref: 19
GROMMET
€ 1.50
