TURN SIGNAL LAMP
GS550L 1985 (F) USA (E03)

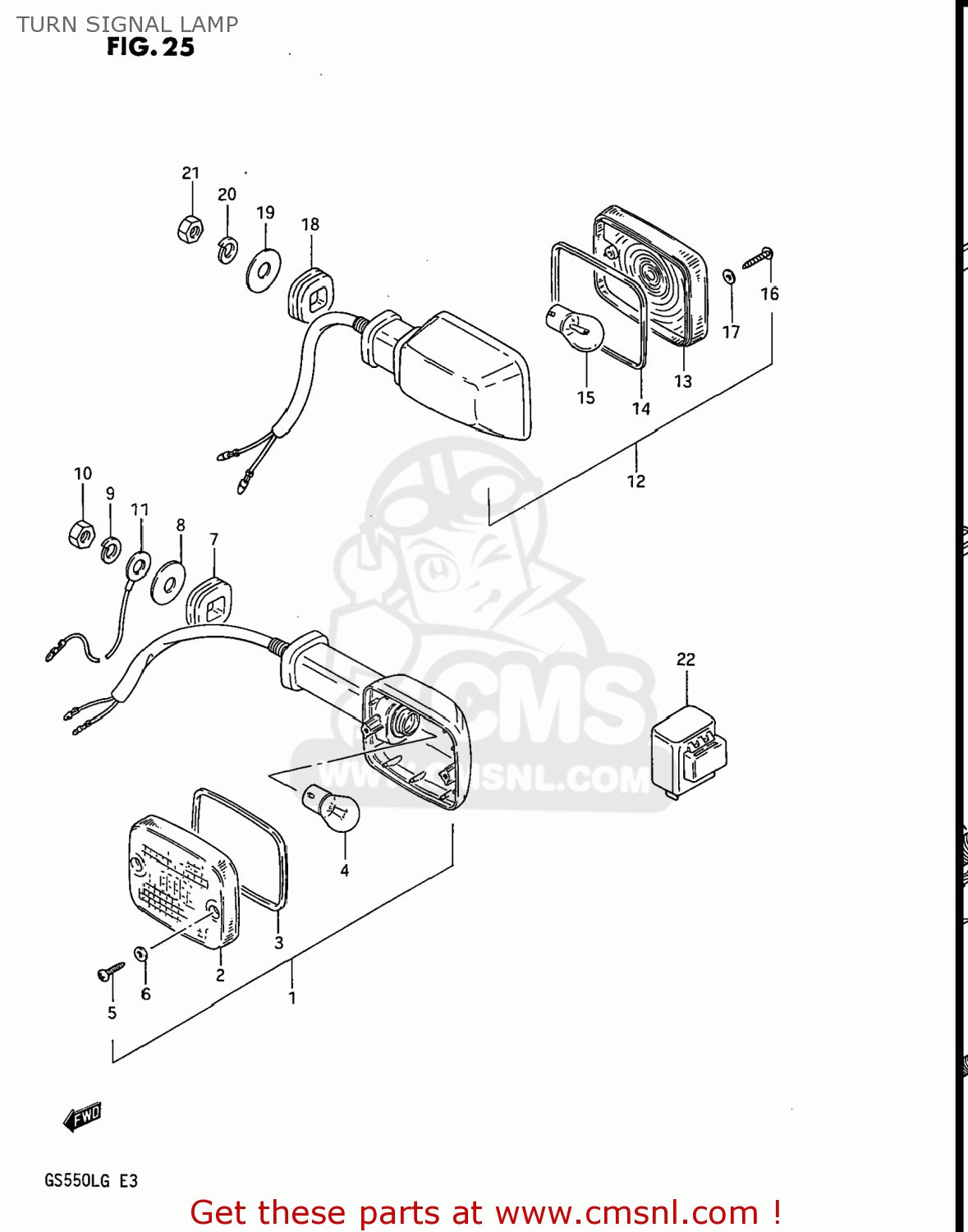

Turn signal lamp diagram GS550L 1985 (F) USA (E03)
TURN SIGNAL LAMP GS550L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560149430
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 126.00
2
3561249010
ref: 2
LENS
€ 13.00
3
3561349230
ref: 3
GASKET (NAS)
€ 5.00
4
0947112035
ref: 4
BULB(12V23W)
€ 5.50
5
0321104208
ref: 5
03211-04207
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0932015005
ref: 7
CUSHION
€ 5.00
8
0916010006
ref: 8
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
9
0832121106
ref: 9
08321-0110A
LOCK WASHER
€ 3.00
10
0831012106
ref: 10
08310-0010A
NUT
€ 2.00
11
3685149500
ref: 11
36851-49000
WIRE
€ 9.50
12
3560345111
ref: 12
LAMP ASSY,RR TURNSIGNAL
€ 114.00
13
3561249231
ref: 13
LENS
€ 13.00
14
3561349230
ref: 14
GASKET (NAS)
€ 5.00
15
0947112006
ref: 15
BULB(12V23W,STANLEY,A4577A)
€ 4.00
16
0321104208
ref: 16
03211-04207
SCREW
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
€ 2.00
18
0932015002
ref: 18
CUSHION
€ 4.50
19
0916010006
ref: 19
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
20
0832121106
ref: 20
08321-0110A
LOCK WASHER
€ 3.00
21
0831012106
ref: 21
08310-0010A
NUT
€ 2.00
22
3861031310
ref: 22
38610-31X50
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
