CRANKSHAFT
GS550L 1985 (F) USA (E03)

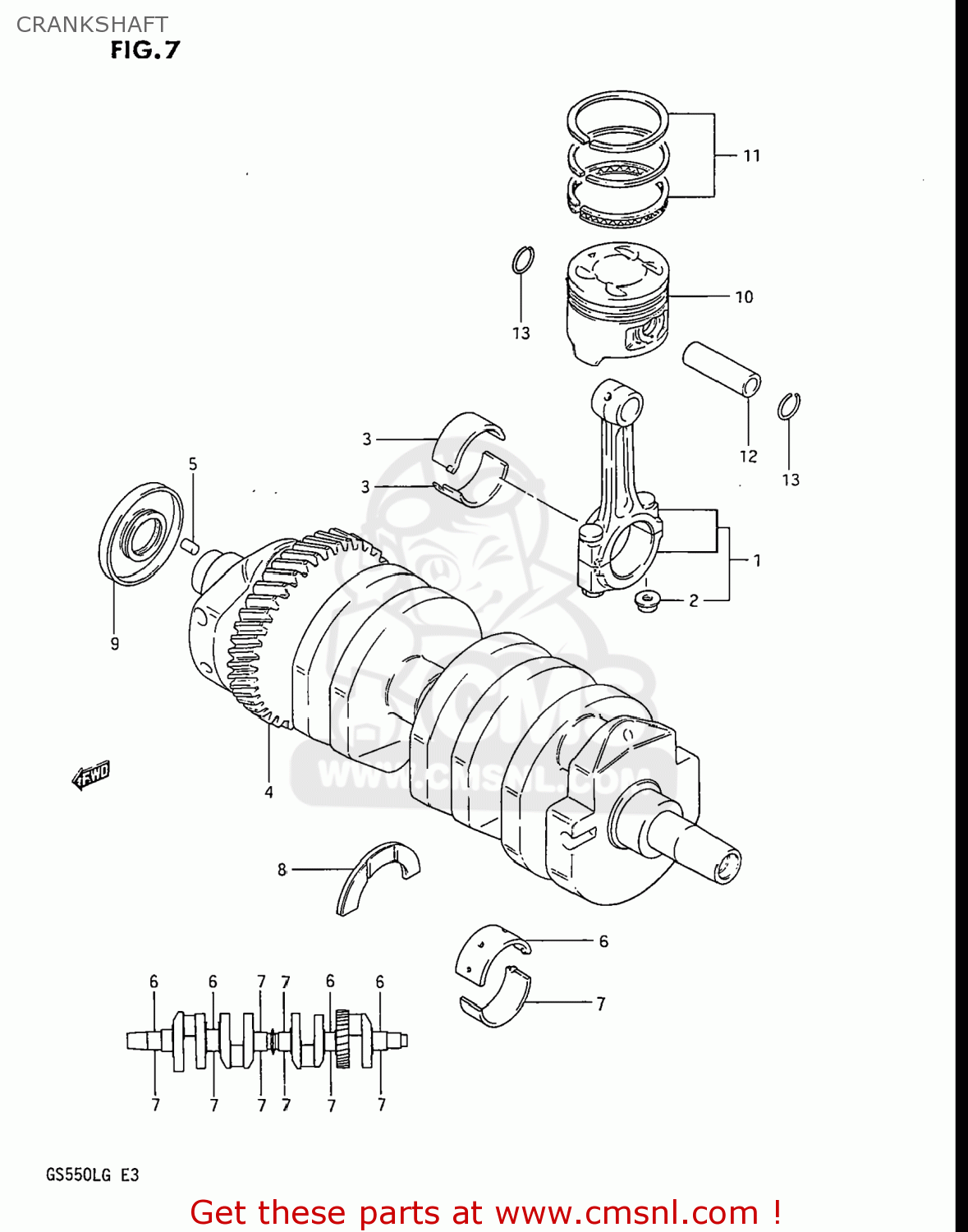

Crankshaft diagram GS550L 1985 (F) USA (E03)
CRANKSHAFT GS550L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216043403
ref: 1
ROD ASSEMBLY,CONNECTING
€ 91.00
2
0915908033
ref: 2
NUT
€ 2.50
3-1
12164334000A0
ref: 3-1
12164-33300-0A0
BEARING,CRANK PIN
€ 12.00
3-2
12164334000B0
ref: 3-2
12164-33300-0B0
BEARING,CRANK PIN
€ 12.50
3-3
12164334000C0
ref: 3-3
12164-33300-0C0
BEARING,CRANK PIN
€ 12.50
3-4
12164334000D0
ref: 3-4
12164-33300-0D0
BEARING,CRANK PIN
€ 11.50
4
1222043402
ref: 4
CRANKSHAFT ASSEMBLY
€ 898.50
5
0422104089
ref: 5
PIN
€ 1.50
6-1
1222943410010
ref: 6-1
12229-43400-0A0
BEARING,CRANKSHAFT
€ 9.50
6-2
1222943410020
ref: 6-2
12229-43400-0B0
BEARING,CRANKSHAFT
€ 12.00
6-3
1222943410030
ref: 6-3
12229-43400-0C0
BEARING,CRANKSHAFT
€ 10.00
6-4
1222943410040
ref: 6-4
12229-43400-0D0
BEARING,CRANKSHAFT
€ 10.50
6-5
12229434100E0
ref: 6-5
12229-43400-0E0
BEARING,CRANKSHAFT
€ 9.00
6-6
12229434100F0
ref: 6-6
12229-43400-0F0
BEARING,CRANKSHAFT
€ 10.00
6-7
12229434100G0
ref: 6-7
12229-43400-0G0
BEARING,CRANKSHAFT
€ 10.00
7-1
1222943400010
ref: 7-1
12229-43400-0A0
METAL CRANKSHAFT
€ 9.50
7-2
1222943400020
ref: 7-2
12229-43400-0B0
METAL CRANKSHAFT
€ 12.00
7-3
1222943400030
ref: 7-3
12229-43400-0C0
METAL CRANKSHAFT
€ 10.00
7-4
1222943400040
ref: 7-4
12229-43400-0D0
METAL CRANKSHAFT
€ 10.50
7-5
12229434000E0
ref: 7-5
BEARING,CRANKSHAFT,US(
€ 9.00
7-6
12229434000F0
ref: 7-6
BEARING,CRANKSHAFT,US(
€ 10.00
7-7
12229434000G0
ref: 7-7
BEARING,CRANKSHAFT,US(
€ 10.00
8-1
1222843411
ref: 8-1
PLATE,CRANK THRUST
€ 8.50
8-2
1222843412
ref: 8-2
PLATE,CRANK THRUST
€ 8.50
8-3
1222843413
ref: 8-3
PLATE,CRANK THRUST
€ 8.00
8-4
1222843414
ref: 8-4
PLATE,CRANK THRUST
€ 9.50
8-5
1222843415
ref: 8-5
BEARING,THRUST
€ 8.50
8-6
1222843416
ref: 8-6
PLATE,CRANK THRUST
€ 9.50
9
0928330047
ref: 9
OIL SEAL
€ 13.00
10-1
1211143420
ref: 10-1
PISTON (60.00MM)
€ 106.50
10-2
1211143420050
ref: 10-2
12103-43830-050
PISTON
€ 106.50
10-3
1211143420100
ref: 10-3
12103-43830-100
PISTON (61.00MM)
€ 109.00
11-1
1214043410
ref: 11-1
RING SET,PISTON
€ 58.00
11-2
1214043410050
ref: 11-2
RING SET,PISTON
€ 43.50
11-3
1214043410100
ref: 11-3
RING SET,PISTON
€ 52.00
12
1215143400
ref: 12
PIN,PISTON
€ 19.00
13
0938116002
ref: 13
09381-16001
CIRCLIP
€ 1.50
